Allegro提示有过期形状(Shape)的删除方法

在Status状态下提示有过期的形状，那如何找到并删除呢？

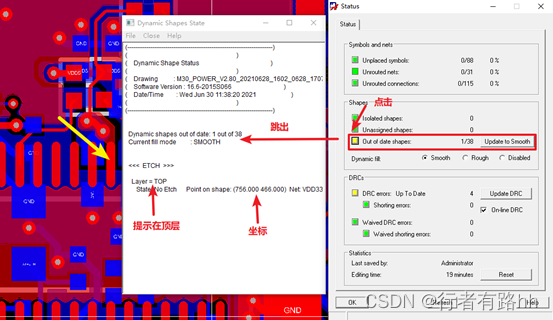

点击黄色的方框，跳出信息提示框，提示过期的形状在哪一层肯定就在哪一层，提示坐标在哪里，肯定就是在哪里有错误。

整板元素全部关闭显示，Visibility全部关闭。

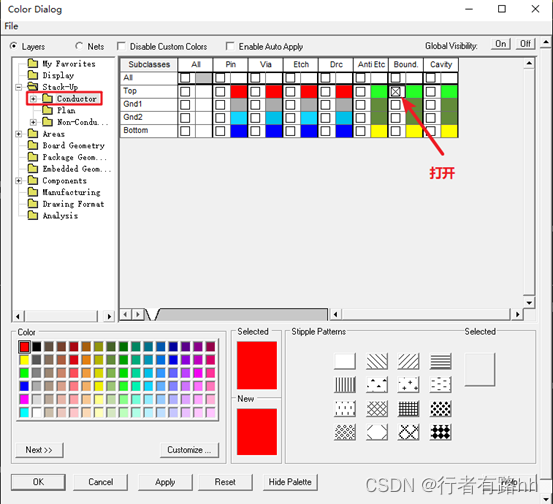

使用快捷键Alt+Ctrl+C（个人设置的快捷键）打开颜色设置对话框。选择Stack-Up→Conductor，打开Bound颜色显示，（boundary n. 边界；范围；分界线）

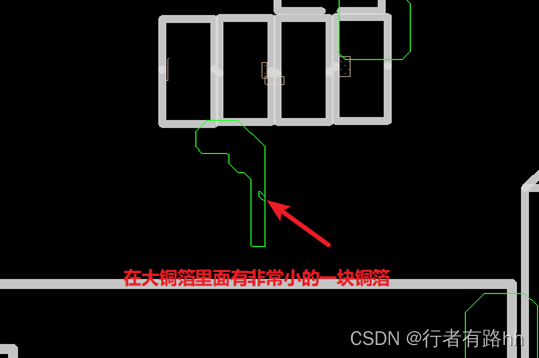

就可以看到在大铜箔里面有一块非常小的铜箔，这个是误操作留下的。删除掉即可。
