Abaqus光滑曲面/光滑表面建模：光顺操作

————————————————————抛出问题———————————————————

大家在使用ABAQUS进行 参数化建模 时，肯定会使用到如下三个关键命令：

wire = part.WirePolyLine(mergeType=SEPARATE, meshable=ON,                                     points=(A, B, A))face_edge = part.getFeatureEdges(name=wire.name)part.CoverEdges(edgeList=face_edge, tryAnalytical=True)

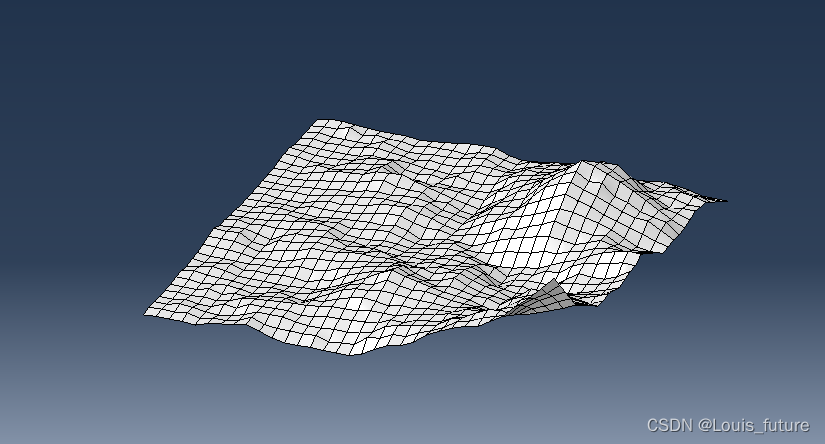

这样的命令可以生成 类  似下图所示的粗糙表面：

这样的表面不具备观赏性，我们通常需要对其进行 光  滑处理。

———————————————————— 解决 步骤———————————————————

下面是处理的步骤：

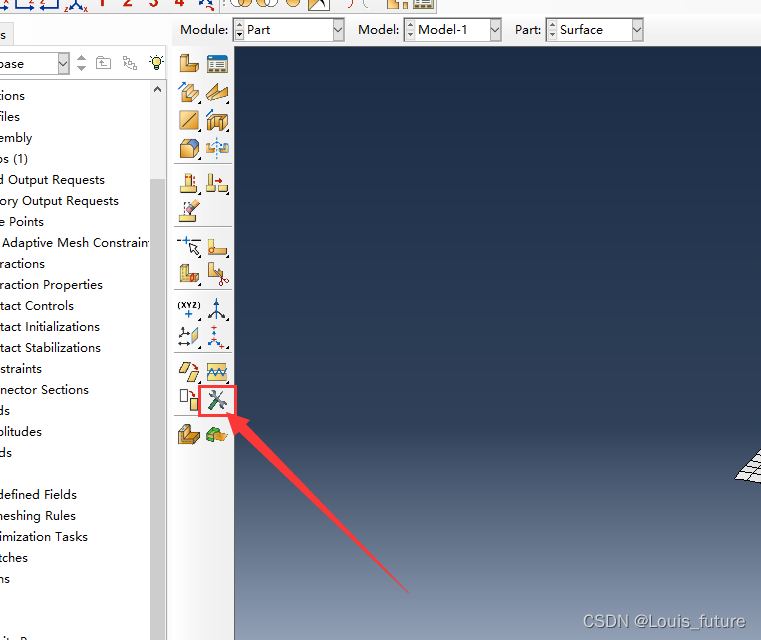

（1）点击 Part 模块的修复工具；

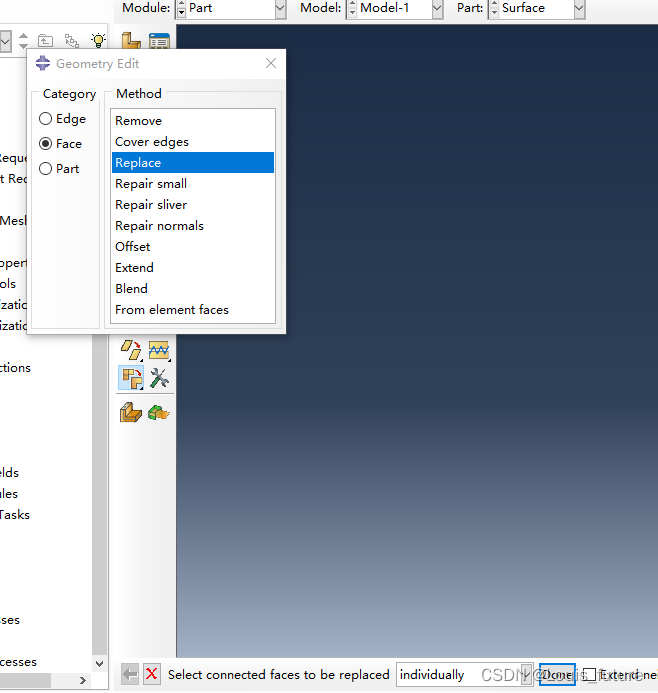

（2）选中face面操作，选择replace替换工具；

（3）选中需要光顺的面；

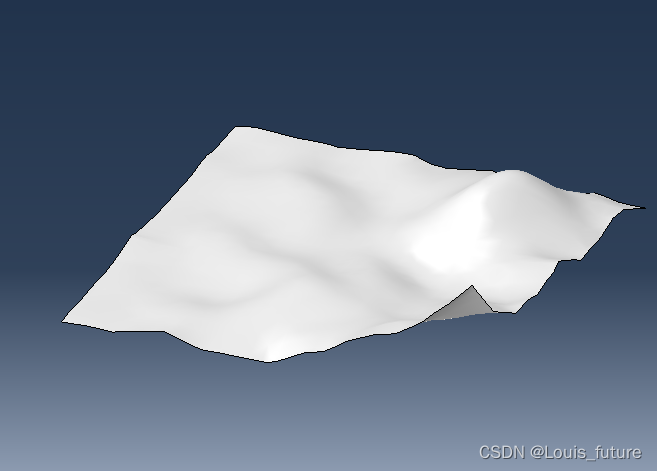

（4）单击鼠标中键，即可得到光滑后的表面。

更新，1/7/2024。最近有很多朋友私信需要这个表面在abaqus中的建模 脚本 ，我就不一一回复了，直接在文章后面附上吧，如下：

# -*- coding:utf-8 -*-# @FileName :csdn.py# @Time :1/7/2024# @Author :Louis import numpy as npfrom abaqus import *from abaqusConstants import *  def island_3D(kk, thegma_2, Hurst):    """ :param kk: Number of iterations :param thegma_2: Variance at iteration :param Hurst: Hurst index :return: X, Y, Z For drawing in matplotlib """    n = 2    Z = np.random.normal(loc=0, scale=(thegma_2) ** 0.5, size=(2, 2))    for row in range(n):        for col in range(n):            if Z[row, col] < 0:                Z[row, col] = 0            elif Z[row, col] > 0.3:                Z[row, col] = 0.3    # iteration    for k in range(1, kk + 1):        n = 2 ** k + 1        Z_1 = np.zeros((n, n))        for row in range(n):            for col in range(n):                if row % 2 == 0 and col % 2 == 0:                    Z_1[row, col] = Z[int(row / 2.0), int(col / 2.0)]                elif row % 2 == 0:                    # col is odd and row is even.                    average_col = (Z[int(row / 2.0), int(col / 2.0)] + Z[                        int(row / 2.0), int(col / 2.0) + 1]) / 2.0                    a = average_col + np.random.normal(loc=0,                                                       scale=(                        thegma_2 * (1 / 2.0) ** (2 * Hurst * k)) ** 0.5                                                       )                    if a >= 0:                        Z_1[row, col] = a                    else:                        Z_1[row, col] = 0                elif col % 2 == 0:                    # row is odd and col is even.                    average_col = (Z[int(row / 2.0) + 1, int(col / 2.0)] + Z[                        int(row / 2.0), int(col / 2.0)]) / 2.0                    a = average_col + np.random.normal(loc=0,                                                       scale=(                        thegma_2 * (1 / 2.0) ** (2.0 * Hurst * k)) ** 0.5                                                       )                    if a >= 0:                        Z_1[row, col] = a                    else:                        Z_1[row, col] = 0                else:                    average_col = (Z[int(row / 2.0), int(col / 2.0)] + Z[                        int(row / 2.0), int(col / 2.0) + 1] +                                   Z[int(row / 2.0) + 1, int(col / 2.0)] + Z[                                       int(row / 2.0) + 1, int(                                           col / 2.0) + 1]) / 4.0                    a = average_col + np.random.normal(loc=0,                                                       scale=(                        thegma_2 * (1 / 2.0) ** (Hurst * (2 * k - 1))) ** 0.5                                                       )                    if a >= 0:                        Z_1[row, col] = a                    else:                        Z_1[row, col] = 0        Z = Z_1    x = np.linspace(0, 1, n)    X, Y = np.meshgrid(x, x)    return X, Y, Z  def Creat_Surface_in_Abaqus(X, Y, Z):    """ :param X: (width, length) :param Y: (width, length) :param Z: (width, length) :return: None """    myMdb = Mdb()    part = mdb.models['Model-1'].Part(name="Surface", dimensionality=THREE_D,                                      type=DEFORMABLE_BODY)    # create surface    length, width = X.shape[1], X.shape[0]    for i in range(width - 1):        for j in range(length - 1):            A = (X[i, j], Y[i, j], Z[i, j])            B = (X[i + 1, j], Y[i + 1, j], Z[i + 1, j])            C = (X[i + 1, j + 1], Y[i + 1, j + 1], Z[i + 1, j + 1])            D = (X[i, j + 1], Y[i, j + 1], Z[i, j + 1])            wire = part.WirePolyLine(mergeType=SEPARATE, meshable=ON,                                     points=(A, B, C, D, A))            face_edge = part.getFeatureEdges(name=wire.name)            part.CoverEdges(edgeList=face_edge, tryAnalytical=True)    p = mdb.models['Model-1'].parts['Surface']    f = p.faces    # smooth surface    p.ReplaceFaces(faceList=f, stitch=True)  if __name__ == "__main__":    thegma = 0.2  # control magnitude, -0.5~0.5.    Hurst = 1.3  # control roughness, 1~2.5.    n = 4  # the number of iterations, 3~9    # create data    X, Y, Z = island_3D(n, thegma, Hurst)    # create surface    Creat_Surface_in_Abaqus(X, Y, Z)

具体参数，可以参见分形几何 教材 ，当然，代码中也附了一部分参数的常用取值。
