Adams与外部程序通信：Command Server应用

多体动力学仿真软件ADAMS可以通过Adams Command Server与外部程序进行TCP通信。首先需要打开ADAMS中的服务端，在Tool→Command Navigator中找到command_server，点击show会弹出一个图形界面的对话框。可以在对话框上点击Start Server开启服务器。如下图所示5002端口已经开启，可以通过TCP socket接收字符串指令：

由于控制或查询指令通过TCP以字符串形式发送给command server，因此客户端程序可以采用Python、C++等语言编写，只要指令是合法有效的Adams View Commands（具体语法可以参考官方文档中的Adams View Command Language Help）。外部程序发送的字符串指令主要分为两种，一种是以cmd开头的控制指令，另一种是以query开头的查询指令：

import socket

client_socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
client_socket.connect(("localhost", 5002))

# formulate valid Adams View command language that starts with the string "cmd"
cmd = "cmd point create point_name = POINT__1 location = 10 , 15 , 10 relative_to = ground "
client_socket.send(cmd)

# receives feedback from the server. The server responds with the string "cmd: 0" for successful command processing
response = client_socket.recv(1024)

print response# Returns:  cmd: 0 (on success) cmd: 1 (error detected in View command)

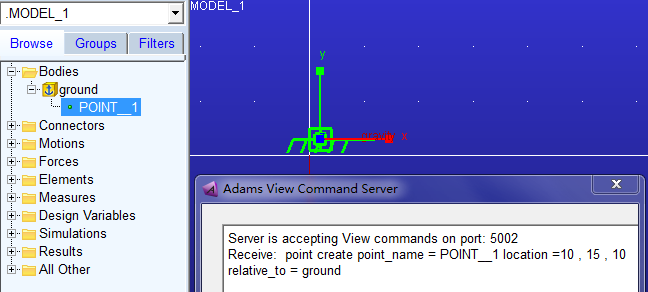

cmd指令在相对于ground的(10, 15, 10)位置处创建了一个点，命名为POINT_1：

发送指令后收到cmd:0，说明指令执行成功

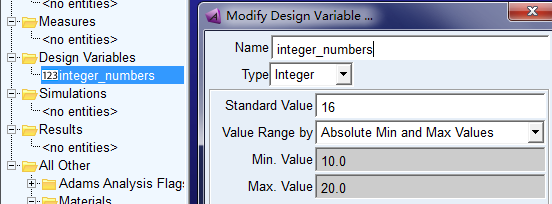

连续发送多条控制指令时必须通过新建的socket，下面代码创建了一个整型设计变量integer_numbers，然后又将其指改为16：

import socket
import time

cmds = ["cmd variable create variable_name=integer_numbers integer_value=12 range=10,20",
        "cmd variable set variable_name=integer_numbers integer_value=16"]

# Each command must be sent to the server over a new socket
for cmd in cmds:
    client_socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    start_time = time.time()
    dt = time.time() - start_time
    while dt < 60:    # wait for a new server connection:
        dt = time.time() - start_time
        try:
            client_socket.connect(("localhost", 5002))
            break
        except socket.error:
             pass

    print "Connected to socket, sending cmd: %s" % cmd
    client_socket.send(cmd)
    data = client_socket.recv(1024)
    print "Response from cmd was: %s" % data

• Issuing Queries

下面代码查询了零件PART_2的位置信息：

import socket

# create a socket & connect to the proper port/host
client_socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
client_socket.connect(("localhost", 5002))

# queries must always start with the string "query" followed by an Adams View expression
the_query = "query part_2.location"
client_socket.send(the_query)

# server replies with a description of the data
query_description = client_socket.recv(1024)   # Description of result:  query: float : 3 : 12

# server waits for an "OK" command before sending the actual data
client_socket.send("OK")
query_data = client_socket.recv(1024)          # accepts the actual server data


# parse query data based on type:
description_list = query_description.split(':')
data_type = description_list[1]
data_length = int(description_list[2])
data_bytes = int(description_list[3])

print "Query returned %i values of data type %s" % (data_length, data_type)
print "Query data as a string is: %s" % query_data

输出如下：
