NXLC（NX Laminate Composites）前后处理介绍：求解与后处理步骤详解

Lesson_6_Solution_Post_Process.pdf

本节内容首先介绍了使用Nastran作为求解器的特点及部分选项介绍，其二是NX后处理的主要操作及主要显示功能。另外，还例举了两个案例，thick laminated support和卫星天线的结构分析

主要的介绍部分如下：

（1）Nastran solver properties- Laminate

       What’s the Difference between PCOMP and PCOMPG?

Nastran laminate export options for PCOMP , PCOMPG and PSHELL cards

（2）Nastran solver properties

Solid Laminate

Homogeneous Properties for 3D Laminates

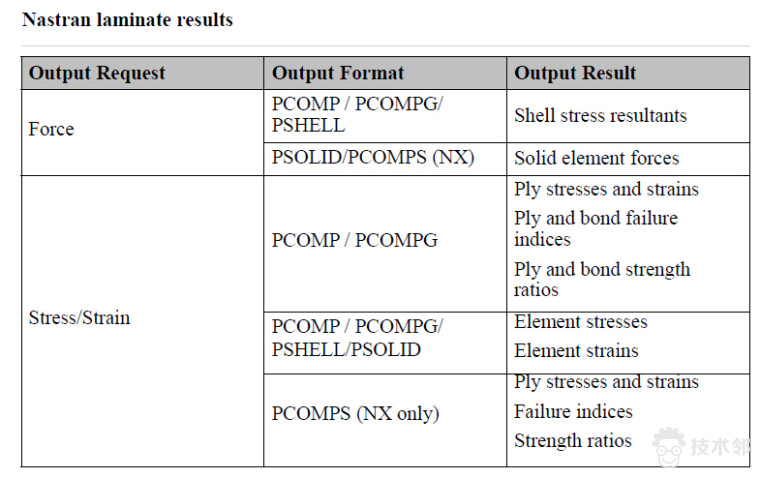

（3）Nastran laminate results

（4）NXLC Advanced post reporting of laminate results

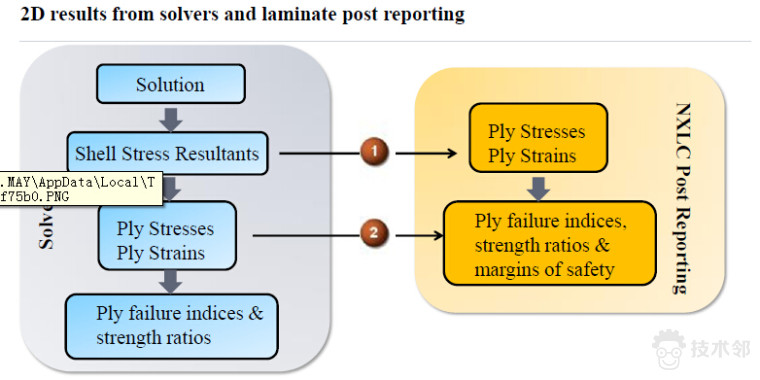

       2D results from solvers and laminate post reporting

       3D results from solvers and laminate post reporting

（5）Laminate graphical report

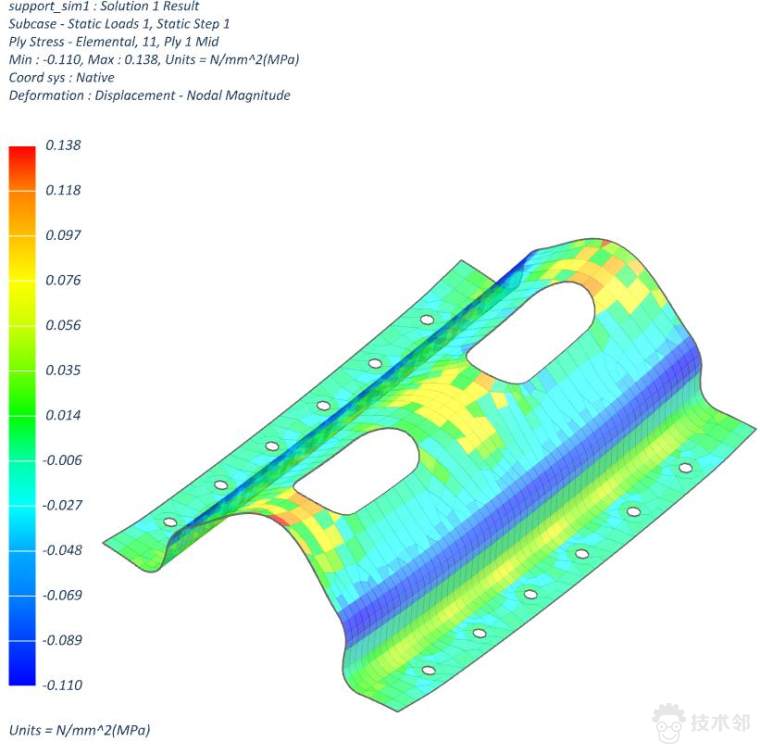

Activity: Structural analysis of a thick laminated support

Activity: Structural analysis of a satellite antenna
