在搭建神经网络中，需要通过训练集训练搭建的神经网络，训练完成后需要通过验证集测试我们神经网络训练的效果。
总体流程如下图所示：
登录后复制
代码流程：
1、获取数据【x：特征 y：标签】
2、将数据转为tf格式，并将特征和标签配对做batch
3、确定神经网络层数，并初始化神经网络参数w,b,学习率，轮次等
4、循环将数据开始训练。记录loss，每隔20步打印训练的loss信息
5、预测结果，将6*6，每0.01步长的数据喂入模型测试结果，
6、读入红蓝点，画出分割线，不包含正则化

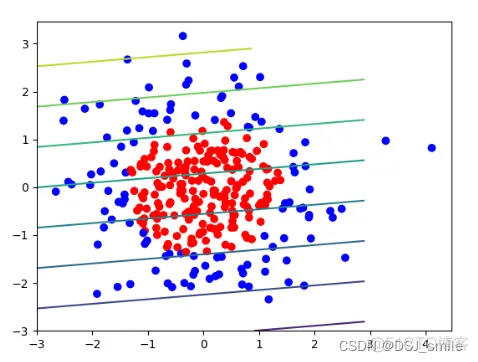

如果采用单层神经网络，没有激活函数，对于边界是非直线分类的问题，则无法拟合，且单层神经网络不收敛，无法找到边界线，
登录后复制
import tensorflow as tf
from matplotlib import pyplot as plt
import numpy as np
import pandas as pd
# 1、获取数据【x：特征 y：标签】
df = pd.read_csv('../class2/dot.csv')
x_data = np.array(df[['x1', 'x2']])
y_data = np.array(df['y_c'])
# 垂直(行)按顺序堆叠数组
x_train = np.vstack(x_data).reshape(-1, 2)
y_train = np.vstack(y_data).reshape(-1, 1)
Y_c = [['red' if y else 'blue'] for y in y_train]
# 2、将数据转为tf格式，并将特征和标签配对做batch
x_train = tf.cast(x_train, dtype=tf.float32)
y_train = tf.cast(y_train, dtype=tf.float32)
train_db = tf.data.Dataset.from_tensor_slices((x_train, y_train)).batch(32)
# 3、确定神经网络层数，并初始化神经网络参数w,b,学习率，轮次等
# 如果是单层神经网络，
w1 = tf.Variable(tf.random.normal([2, 1]), dtype=tf.float32)
b1 = tf.Variable(tf.constant(0.01, shape=[1]))
lr = 0.005
epoch = 800
# 4、循环将数据开始训练。记录loss，每隔20步打印训练的loss信息
for epoch in range(epoch):
for step, (x_train, y_train) in enumerate(train_db):
with tf.GradientTape() as tape:
y_ = tf.matmul(x_train, w1) + b1
# y_ = tf.nn.relu(y_)
loss = tf.reduce_mean(tf.square(y_train - y_))
variables = [w1, b1]
grads = tape.gradient(loss, variables)
w1.assign_sub(lr * grads[0])
b1.assign_sub(lr * grads[1])
if epoch % 20 == 0:
print('epoch:', epoch, 'loss:', float(loss))
# 5、预测结果，将6*6，每0.01步长的数据喂入模型测试结果，
print("*******predict*******")
# xx在-3到3之间以步长为0.01，yy在-3到3之间以步长0.01,生成间隔数值点
xx, yy = np.mgrid[-3:3:.1, -3:3:.1]
grid = np.c_[xx.ravel(), yy.ravel()] # 连接两个矩阵
grid = tf.cast(grid, tf.float32)
probs = []
for x_test in grid:
y_ = tf.matmul([x_test], w1) + b1
# y_ = tf.nn.relu(y_)
probs.append(y_)
x1 = x_data[:, 0]
x2 = x_data[:, 1]
probs = np.array(probs).reshape(xx.shape)
plt.scatter(x1, x2, color=np.squeeze(Y_c))
plt.contour(xx, yy, probs)
plt.show()

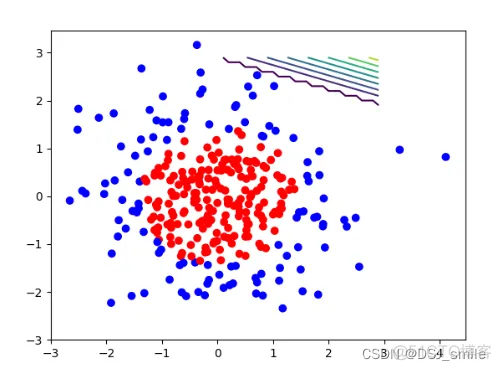

如果加入激活函数relu函数，直线发生了弯曲，但仍不能拟合，同时该神经网络也不收敛，无法找到边界
登录后复制
# 1、获取数据【x：特征 y：标签】
df = pd.read_csv('../class2/dot.csv')
x_data = np.array(df[['x1', 'x2']])
y_data = np.array(df['y_c'])
# 垂直(行)按顺序堆叠数组
x_train = np.vstack(x_data).reshape(-1, 2)
y_train = np.vstack(y_data).reshape(-1, 1)
Y_c = [['red' if y else 'blue'] for y in y_train]
# 2、将数据转为tf格式，并将特征和标签配对做batch
x_train = tf.cast(x_train, dtype=tf.float32)
y_train = tf.cast(y_train, dtype=tf.float32)
train_db = tf.data.Dataset.from_tensor_slices((x_train, y_train)).batch(32)
# 3、确定神经网络层数，并初始化神经网络参数w,b,学习率，轮次等
# 输入层为2个神经元，隐藏层为11个神经元，1层隐藏层，输出层为1个神经元
w1 = tf.Variable(tf.random.normal([2, 11]), dtype=tf.float32)
b1 = tf.Variable(tf.constant(0.01, shape=[11]))
w2 = tf.Variable(tf.random.normal([11, 1]), dtype=tf.float32)
b2 = tf.Variable(tf.constant(0.01, shape=[1]))
lr = 0.005
epoch = 800
# 4、循环将数据开始训练。记录loss，每隔20步打印训练的loss信息
for epoch in range(epoch):
for step, (x_train, y_train) in enumerate(train_db):
with tf.GradientTape() as tape:
y_ = tf.matmul(x_train, w1) + b1
# y_ = tf.nn.relu(y_)
y_ = tf.matmul(y_, w2) + b2
loss = tf.reduce_mean(tf.square(y_train - y_))
variables = [w1, b1, w2, b2]
grads = tape.gradient(loss, variables)
w1.assign_sub(lr * grads[0])
b1.assign_sub(lr * grads[1])
w2.assign_sub(lr * grads[2])
b2.assign_sub(lr * grads[3])
if epoch % 20 == 0:
print('epoch:', epoch, 'loss:', float(loss))
# 5、预测结果，将6*6，每0.01步长的数据喂入模型测试结果，
print("*******predict*******")
# xx在-3到3之间以步长为0.01，yy在-3到3之间以步长0.01,生成间隔数值点
xx, yy = np.mgrid[-3:3:.1, -3:3:.1]
grid = np.c_[xx.ravel(), yy.ravel()] # 连接两个矩阵
grid = tf.cast(grid, tf.float32)
probs = []
for x_test in grid:
y_ = tf.matmul([x_test], w1) + b1
# y_ = tf.nn.relu(y_)
y_ = tf.matmul(y_, w2) + b2
probs.append(y_)
x1 = x_data[:, 0]
x2 = x_data[:, 1]
# 6、读入红蓝点，画出分割线，不包含正则化
probs = np.array(probs).reshape(xx.shape)
plt.scatter(x1, x2, color=np.squeeze(Y_c))
plt.contour(xx, yy, probs, levels=[.5])
plt.show()

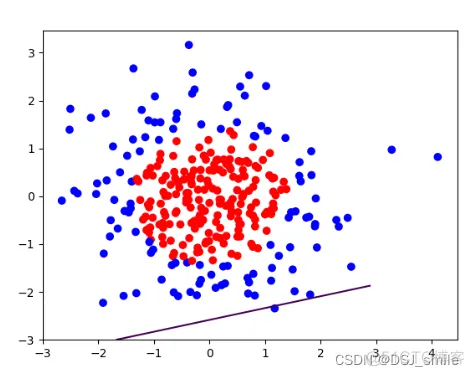

使用两层神经网络，模型收敛，可以找到边界，但无法拟合，训练效果很差

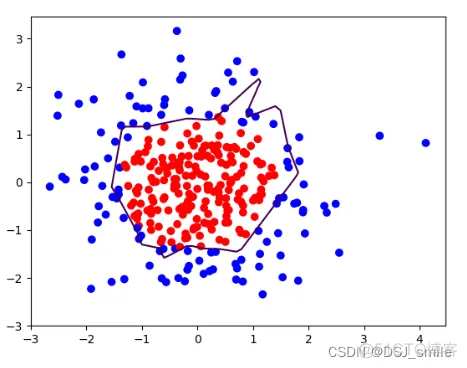

两层神经网络，增加激活函数，发生过拟合
登录后复制
# 1、获取数据【x：特征 y：标签】
df = pd.read_csv('../class2/dot.csv')
x_data = np.array(df[['x1', 'x2']])
y_data = np.array(df['y_c'])
# 垂直(行)按顺序堆叠数组
x_train = np.vstack(x_data).reshape(-1, 2)
y_train = np.vstack(y_data).reshape(-1, 1)
Y_c = [['red' if y else 'blue'] for y in y_train]
# 2、将数据转为tf格式，并将特征和标签配对做batch
x_train = tf.cast(x_train, dtype=tf.float32)
y_train = tf.cast(y_train, dtype=tf.float32)
train_db = tf.data.Dataset.from_tensor_slices((x_train, y_train)).batch(32)
# 3、确定神经网络层数，并初始化神经网络参数w,b,学习率，轮次等
# 输入层为2个神经元，隐藏层为11个神经元，1层隐藏层，输出层为1个神经元
w1 = tf.Variable(tf.random.normal([2, 11]), dtype=tf.float32)
b1 = tf.Variable(tf.constant(0.01, shape=[11]))
w2 = tf.Variable(tf.random.normal([11, 1]), dtype=tf.float32)
b2 = tf.Variable(tf.constant(0.01, shape=[1]))
lr = 0.005
epoch = 800
# 4、循环将数据开始训练。记录loss，每隔20步打印训练的loss信息
for epoch in range(epoch):
for step, (x_train, y_train) in enumerate(train_db):
with tf.GradientTape() as tape:
y_ = tf.matmul(x_train, w1) + b1
# 增加激活函数
y_ = tf.nn.relu(y_)
y_ = tf.matmul(y_, w2) + b2
loss = tf.reduce_mean(tf.square(y_train - y_))
variables = [w1, b1, w2, b2]
grads = tape.gradient(loss, variables)
w1.assign_sub(lr * grads[0])
b1.assign_sub(lr * grads[1])
w2.assign_sub(lr * grads[2])
b2.assign_sub(lr * grads[3])
if epoch % 20 == 0:
print('epoch:', epoch, 'loss:', float(loss))
# 5、预测结果，将6*6，每0.01步长的数据喂入模型测试结果，
print("*******predict*******")
# xx在-3到3之间以步长为0.01，yy在-3到3之间以步长0.01,生成间隔数值点
xx, yy = np.mgrid[-3:3:.1, -3:3:.1]
grid = np.c_[xx.ravel(), yy.ravel()] # 连接两个矩阵
grid = tf.cast(grid, tf.float32)
probs = []
for x_test in grid:
y_ = tf.matmul([x_test], w1) + b1
# 增加激活函数
y_ = tf.nn.relu(y_)
y_ = tf.matmul(y_, w2) + b2
probs.append(y_)
x1 = x_data[:, 0]
x2 = x_data[:, 1]
# 6、读入红蓝点，画出分割线，不包含正则化
probs = np.array(probs).reshape(xx.shape)
plt.scatter(x1, x2, color=np.squeeze(Y_c))
plt.contour(xx, yy, probs, levels=[.5])
plt.show()

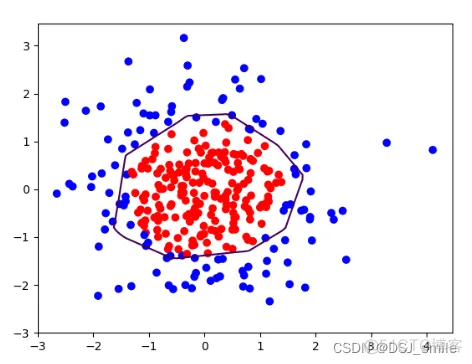

缓解了过拟合现象
登录后复制
# 1、获取数据【x：特征 y：标签】
df = pd.read_csv('../class2/dot.csv')
x_data = np.array(df[['x1', 'x2']])
y_data = np.array(df['y_c'])
# 垂直(行)按顺序堆叠数组
x_train = np.vstack(x_data).reshape(-1, 2)
y_train = np.vstack(y_data).reshape(-1, 1)
Y_c = [['red' if y else 'blue'] for y in y_train]
# 2、将数据转为tf格式，并将特征和标签配对做batch
x_train = tf.cast(x_train, dtype=tf.float32)
y_train = tf.cast(y_train, dtype=tf.float32)
train_db = tf.data.Dataset.from_tensor_slices((x_train, y_train)).batch(32)
# 3、确定神经网络层数，并初始化神经网络参数w,b,学习率，轮次等
# 输入层为2个神经元，隐藏层为11个神经元，1层隐藏层，输出层为1个神经元
w1 = tf.Variable(tf.random.normal([2, 11]), dtype=tf.float32)
b1 = tf.Variable(tf.constant(0.01, shape=[11]))
w2 = tf.Variable(tf.random.normal([11, 1]), dtype=tf.float32)
b2 = tf.Variable(tf.constant(0.01, shape=[1]))
lr = 0.005
epoch = 800
# 4、循环将数据开始训练。记录loss，每隔20步打印训练的loss信息
for epoch in range(epoch):
for step, (x_train, y_train) in enumerate(train_db):
with tf.GradientTape() as tape:
h1 = tf.matmul(x_train, w1) + b1
# 增加激活函数
h1 = tf.nn.relu(h1)
y_ = tf.matmul(h1, w2) + b2
loss_mse = tf.reduce_mean(tf.square(y_train - y_))
# 添加l2正则化
loss_regularization = []
# tf.nn.l2_loss(w)=sum(w ** 2) / 2
loss_regularization.append(tf.nn.l2_loss(w1))
loss_regularization.append(tf.nn.l2_loss(w2))
# 求和
# 例：x=tf.constant(([1,1,1],[1,1,1]))
# tf.reduce_sum(x)
# >>>6
loss_regularization = tf.reduce_sum(loss_regularization)
loss = loss_mse + 0.03 * loss_regularization
variables = [w1, b1, w2, b2]
grads = tape.gradient(loss, variables)
w1.assign_sub(lr * grads[0])
b1.assign_sub(lr * grads[1])
w2.assign_sub(lr * grads[2])
b2.assign_sub(lr * grads[3])
if epoch % 20 == 0:
print('epoch:', epoch, 'loss:', float(loss))
# 5、预测结果，将6*6，每0.01步长的数据喂入模型测试结果，
print("*******predict*******")
# xx在-3到3之间以步长为0.01，yy在-3到3之间以步长0.01,生成间隔数值点
xx, yy = np.mgrid[-3:3:.1, -3:3:.1]
grid = np.c_[xx.ravel(), yy.ravel()] # 连接两个矩阵
grid = tf.cast(grid, tf.float32)
probs = []
for x_test in grid:
h1 = tf.matmul([x_test], w1) + b1
# 增加激活函数
h1 = tf.nn.relu(h1)
y_ = tf.matmul(h1, w2) + b2
probs.append(y_)
x1 = x_data[:, 0]
x2 = x_data[:, 1]
# 6、读入红蓝点，画出分割线，不包含正则化
probs = np.array(probs).reshape(xx.shape)
plt.scatter(x1, x2, color=np.squeeze(Y_c))
plt.contour(xx, yy, probs, levels=[.5])
plt.show()
