FPGA编程实践：8个LED灯以0.5秒间隔闪烁设计

跑马灯的逻辑代码

module led_run(
    Clk,
    Reset_n,
    Led
);
    input Clk;
    input Reset_n;
    output reg [7:0]Led;

    reg [24:0]counter;

    parameter MCNT =25'd24999999;

    always@(posedge Clk or negedge Reset_n)
    if(!Reset_n)
        counter <=0;
    else if(counter == MCNT)
        counter <=0;
    else
        counter <= counter +1'd1;
    always@(posedge Clk or negedge Reset_n)
    if(!Reset_n)
        Led <=8'b0000_0001;
    else if(counter == MCNT)begin
        if (Led == 8'b1000_0000)
            Led <=8'b0000_0001;
        else
            Led <=Led <<1;

        //Led <= {Led[6:0],Led[7]};
    end
    else
        Led <= Led;

endmodule

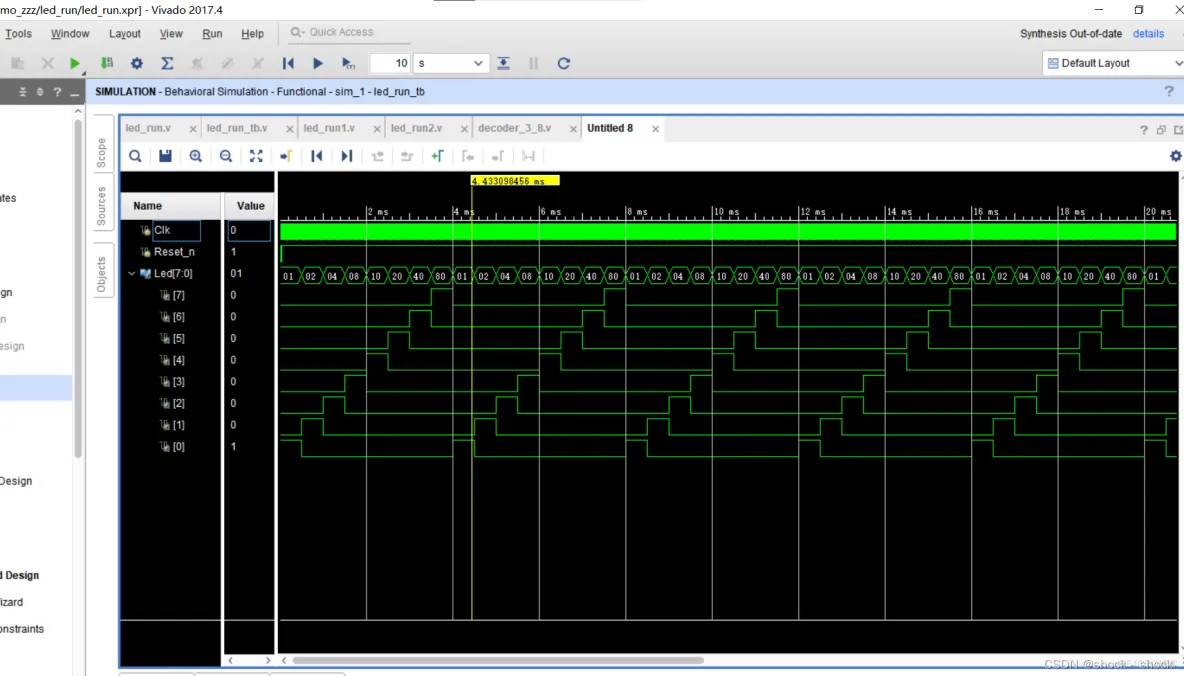

仿真代码

`timescale 1ns/1ns

module led_run_tb;
    reg Clk;
    reg Reset_n;
    wire [7:0]Led;

    led_run
    led_run_ints0(
        .Clk(Clk),
        .Reset_n(Reset_n),
        .Led(Led)
    );
    defparam led_run_ints0.MCNT=24999;

    initial Clk =1;
    always #10 Clk =!Clk;

    initial begin
        Reset_n = 0;
        #201;
        Reset_n=1;
        #40000000;
        $stop;
    end
endmodule
