ANSYS知识普及:螺栓法兰连接的接触分析技巧

本人准备出一个ANSYS知识普及系列,将有用的网上资料归拢,由于知识水平有限,不对之处请谅解。也欢迎各位网友**好的资料分享,让我们共同完成这个ANSYS知识普及系列。

编辑人:技术邻ANSYS专家

业务咨询网址:http://www.jishulink.com/content/other/402981

从<ANSYS 高级工程有限元分析范例**>这本书中打了这个命令流,比较匆忙,没写注释,大家帮忙补充一下吧,也许有用
*set,rad_i,1250/2
*set,rad_pani,705
*set,rad_o,2450/2
*set,rad_pano,1830
*set,rad_b,180/2
*set,m_bolt,160
*set,m_bh1,350+170+50
*set,m_bh2,350+170+250
*set,m_nut,280/2
*set,h_nut,170
*set,rad_drill,2140/2
*set,rad_m,750+150
*set,h_m,18
*set,rad_bi,1950/2
*set,rad_bo,2330/2
*set,rad_bh,5
*set,f_rad,45
*set,fh_rad,1855/2
*set,r_fillt,125
*set,n,15
*set,key_w,290
*set,key_h,130
*set,th,200
*set,flang_h1,350
*set,flang_h2,350
*set,h_shaft,350+490
*set,h_sh,H_shaft+500
*set,pi,acos(-1)
*set,elemsize,60
/graphics,power
*set,disp_b,0.75
*set,zmax,h_sh
*set,f_ext,22.9215e+5*12
*set,f_eef,30.827e+5*12
*set,r_out,rad_pano
*set,t_w,375
*set,u_r,r_out-t_w
/prep7
et,1,185
mp,ex,1,2.06e5
mp,nuxy,1,0.29
mp,dens,1,7.85e-9
mp,ex,2,2.06e5
mp,nuxy,2,0.29
mp,dens,2,7.85e-9
mp,ex,3,2.06e5
mp,nuxy,3,0.29
mp,dens,3,7.85e-9
mp,mu,4,0.15
k,1,rad_i,0,h_m
k,2,rad_m,0,0
k,3,rad_i+th
k,4,rad_o,
k,5,rad_o,0,flang_h1
k,6,rad_m,0,flang_h1
k,7,rad_i+th,0,flang_h1
k,8,rad_i+th,0,h_shaft
k,9,rad_i,0,h_shaft
k,10,rad_i,0,flang_h1
k,11,rad_m,0,H_M
k,12,rad_i+th,0,H_sh
k,13,rad_i,0,h_sh
k,14,rad_bi,0,rad_bh
k,15,rad_bo,0,rad_bh
k,16,rad_bi
k,17,rad_bo
k,18,rad_bi,0,flang_h1
k,19,rad_bo,0,flang_h1
k,20,rad_i+th+f_rad,0,flang_h1
k,21,fh_rad
k,22,fh_rad,0,flang_h1+h_shaft
k,23,fh_rad,0,flang_h1
l,8,20
l,20,5
l,21,22
lfillt,1,2,125
lstr,1,10
lstr,10,9
lstr,9,13
lstr,13,12
lstr,12,8
lstr,8,9
lstr,8,24
lstr,1,11
lstr,11,2
lstr,2,21
lstr,21,4
lstr,4,5
lstr,10,23
lstr,5,23
lptn,all
al,7,8,9,10
al,1,22,21,16,6,10
al,5,11,12,13,18,16
a,5,4,21,23
alls
lsla
lsel,invert
ldele,all
ksll
ksel,invert
kdele,all
APLOT
alls
csys,1
kgen,2,1,,,,n,,,0
l,1,3
vdrag,all,,,,,,2
csys,0
cyl4,,,rad_bi,,rad_bo,,rad_bh
v***v,4,5
cyl4,rad_drill,0,rad_b,,,,flang_h1+100
csys,1
vgen,,4,,,,n,,,,1
v***v,6,4
wpro,n,,
csys,4
vsymm,y,all,,,,0,0
wpro,-n,,
csys,0
rectng,0,rad_o+100,0,key_w/2
vsel,all
aslv
asel,invert
vext,all,,,0,0,key_h
alls
vptn,all
vdele,11,,,1
vdele,12,,,1
vdele,15,,,1
vdele,16,,,1
vdele,18,,,1
wpoff,0,key_w/2,0
wpro,,90
v***w,all
wpcsys,-1,0
wpoff,0,0,key_h
v***w,all
wpcsys,-1,0
csys,0
cyl4,,,rad_bi,,rad_bo,,flang_h1
vptn,all
vdele,33,,,1
wpoff,0,0,rad_bh
v***w,all
wpoff,0,0,-rad_bh
cylind,rad_pani,rad_pano,0,-flang_h2,0,2*n
cyl4,rad_drill,0,rad_b,,,,flang_h2+100
csys,1
vgen,,16,,,,n,-flang_h2,,,1
v***v,15,16
vsel,s,loc,z,0,h_sh+100
cm,shaft,volu
alls
vsel,s,loc,z,0,-flang_h2-100
cm,pan,volu
alls
esize,elemsize,0,
mat,1
cmsel,,shaft
vsweep,all
mat,2
alls
cmsel,,pan
vsweep,all
alls
cmsel,,shaft
aslv
lsla
ksll
wpro,2*n,,
csys,1
cmsel,u,pan
vsel,r,loc,y,n,2*n
csys,4
vsymm,y,all,,,,0,0
wpro,n,,
vsel,s,loc,z,0,h_sh+100
vsymm,y,all,,,,0,0
eslv
nsle
nummrg,kp
nummrg,node
alls
wpcsys,-1,0
cmsel,,pan
aslv
lsla
ksll
wpro,2*n
csys,4
vsymm,y,all,,,,0,0
wpro,2*n
csys,4
csys,1
vsel,r,loc,y,2*n,4*n
csys,4
vsymm,y,all,,,,0,0
alls
wpcsys,-1,0
vsel,s,loc,z,0,-flang_h2-100
aslv
lsla
ksll
eslv
nsle
nummrg,kp
nummrg,node
vsel,s,loc,z,0,h_sh+100
cm,shaft,volu
alls
vsel,s,loc,z,0,-flang_h2-100
cm,pan,volu
alls
csys,0
cylind,m_bolt/2,,m_bh1,-m_bh2,0,360
rpr4,6,,,m_nut,2*n,h_nut
vgen,,95,,,,,flang_h1,,,1
vgen,2,95,,,,,-flang_h2-flang_h1-h_nut,,0
cmsel,u,pan
cmsel,u,shaft
vptn,all
cm,b_temp,volu
vgen,,all,,,rad_drill,,,,,1
csys,1
vgen,,all,,,,n,,,,1
mat,3
esize,elemsize/2,0,
vsweep,all
vgen,4,all,,,,n*2,,,0
vclear,b_temp
vdele,b_temp
vgen,,all,,,,-n*2,,,,1
cm,bvolu,volu
alls
psmesh,1,b100,,volu,95,0,z,0,,,,b_100
psmesh,2,b200,,volu,116,0,z,0,,,,b_200
psmesh,3,b300,,volu,109,0,z,0,,,,b_300
cmsel,r,shaft
aslv
asel,r,loc,z,0
cm,as_con,area
alls
cmsel,r,pan
aslv
asel,r,loc,z,0
cm,ap_tar,area
alls
/com,contact pair creation -start
mat,4
r,3
real,3
et,3,170
et,4,174
keyopt,4,9,0
cmsel,s,ap_tar
type,3
nsla,s,1
esln,s,0
esurf,all
alls
cmsel,s,as_con
type,4
nsla,s,1
esln,s,0
esurf,all
allsel
cmsel,r,bvolu
aslv
asel,r,loc,z,flang_h1
cm,ab1_con,area
alls
cmsel,r,shaft
aslv
asel,r,loc,z,flang_h1
csys,1
asel,r,loc,x,fh_rad,rad_o
csys,0
cm,abs_tar,area
alls
/com, contact pair creation - start
mat,4
r,4
real,4
et,5,170
et,6,174
keyopt,5,9,0
cmsel,s,abs_tar
type,5
nsla,s,1
esln,s,0
esurf,all
alls
cmsel,s,ab1_con
type,6
nsla,s,1
esln,s,0
esurf,all
allsel
/com, contact pair creation - end
cmsel,r,bvolu
aslv
asel,r,loc,z,-flang_h2
cm,ab2_con,area
alls
cmsel,r,pan
aslv
asel,r,loc,z,-flang_h2
cm,abp_tar,area
alls
/com, contact pair creation - start
mat,4
r,5
real,5
et,7,170
et,8,174
keyopt,7,9,0
cmsel,s,abp_tar
type,7
nsla,s,1
esln,s,0
esurf,all
alls
cmsel,s,ab2_con
type,8
nsla,s,1
esln,s,0
esurf,all
allsel
/com, contact pair creation - end

/SOL
alls
lsclear,all
antype,0
autots,1
nsubst,25,100,1
outres,all,all
eqslv,pcg,1e-8
time,15
csys,1
asel,s,loc,y,0
da,all,symm
alls
asel,s,loc,y,90
da,all,symm
alls
sload,1,9,lock,disp,disp_b,1,2
sload,2,9,lock,disp,disp_b,1,2
sload,3,9,lock,disp,disp_b,1,2
cmsel,s,pan
nslv,r,1
nsel,r,loc,z,0
csys,1
nsel,r,loc,x,u_r,r_out
d,all,all
alls
***ctran
lswrite,1
lswrite,2
nsel,s,loc,z,zmax-1,zmax+10
*get,nload,node,,count
f,all,fz,f_ext/nload/4
alls
lswrite,3
lssolve,1,3,1

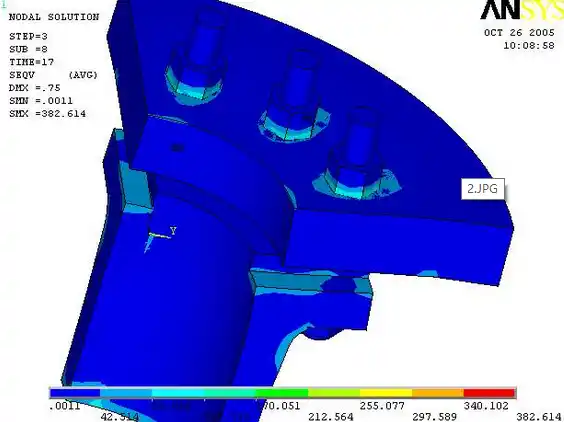

/post
set,last
plnsol,s,eqv,0,1
