Allegro 3D效果显示

1， Set 3D view condtion

教你用Allegro制作3D电路板效果图-电子发烧友网

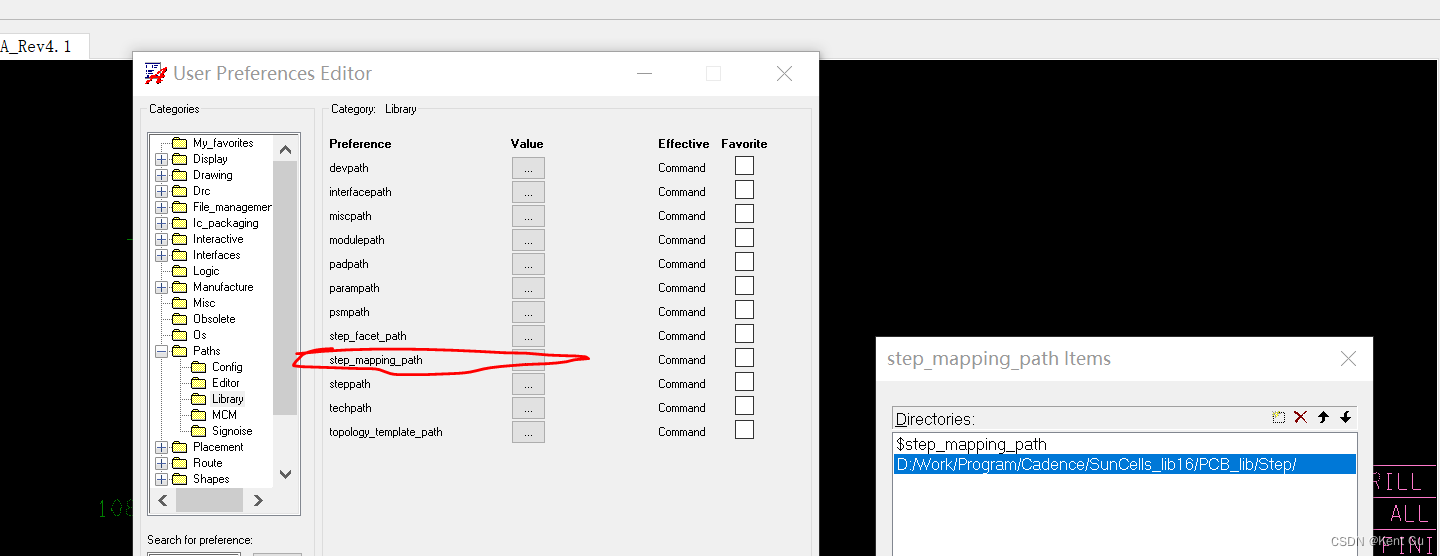

 1.1 Setup/preference/library/path/steppath, now I select parts step library path, step folder(注意step 文件夹放在第一个位置）

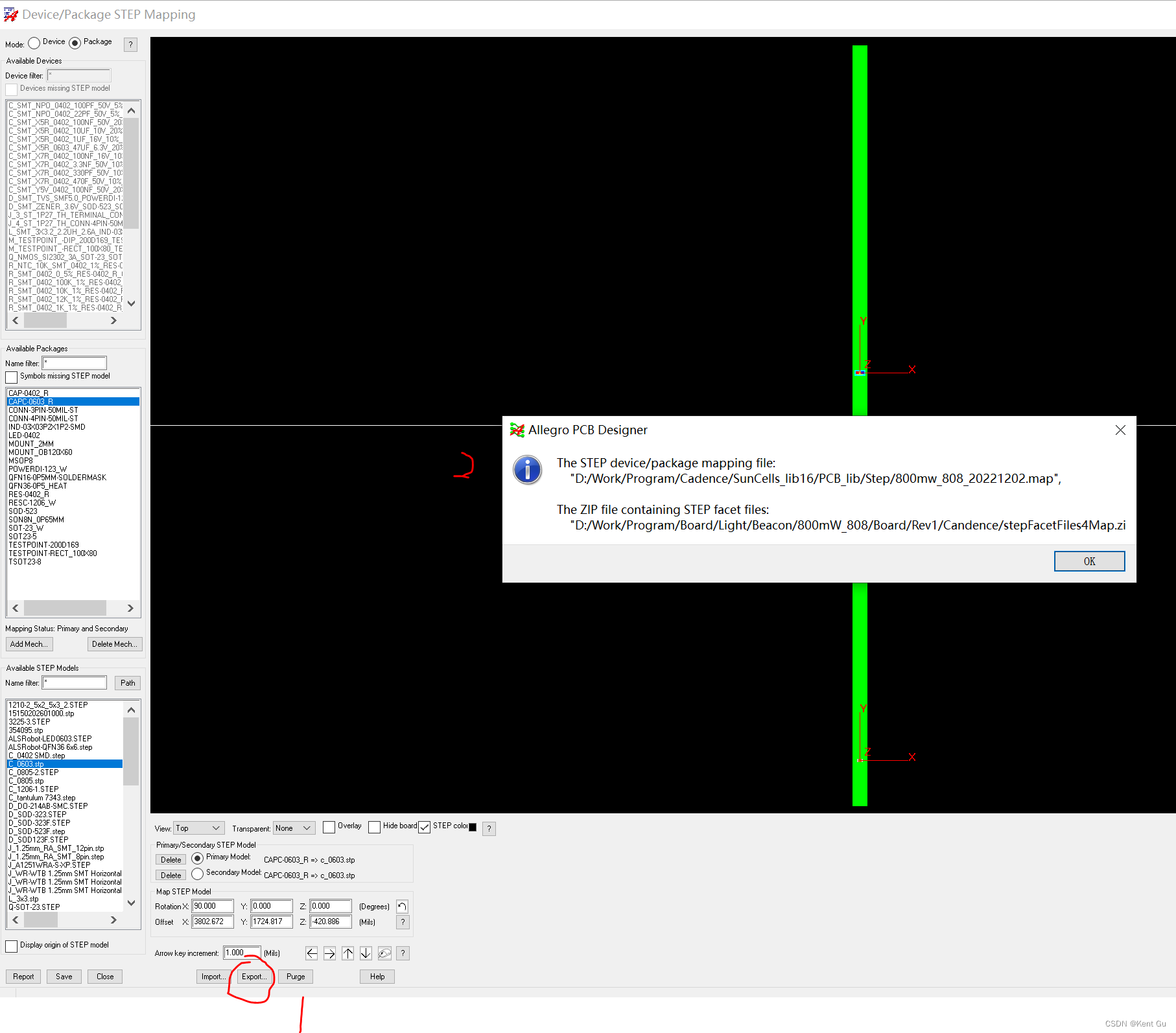

  1.2 Setup/Step Package Mapping , connect pcb package and step files, to creat *.xml file such as 800mw_808_20221202.map file（关联文件，文件夹放在第一个位置）

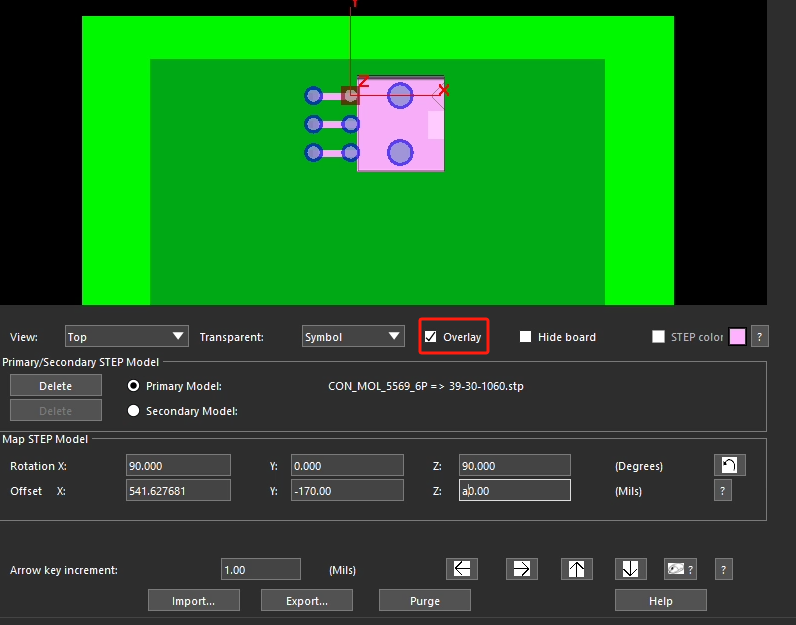

  1.3, Setup/Paths/Library/Step_facet_path, stepFacetFiles4Map folder with *.xml（配置文件，如角度，offset，文件夹放在第一个位置）

  1.4 View/3D view,

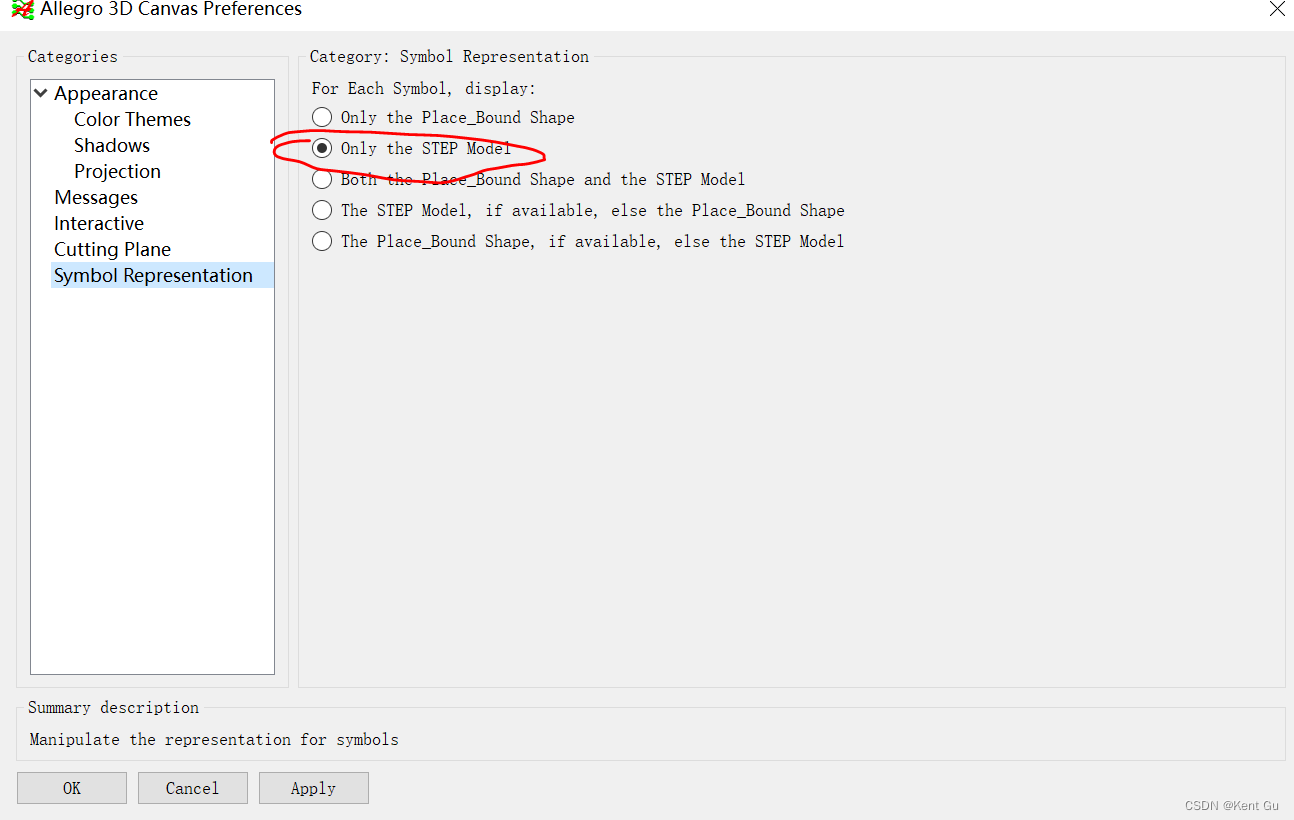

   1.5 3D view setting,  Allegro 3D Canvas  \Prefrerence to select step or plance bound

1.6. Re-open Allegro file after setting, to take effect

2 3D model path

https://www.3dcontentcentral.com/

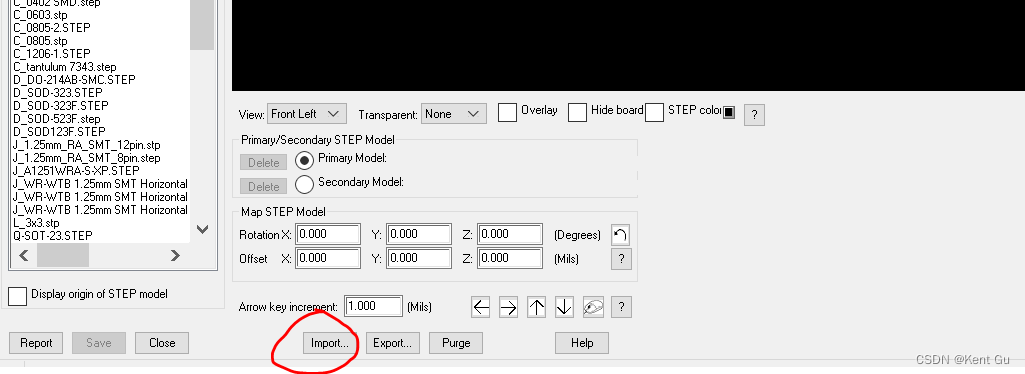

Setup//Step Package Mapping, to import or set map file

3. 3D files rules import or export.

3. 导出3D图

       1. View/3D cavas, 然后在新的窗口中，File\Export in stp type

4. 导出2D

       1. 设置mm unit

       2. File\Export\dxf(Board outline, ref, pin

               -select name

               - edit   layer
