tensorflow yolov3只检测行人

官方给的模型可以检测80多个类别，这里我们只检测行人，就需要将代码进行稍微修改即可：

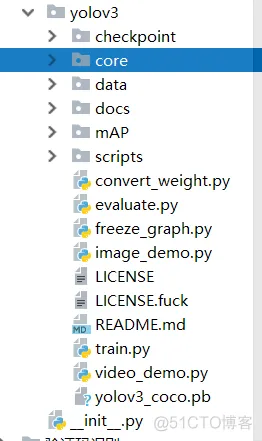

项目路径图：
tensorflow yolov3只检测行人_jj

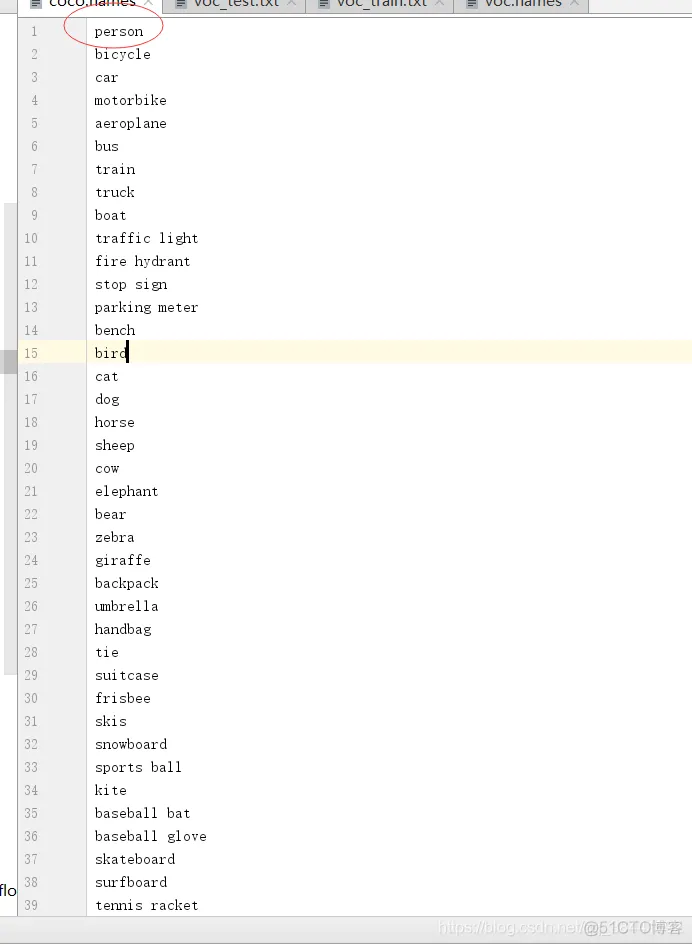

查看./data/classes/coco.names 类别的索引：
tensorflow yolov3只检测行人_jj_02

这里person为第1个，即索引为0

更改：

登录后复制

./core/utils.py1.

draw_bbox函数(将roi_index设置为你想要的索引即可，我这里为0)：

登录后复制

def draw_bbox(image, bboxes, classes=read_class_names(cfg.YOLO.CLASSES),
show_label=True):    """    bboxes: [x_min, y_min, x_max, y_max, probability,
cls_id] format coordinates.    """    roi_index=0    num_classes = len(classes)
image_h, image_w, _ = image.shape    hsv_tuples = [(1.0 * x / num_classes, 1., 1.)
for x in range(num_classes)]    colors = list(map(lambda x: colorsys.hsv_to_rgb(*x),
hsv_tuples))    colors = list(map(lambda x: (int(x[0] * 255), int(x[1] * 255), int(x[2] * 255)),
 colors))    random.seed(0)    random.shuffle(colors)    random.seed(None)    for i,
 bbox in enumerate(bboxes):        coor = np.array(bbox[:4], dtype=np.int32)
 fontScale = 0.5        score = bbox[4]        class_ind = int(bbox[5])
 if class_ind ==roi_index:            bbox_color = colors[class_ind]
 bbox_thick = int(0.6 * (image_h + image_w) / 600)
 c1, c2 = (coor[0], coor[1]), (coor[2], coor[3])
 cv2.rectangle(image, c1, c2, bbox_color, bbox_thick)
 if show_label:                bbox_mess = '%s: %.2f' % (classes[class_ind], score)
t_size = cv2.getTextSize(bbox_mess, 0, fontScale, thickness=bbox_thick // 2)[0]
cv2.rectangle(image, c1, (c1[0] + t_size[0], c1[1] - t_size[1] - 3), bbox_color, -1)
# filled                cv2.putText(image, bbox_mess, (c1[0], c1[1] - 2),
cv2.FONT_HERSHEY_SIMPLEX,
fontScale, (0, 0, 0), bbox_thick // 2, lineType=cv2.LINE_AA)
return image1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.
29.30.31.32.33.34.35.

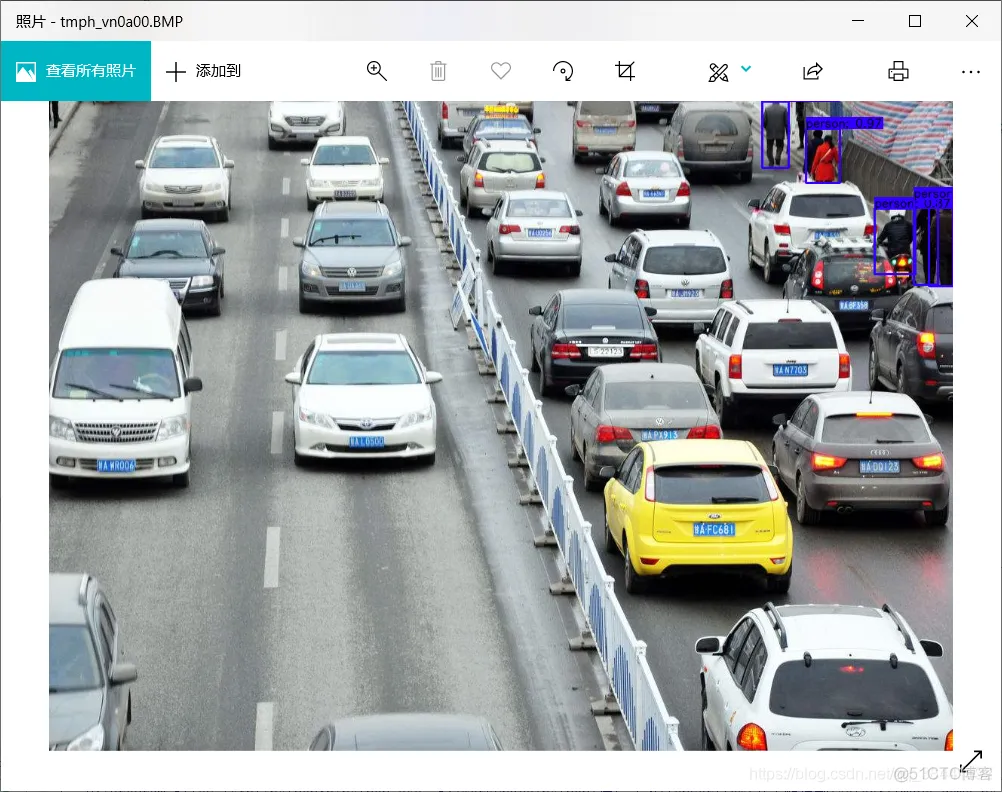

效果：

只框出了行人

tensorflow yolov3只检测行人_jj_03
