建模算法入门：多项式曲线拟合(MATLAB实现)‌

classdef LSPolynomialCurveFitting < handle
    % 多项式曲线拟合，线性最小二乘拟合同样适用， k 阶次为 1 即可。
    properties(Access=private)
        x % 自变量
        y % 因变量
        k % 最高拟合阶次
        fit_poly %曲线拟合的多项式
        poly_coefficient %  曲线拟合多项式的系数
    end

    methods(Access=public)
        % 构造函数
        function self = LSPolynomialCurveFitting(x, y, k)
            self.x = x;  % 自变量数据向量
            self.y = y; % 自变量数据向量
            self.k = k; % 最高拟合的阶次
            if length(x) ~= length(y)
                error("拟合数据的长度不匹配！")
            end
        end

        %% 多项式拟合核心算法
        function sol = fit(self)
            c = zeros(2 * self.k + 1, 1); %  系数矩阵2n+1个不同的值
            b = zeros(self.k + 1, 1);  % 右端向量
            for i = 0 : 2 * self.k
                c(i + 1) = sum(power(self.x, i));
                if i < self.k + 1
                    b(i + 1) = dot(self.y, power(self.x, i));
                end
            end
            C = zeros(self.k + 1, self.k + 1);  % 构造对称正定系数矩阵
            C(1, :) = c(1:self.k + 1);
            for i = 2:self.k + 1
                C(i, :) = c(i:self.k + i);
            end
            self.poly_coefficient = C \ b;  % 解方程组获得系数
            sol.C = C;
            sol.b = b;
            sol.coefficient = self.poly_coefficient;
            sol.fit_poly = vpa(self.create_poly());  % 构造拟合的多项式
            [sol.fit_error, sol.mse] = self.error_analysis();   % 误差分析
        end

        %% 计算给定值的拟合多项式的值
        function y0 = predict(self, x0)
            f_poly = matlabFunction(self.fit_poly);
            y0 = f_poly(x0);
        end

        %% 可视化插值多项式
        function plt_polynomial(self)
            xi = linspace(min(self.x), max(self.x), 100);
            f_poly = matlabFunction(self.fit_poly);  % 符号函数转化为匿名函数
            yi = f_poly(xi);
            plot(xi, yi, "-", "LineWidth", 1.5)
            hold on
            plot(self.x, self.y, "o", "MarkerFaceColor","k", "MarkerEdgeColor", "k")
            grid on; grid minor; box off; hold off
            xlabel("$x$", "Interpreter","latex")
            ylabel("$f(x)$", Interpreter="latex")
            title("最小二乘多项式曲线拟合与拟合点图形")
        end
    end

    methods(Access=private)
        %% 构造拟合的多项式
        function fit_poly = create_poly(self)
            syms t
            fit_poly = self.poly_coefficient(1) * 1;  % 常数项
            for i = 1 : self.k
                px = power(t, i);  % i次幂项
                fit_poly = fit_poly + self.poly_coefficient(i + 1) * px;
            end
            self.fit_poly = fit_poly;
        end
        %% 误差分析
        function [fit_error, mse] = error_analysis(self)
            y_hat = self.predict(self.x);
            fit_error = self.y - y_hat;  % 误差
            mse = mean(fit_error .^ 2);  % 均方误差
        end
    end
end

>> x = 0:0.05:5;
>> y = 0.5 * x.^3 + 2.0 * x.^2 - 1.5 * x + 2.5;
>> lspcf = LSPolynomialCurveFitting(x, y, 3);
>> sol = lspcf.fit()
sol =
  包含以下字段的 struct:

              C: [4×4 double]
              b: [4×1 double]
    coefficient: [4×1 double]
       fit_poly: 0.5*t^3 + 1.9999999999998596678096873802133*t^2 - 1.4999999999996689314940567783196*t + 2.4999999999998236965836895251414
      fit_error: [1.7586e-13 1.5987e-13 1.4388e-13 1.2923e-13 1.1502e-13 1.0170e-13 8.9262e-14 7.7272e-14 6.5725e-14 5.5067e-14 4.5297e-14 … ]
            mse: 6.3045e-25
>> sol.coefficient
ans =
    2.5000
   -1.5000
    2.0000
    0.5000

> y = 0.5 * x.^3 + 2.0 * x.^2 - 1.5 * x + 2.5 + 0.1 * randn(1, length(x));
>> lspcf = LSPolynomialCurveFitting(x, y, 3);
>> sol = lspcf.fit();
>> sol.coefficient
ans =
    2.5824
   -1.5800
    2.0266
    0.4971

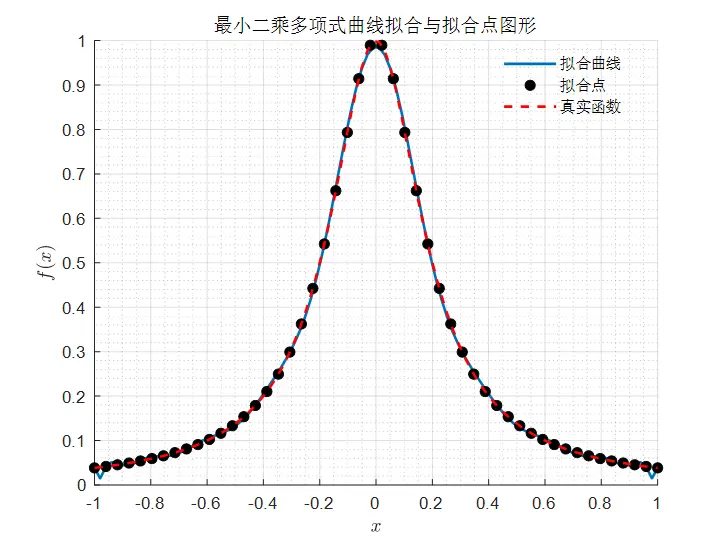

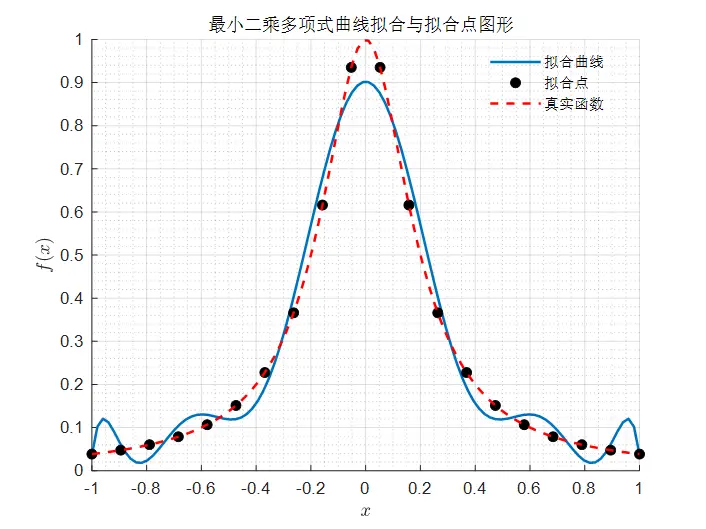

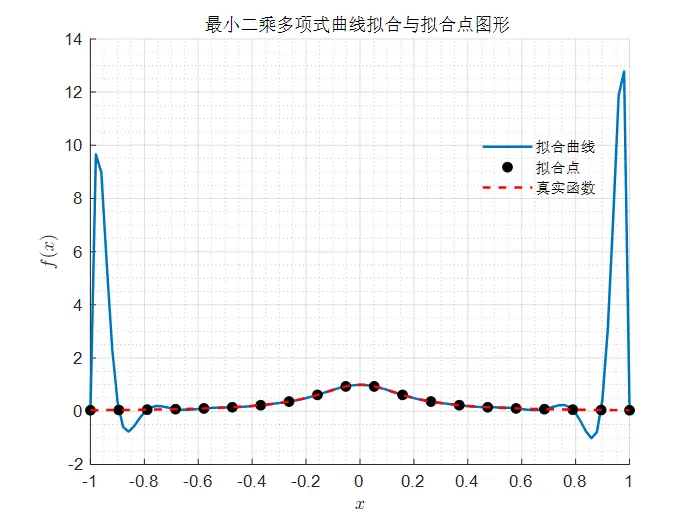

clc, clear, close all
x = linspace(-1, 1, 20);
y = @(x)1 ./ (1 + 25 * x.^2);
% x = linspace(0, 2 * pi, 10);
% y = @(x)exp(-x) .* sin(x);
lspcf = LSPolynomialCurveFitting(x, y(x), 10);
sol = lspcf.fit()
lspcf.plt_polynomial

hold on
xi = linspace(min(x), max(x), 100);
plot(xi, y(xi), "r--", "LineWidth", 1.5)
legend("拟合曲线", "拟合点", "真实函数", "Location", "best")
legend("boxoff")
hold off

sol =
  包含以下字段的 struct:

              C: [11×11 double]
              b: [11×1 double]
    coefficient: [11×1 double]
       fit_poly: - 37.494282546809607481463899603114*t^10 - 0.00000000010713037439474492698364172857389*t^9 + 102.93089907860144194273743778…
      fit_error: [0.0019 -0.0132 0.0326 -0.0254 -0.0230 0.0318 0.0354 -0.0371 -0.0636 0.0606 0.0606 -0.0636 -0.0371 0.0354 0.0318 -0.0230 … ]
            mse: 0.0014

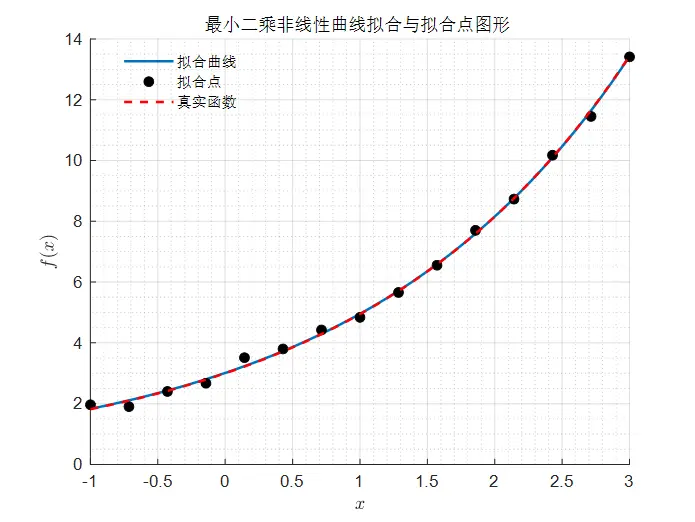

x = linspace(-1, 3, 15);
y = 3 * exp(0.5 * x) + randn(1, 15) / 10;
ln_y = log(y); %  线性转换

lspcf = LSPolynomialCurveFitting(x, ln_y, 1);
sol = lspcf.fit()
lspcf.plt_polynomial
a = exp(sol.coefficient(1));
b = sol.coefficient(2);
fprintf("系数分别为：a = %.15f, b = %.15f\n", a, b)

f_true = @(x)3 * exp(0.5 * x);  % 真是函数
fh = @(x)a * exp(b * x);  % 拟合函数
xi = linspace(min(x), max(x), 100);
plot(xi, fh(xi), "-", "LineWidth", 1.5)
hold on
plot(x, y, "o", "MarkerFaceColor","k", "MarkerEdgeColor", "k")
plot(xi, f_true(xi), "r--", "LineWidth", 1.5)
grid on; grid minor; box off; hold off
legend("拟合曲线", "拟合点", "真实函数", "Location", "best")
legend("boxoff")
xlabel("$x$", "Interpreter","latex")
ylabel("$f(x)$", Interpreter="latex")
title("最小二乘非线性曲线拟合与拟合点图形")

>> test_LSPolynomialCurveFitting2
sol =
  包含以下字段的 struct:

              C: [2×2 double]
              b: [2×1 double]
    coefficient: [2×1 double]
       fit_poly: 0.50457847919108400613907861043117*t + 1.0909972890461916428250788158039
      fit_error: [-0.0378 0.0156 -0.0132 0.0191 -0.0118 0.0187 0.0214 0.0371 -0.0017 -0.0326 -0.0120 0.0132 -0.0142 0.0034 -0.0052]
            mse: 4.1078e-04
系数分别为：a = 2.977241763092665, b = 0.504578479191084
