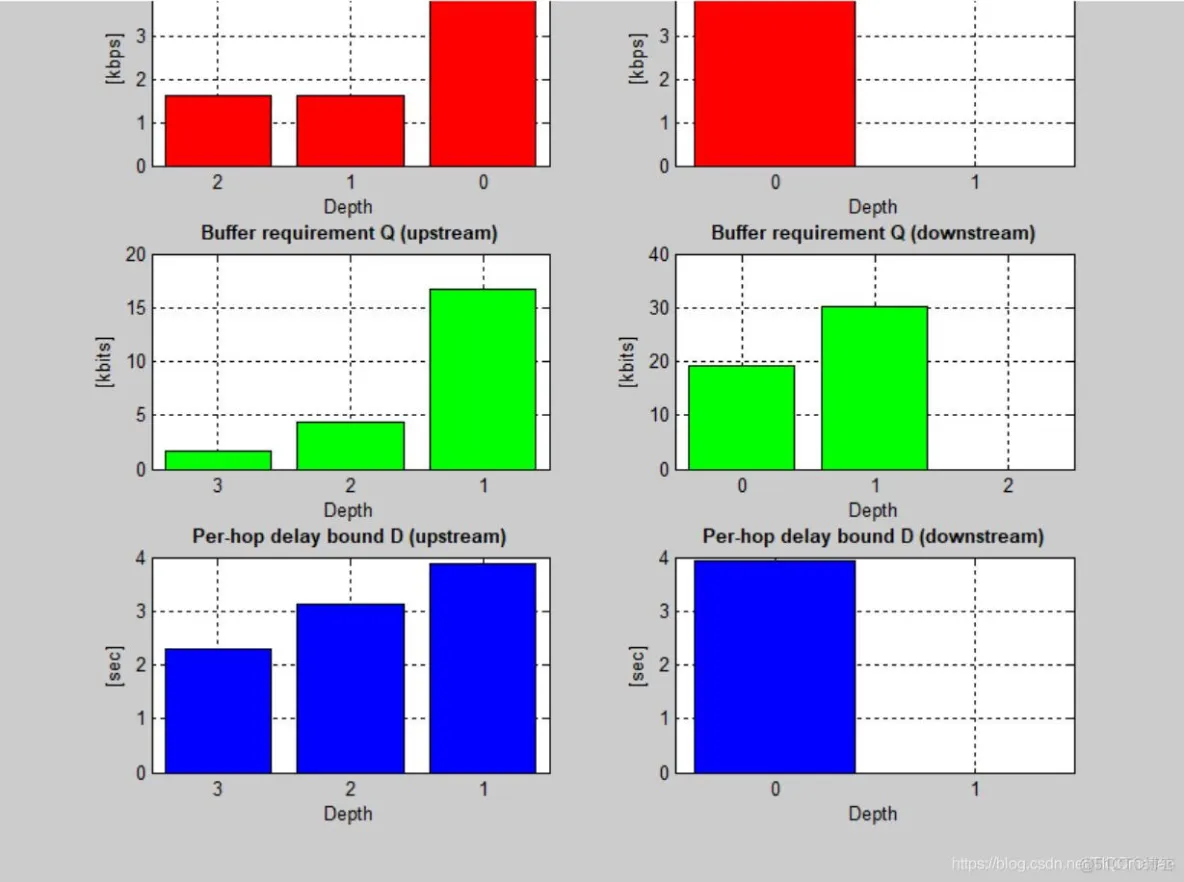

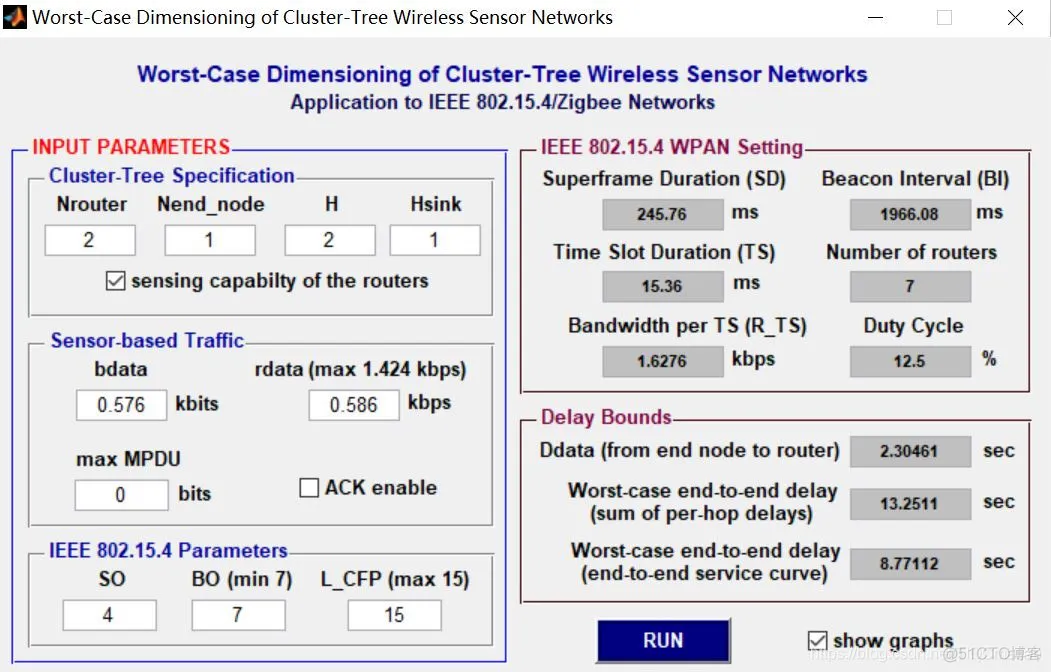

通过GUI界面设置网络节点和无线参数进行数据传输统计并生成曲线。
登录后复制
function varargout = ct_wsn(varargin)
% CT_WSN M-file for ct_wsn.fig
% CT_WSN, by itself, creates a new CT_WSN or raises the existing
% singleton*.
%
% H_edit = CT_WSN returns the handle to a new CT_WSN or the handle to
% the existing singleton*.
%
% CT_WSN('CALLBACK',hObject,eventData,handles,...) calls the local
% function named CALLBACK in CT_WSN.M with the given input arguments.
%
% CT_WSN('Property','Value',...) creates a new CT_WSN or raises the
% existing singleton*. Starting from the left, property value pairs are
% applied to the GUI before ct_wsn_OpeningFunction gets called. An
% unrecognized property name or invalid value makes property application
% stop. All inputs are passed to ct_wsn_OpeningFcn via varargin.
%
% *See GUI Options on GUIDE's Tools menu. Choose "GUI allows only one
% instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES
% Edit the above text to modify the response to help ct_wsn
% Last Modified by GUIDE v2.5 25-Mar-2021 18:16:18
% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name', mfilename, ...
'gui_Singleton', gui_Singleton, ...
'gui_OpeningFcn', @ct_wsn_OpeningFcn, ...
'gui_OutputFcn', @ct_wsn_OutputFcn, ...
'gui_LayoutFcn', [] , ...
'gui_Callback', []);
if nargin && ischar(varargin{1})
gui_State.gui_Callback = str2func(varargin{1});
end
if nargout
[varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT
% --- Executes just before ct_wsn is made visible.
function ct_wsn_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% varargin command line arguments to ct_wsn (see VARARGIN)
% Choose default command line output for ct_wsn
handles.output = hObject;
% Update handles structure
guidata(hObject, handles);
% UIWAIT makes ct_wsn wait for user response (see UIRESUME)
% uiwait(handles.figure1);
L_CFP_maxFcn(handles);
set(handles.BO_edit,'String', BO_minFcn(handles));
rdata_maxFcn(handles);
% --- Outputs from this function are returned to the command line.
function varargout = ct_wsn_OutputFcn(hObject, eventdata, handles)
% varargout cell array for returning output args (see VARARGOUT);
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Get default command line output from handles structure
varargout{1} = handles.output;
% --- Executes during object creation, after setting all properties.
function Nrouter_edit_CreateFcn(hObject, eventdata, handles)
% hObject handle to Nrouter_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called
% Hint: edit controls usually have a white background on Windows.
% See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end
% --- Executes during object creation, after setting all properties.
function Nend_node_edit_CreateFcn(hObject, eventdata, handles)
% hObject handle to Nend_node_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called
% Hint: edit controls usually have a white background on Windows.
% See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end
% --- Executes during object creation, after setting all properties.
function H_edit_CreateFcn(hObject, eventdata, handles)
% hObject handle to H_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called
% Hint: edit controls usually have a white background on Windows.
% See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end
% --- Executes during object creation, after setting all properties.
function Hsink_edit_CreateFcn(hObject, eventdata, handles)
% hObject handle to Hsink_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called
% Hint: edit controls usually have a white background on Windows.
% See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end
function Nrouter_edit_Callback(hObject, eventdata, handles)
% hObject handle to Nrouter_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Hints: get(hObject,'String') returns contents of Nrouter_edit as text
% str2double(get(hObject,'String')) returns contents of Nrouter_edit as a double
rdata_maxFcn(handles);
function Nend_node_edit_Callback(hObject, eventdata, handles)
% hObject handle to Nend_node_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Hints: get(hObject,'String') returns contents of Nend_node_edit as text
% str2double(get(hObject,'String')) returns contents of Nend_node_edit as a double
rdata_maxFcn(handles);
function H_edit_Callback(hObject, eventdata, handles)
% hObject handle to H_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Hints: get(hObject,'String') returns contents of H_edit as text
% str2double(get(hObject,'String')) returns contents of H_edit as a double
rdata_maxFcn(handles);
function Hsink_edit_Callback(hObject, eventdata, handles)
% hObject handle to Hsink_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Hints: get(hObject,'String') returns contents of Hsink_edit as text
% str2double(get(hObject,'String')) returns contents of Hsink_edit as a double
H = str2double(get(handles.H_edit,'String')); %Height of the tree
Hsink = str2double(get(handles.Hsink_edit,'String'));
if Hsink > H
warndlg('! Hsink is not feasible (Hsink <= H) !','Warning');
set(handles.Hsink_edit,'String', H);
else
rdata_maxFcn(handles);
end
% --- Executes on button press in S_checkbox.
function S_checkbox_Callback(hObject, eventdata, handles)
% hObject handle to S_checkbox (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Hint: get(hObject,'Value') returns toggle state of S_checkbox
rdata_maxFcn(handles);
function bdata_edit_Callback(hObject, eventdata, handles)
% hObject handle to bdata_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Hints: get(hObject,'String') returns contents of bdata_edit as text
% str2double(get(hObject,'String')) returns contents of bdata_edit as a double
% --- Executes during object creation, after setting all properties.
function bdata_edit_CreateFcn(hObject, eventdata, handles)
% hObject handle to bdata_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called
% Hint: edit controls usually have a white background on Windows.
% See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end
function rdata_edit_Callback(hObject, eventdata, handles)
% hObject handle to rdata_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Hints: get(hObject,'String') returns contents of rdata_edit as text
% str2double(get(hObject,'String')) returns contents of rdata_edit as a double
rdata_maxFcn(handles);
% --- Executes during object creation, after setting all properties.
function rdata_edit_CreateFcn(hObject, eventdata, handles)
% hObject handle to rdata_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called
% Hint: edit controls usually have a white background on Windows.
% See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end
% --- Executes on button press in rdata_max_button.
function rdata_max_button_Callback(hObject, eventdata, handles)
% hObject handle to rdata_max_button (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
function SO_edit_Callback(hObject, eventdata, handles)
% hObject handle to SO_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Hints: get(hObject,'String') returns contents of SO_edit as text
% str2double(get(hObject,'String')) returns contents of SO_edit as a double
L_CFP_maxFcn(handles);
BO_minFcn(handles);
rdata_maxFcn(handles);
% --- Executes during object creation, after setting all properties.
function SO_edit_CreateFcn(hObject, eventdata, handles)
% hObject handle to SO_edit (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called
% Hint: edit controls usually have a white background on Windows.
% See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end
2014a
