基于Matlab GUI的迈克尔逊干涉实验仿真

一、简介

基于matlab GUI迈克尔逊实验仿真

二、源代码

登录后复制

function varargout = michelson_GUI(varargin)
% MICHELSON_GUI MATLAB code for michelson_GUI.fig
%      MICHELSON_GUI, by itself, creates a new MICHELSON_GUI or raises the existing
%      singleton*.
%
%      H = MICHELSON_GUI returns the handle to a new MICHELSON_GUI or the handle to
%      the existing singleton*.
%
%      MICHELSON_GUI('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in MICHELSON_GUI.M with the given input arguments.
%
%      MICHELSON_GUI('Property','Value',...) creates a new MICHELSON_GUI or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before michelson_GUI_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to michelson_GUI_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help michelson_GUI

% L

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @michelson_GUI_OpeningFcn, ...
                   'gui_OutputFcn',  @michelson_GUI_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before michelson_GUI is made visible.
function michelson_GUI_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to michelson_GUI (see VARARGIN)

% Choose default command line output for michelson_GUI
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);


% UIWAIT makes michelson_GUI wait for user response (see UIRESUME)
% uiwait(handles.figure1);



% --- Outputs from this function are returned to the command line.
function varargout = michelson_GUI_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;




function edit1_Callback(hObject, eventdata, handles)
% hObject    handle to edit1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of edit1 as text
%        str2double(get(hObject,'String')) returns contents of edit1 as a double
global lambda;
lambda = str2double(get(hObject, 'String'))*10^(-9);





% --- Executes during object creation, after setting all properties.
function edit1_CreateFcn(hObject, eventdata, handles)
% hObject    handle to edit1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
    set(hObject,'BackgroundColor','white');
end




function edit2_Callback(hObject, eventdata, handles)
% hObject    handle to edit2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of edit2 as text
%        str2double(get(hObject,'String')) returns contents of edit2 as a double
global l;
l = str2double(get(hObject, 'String'));



% --- Executes during object creation, after setting all properties.
function edit2_CreateFcn(hObject, eventdata, handles)
% hObject    handle to edit2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
    set(hObject,'BackgroundColor','white');
end



function edit3_Callback(hObject, eventdata, handles)
% hObject    handle to edit3 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of edit3 as text
%        str2double(get(hObject,'String')) returns contents of edit3 as a double
global D;
D = str2double(get(hObject, 'String'))*10^(-3);




% --- Executes during object creation, after setting all properties.
function edit3_CreateFcn(hObject, eventdata, handles)
% hObject    handle to edit3 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
    set(hObject,'BackgroundColor','white');
end



% --- Executes on button press in pushbutton1.
function pushbutton1_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
intensity0 = 1;
global D;
global l;
global lambda;
global beta;

global x;
global y;
global r;

xv = -0.1:0.001:0.1;
yv = -0.1:0.001:0.1;
[x, y] = meshgrid(xv, yv);
r = sqrt(x.^2 + y.^2);
beta = 0;

d2 = 0.5;
d1 = (d2-D)*cos(beta);
d = d2-d1*cos(beta);

path1 = sqrt(x.^2 + y.^2+l^2);
path2 = sqrt((x-2*d1*sin(beta)).^2 + y.^2 + (l-2*d)^2);
opticalPath = abs(path1-path2);
sigma = 2 * pi() * opticalPath / lambda;
intensity = 4 * intensity0 * (cos(sigma / 2)).^2;

fig = surf(handles.axes3, x, y, intensity);
set(fig, 'edgecolor', 'none');
view(2);
caxis([0,4]);
colormap(gray);


% --- Executes during object creation, after setting all properties.
function axes3_CreateFcn(hObject, eventdata, handles)
% hObject    handle to axes3 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: place code in OpeningFcn to populate axes3


% --- Executes on button press in pushbutton2.
function pushbutton2_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
intensity0 = 1;

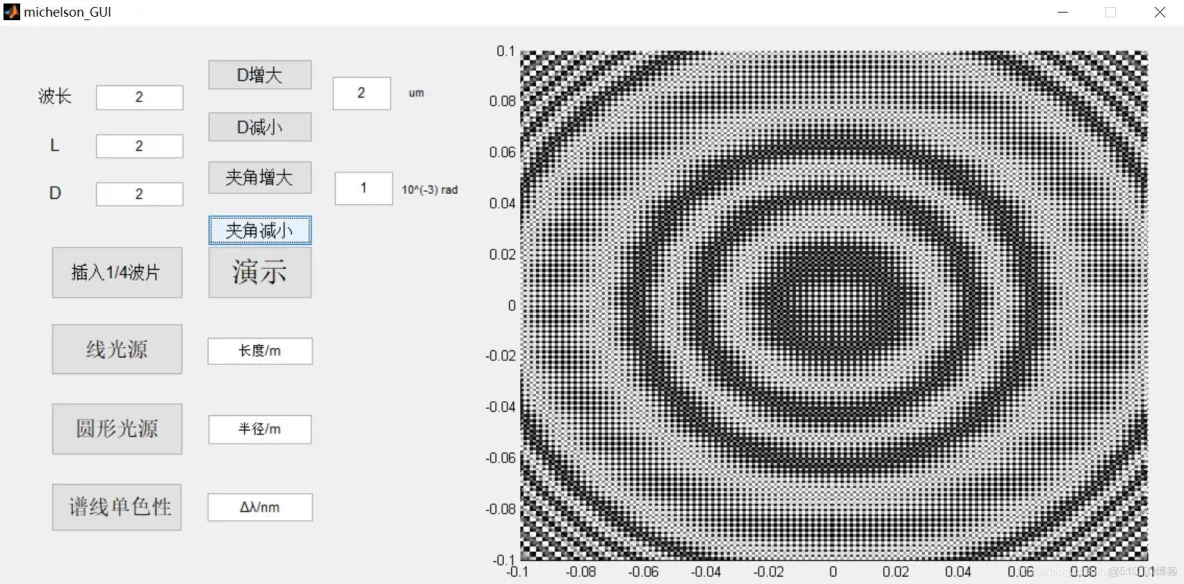

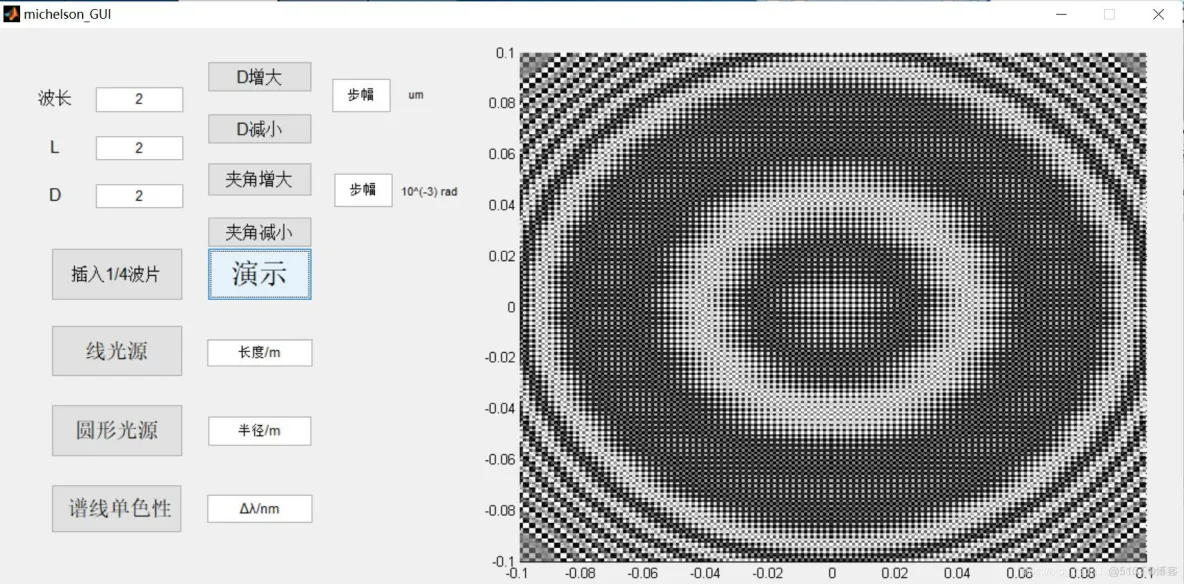

三、运行结果

四、备注

版本：2014a
