定制Abaqus GUI：常用控件与内嵌功能调用

Abaqus/CAE中已经集成了较为丰富的功能组件，在编写GUI程序时，没有必要去做一些重复性的开发，在需要使用Abaqus/CAE内嵌的功能组件时，可以在自己的GUI程序中直接调用。例如，直接调用创建零件、创建材料或者划分网格的功能等。

Abaqus/CAE内嵌功能的实现需要借助mainWindow对象的getTargetFromFunction和getSelectorFromFunction两个函数命令，两个函数命令的作用是分别获取Abaqus/CAE内嵌功能的目标和选择器。

实例展示

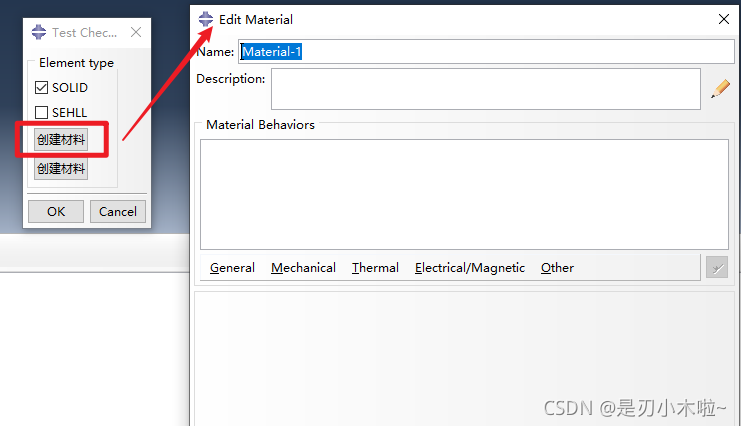

直接点击按钮，调用Abaqus/CAE内部的东西：

代码展示

图形界面文件【testcheckbuttonDB.py】

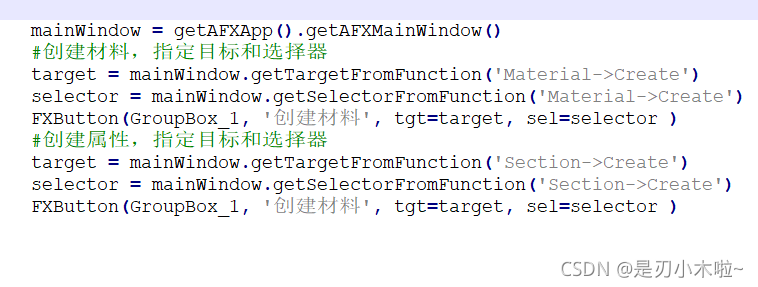

# -* - coding:UTF-8 -*- from abaqusConstants import *from abaqusGui import *from kernelAccess import mdb, sessionimport osthisPath = os.path.abspath(__file__)thisDir = os.path.dirname(thisPath)class testcheckbuttonDB(AFXDataDialog):    def __init__(self, form):        AFXDataDialog.__init__(self, form, 'Test Check Button',            self.OK|self.CANCEL, DIALOG_ACTIONS_SEPARATOR)        okBtn = self.getActionButton(self.ID_CLICKED_OK)        okBtn.setText('OK')                   GroupBox_1 = FXGroupBox(p=self, text='Element type', opts=FRAME_GROOVE)        FXCheckButton(p=GroupBox_1, text='SOLID\t选择实体单元', tgt=form.ele_solidKw, sel=0)        FXCheckButton(p=GroupBox_1, text='SEHLL\t选择壳单元', tgt=form.ele_shellKw, sel=0)         mainWindow = getAFXApp().getAFXMainWindow()        #创建材料，指定目标和选择器        target = mainWindow.getTargetFromFunction('Material->Create')        selector = mainWindow.getSelectorFromFunction('Material->Create')        FXButton(GroupBox_1, '创建材料', tgt=target, sel=selector )          #创建属性，指定目标和选择器        target = mainWindow.getTargetFromFunction('Section->Create')        selector = mainWindow.getSelectorFromFunction('Section->Create')        FXButton(GroupBox_1, '创建属性', tgt=target, sel=selector )

注册文件【testcheckbutton_plugin.py】

from abaqusGui import *from abaqusConstants import ALLimport osutils, os  ############################################################################ Class definition########################################################################### class testcheckbutton_plugin(AFXForm):     #~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~    def __init__(self, owner):                # Construct the base class.        #        AFXForm.__init__(self, owner)        self.radioButtonGroups = {}         self.cmd = AFXGuiCommand(mode=self, method='',            objectName='', registerQuery=False)        pickedDefault = ''        self.ele_solidKw = AFXBoolKeyword(self.cmd, 'ele_solid',             AFXBoolKeyword.TRUE_FALSE, True, True)        self.ele_shellKw = AFXBoolKeyword(self.cmd, 'ele_shell',             AFXBoolKeyword.TRUE_FALSE, True, False)     #~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~    def getFirstDialog(self):         import testcheckbuttonDB        return testcheckbuttonDB.testcheckbuttonDB(self)     #~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~    def doCustomChecks(self):         # Try to set the appropriate radio button on. If the user did        # not specify any buttons to be on, do nothing.        #        for kw1,kw2,d in self.radioButtonGroups.values():            try:                value = d[ kw1.getValue() ]                kw2.setValue(value)            except:                pass        return True     #~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~    def okToCancel(self):         # No need to close the dialog when a file operation (such        # as New or Open) or model change is executed.        #        return False #~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~# Register the plug-in#thisPath = os.path.abspath(__file__)thisDir = os.path.dirname(thisPath) toolset = getAFXApp().getAFXMainWindow().getPluginToolset()toolset.registerGuiMenuButton(    buttonText='test checkbutton',     object=testcheckbutton_plugin(toolset),    messageId=AFXMode.ID_ACTIVATE,    icon=None,    kernelInitString='',    applicableModules=ALL,    version='N/A',    author='N/A',    description='N/A',    helpUrl='N/A')
