virtuoso tran仿真波形跳变不收敛的一种解决办法与参数调优记录

最近在搞整个芯片的tran仿真，经常性发生tran仿真不收敛的情况。

下面是其中一种不收敛情况的现象及其解决办法.

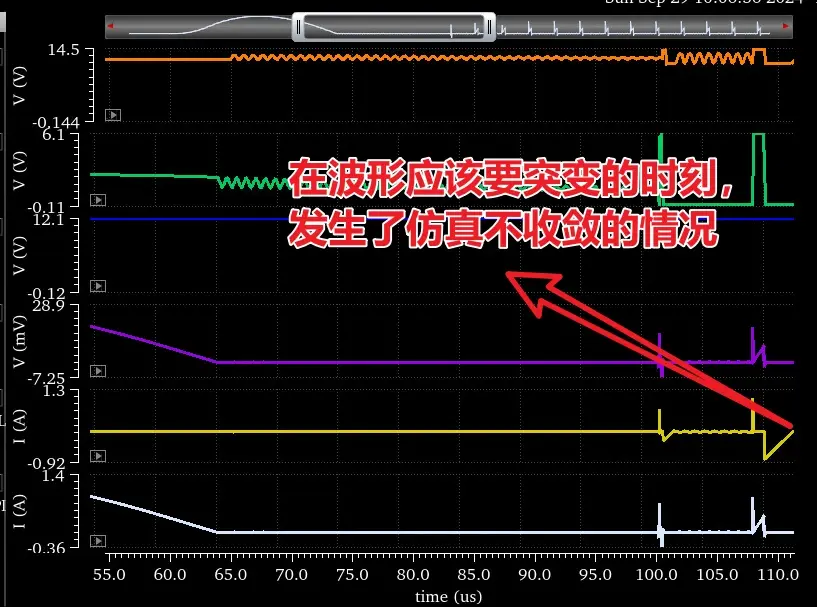

现象:

在波形应该要突变的时刻，发生了仿真不收敛的情况.

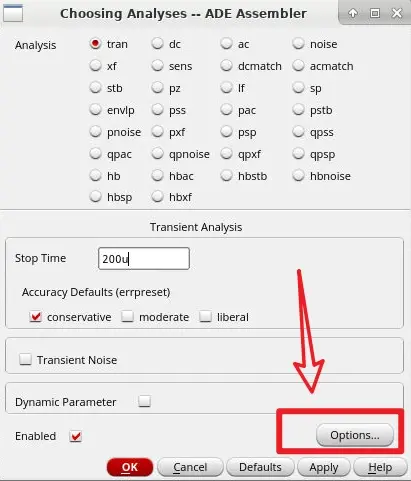

解决办法：

解决办法的原理说明：

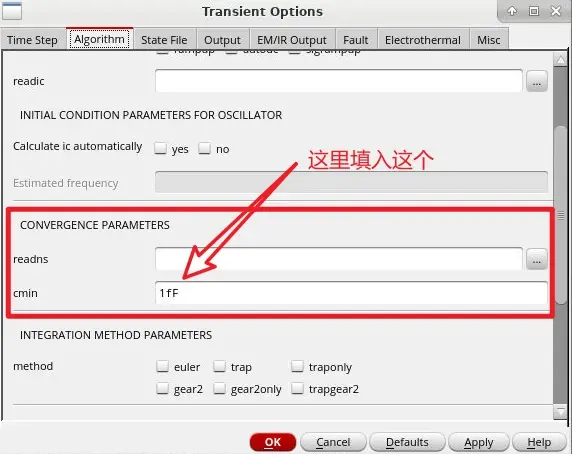

设置transient options中的cmin参数，保证每个节点都会有一个小电容到地，从而延长信号边沿变化的时间，这可以解决掉大部分的波形跳变问题，并且一般不会影响电路的功能

参考链接：
