ABAQUS与Python交互应用

创建壳单元

Python代码

# -*- coding: mbcs -*-
# Do not delete the following import lines
from abaqus import *
from abaqusConstants import *
import __main__

import section
import regionToolset
import displayGroupMdbToolset as dgm
import part
import material
import assembly
import step
import interaction
import load
import mesh
import optimization
import job
import sketch
import visualization
import xyPlot
import displayGroupOdbToolset as dgo
import connectorBehavior
# 画线
num_section = 50
line_length = [0,0.01046,0.02092,0.03138,0.04184,0.0523,0.06276,0.07322,0.08368,0.09414,0.1046,0.11506,0.12552,0.13598,0.14644,0.1569,0.16736,0.17782,0.18828,0.19874,0.2092,0.21966,0.23012,0.24058,0.25104,0.2615,0.27196,0.28242,0.29288,0.30334,0.3138,0.32426,0.33472,0.34518,0.35564,0.3661,0.37656,0.38702,0.39748,0.40794,0.4184,0.42886,0.43932,0.44978,0.46024,0.4707,0.48116,0.49162,0.50208,0.51254,0.523]
s = mdb.models['Model-1'].ConstrainedSketch(name='__profile__', sheetSize=1.2)
g, v, d, c = s.geometry, s.vertices, s.dimensions, s.constraints
s.setPrimaryObject(option=STANDALONE)
s.Line(point1=(line_length[0], 0.0), point2=(line_length[1], 0.0))
s.HorizontalConstraint(entity=g[2], addUndoState=False)
for i in range(num_section-1):
    s.Line(point1=(line_length[i+1], 0.0), point2=(line_length[i+2], 0.0))
    s.HorizontalConstraint(entity=g[i+3], addUndoState=False)
    s.ParallelConstraint(entity1=g[i+2], entity2=g[i+3], addUndoState=False)
p = mdb.models['Model-1'].Part(name='Part-1', dimensionality=TWO_D_PLANAR,
    type=DEFORMABLE_BODY)
p = mdb.models['Model-1'].parts['Part-1']
p.BaseWire(sketch=s)
s.unsetPrimaryObject()
p = mdb.models['Model-1'].parts['Part-1']
del mdb.models['Model-1'].sketches['__profile__']

# 剖面
b = [0.020047,0.020303,0.02056,0.020816,0.021073,0.02133,0.021586,0.021843,0.022099,0.022356,0.022613,0.022869,0.023126,0.023382,0.023639,0.023895,0.024152,0.024408,0.024665,0.024922,0.025178,0.025435,0.025691,0.025948,0.026204,0.026461,0.026717,0.026974,0.027231,0.027487,0.027744,0.028,0.028257,0.028513,0.02877,0.029026,0.029283,0.029539,0.029796,0.030052,0.030309,0.030565,0.030822,0.031078,0.031335,0.031591,0.031848,0.032105,0.032361,0.032618]
a = [0.14295,0.14486,0.14677,0.14868,0.15059,0.1525,0.15441,0.15632,0.15823,0.16014,0.16205,0.16396,0.16587,0.16778,0.16969,0.1716,0.17351,0.17542,0.17733,0.17924,0.18115,0.18306,0.18497,0.18688,0.18879,0.1907,0.19261,0.19452,0.19643,0.19834,0.20025,0.20216,0.20407,0.20598,0.20789,0.2098,0.21171,0.21362,0.21553,0.21744,0.21935,0.22126,0.22317,0.22508,0.22699,0.2289,0.23081,0.23272,0.23463,0.23654]
for i in range(num_section):
    mdb.models['Model-1'].BoxProfile(name='Profile-'+str(i+1), b=b[i], a=a[i],
                                     uniformThickness=ON, t1=0.001)

# 材料
mdb.models['Model-1'].Material(name='Material-1')
mdb.models['Model-1'].materials['Material-1'].Elastic(table=((69000000000.0,
    0.3), ))

# 截面
for i in range(num_section):
    mdb.models['Model-1'].BeamSection(name='Section-'+str(i+1),
            integration=DURING_ANALYSIS, poissonRatio=0.0, profile='Profile-'+str(i+1),
            material='Material-1', temperatureVar=LINEAR,
            consistentMassMatrix=False)

# 指派
for i in range(num_section):
    p = mdb.models['Model-1'].parts['Part-1']
    e = p.edges
    edges = e.findAt(((line_length[i], 0, 0),))
    region = p.Set(edges=edges, name='Set-'+str(i+1))
    p = mdb.models['Model-1'].parts['Part-1']
    p.SectionAssignment(region=region, sectionName='Section-'+str(i+1), offset=0.0,
                        offsetType=MIDDLE_SURFACE, offsetField='',
                        thicknessAssignment=FROM_SECTION)

# 指派截面方向
p = mdb.models['Model-1'].parts['Part-1']
e = p.edges
edges = e.getSequenceFromMask(mask=('[#ffffffff #3ffff ]', ), )
region=p.Set(edges=edges, name='Set-'+str(num_section+1))
p = mdb.models['Model-1'].parts['Part-1']
p.assignBeamSectionOrientation(region=region, method=N1_COSINES, n1=(0.0, 0.0,
    -1.0))

# 装配
a = mdb.models['Model-1'].rootAssembly
a = mdb.models['Model-1'].rootAssembly
a.DatumCsysByDefault(CARTESIAN)
p = mdb.models['Model-1'].parts['Part-1']
a.Instance(name='Part-1-1', part=p, dependent=OFF)

# 分析步
a = mdb.models['Model-1'].rootAssembly
session.viewports['Viewport: 1'].setValues(displayedObject=a)
session.viewports['Viewport: 1'].assemblyDisplay.setValues(
    adaptiveMeshConstraints=ON, optimizationTasks=OFF,
    geometricRestrictions=OFF, stopConditions=OFF)
mdb.models['Model-1'].StaticStep(name='Step-1', previous='Initial')
session.viewports['Viewport: 1'].assemblyDisplay.setValues(step='Step-1')

# 边界条件
a = mdb.models['Model-1'].rootAssembly
v1 = a.instances['Part-1-1'].vertices
verts1 = v1.getSequenceFromMask(mask=('[#100000 ]', ), )
region = a.Set(vertices=verts1, name='Set-1')
mdb.models['Model-1'].EncastreBC(name='BC-1', createStepName='Initial',
    region=region, localCsys=None)

# 力
session.viewports['Viewport: 1'].assemblyDisplay.setValues(step='Step-1')
load = [178.06,180.46,182.85,185.25,187.65,190.04,192.44,194.84,197.23,199.63,202.02,204.42,206.82,209.21,211.61,214,216.4,218.8,221.19,223.59,225.99,228.38,230.78,233.17,235.57,237.97,240.36,242.76,245.16,247.55,249.95,252.34,254.74,257.14,259.53,261.93,264.33,266.72,269.12,271.51,273.91,276.31,278.7,281.1,283.5,285.89,288.29,290.68,293.08,295.48]
for i in range(num_section):
    a = mdb.models['Model-1'].rootAssembly
    e1 = a.instances['Part-1-1'].edges
    edges1 = e1.findAt(((line_length[i], 0, 0),))
    region = a.Set(edges=edges1, name='Set-'+str(i+2))
    mdb.models['Model-1'].LineLoad(name='Load-'+str(i+1), createStepName='Step-1',
                                   region=region, comp2=load[i])

# 网格
a = mdb.models['Model-1'].rootAssembly
partInstances =(a.instances['Part-1-1'], )
a.seedPartInstance(regions=partInstances, size=0.0026, deviationFactor=0.1,
    minSizeFactor=0.1)
a = mdb.models['Model-1'].rootAssembly
partInstances =(a.instances['Part-1-1'], )
a.generateMesh(regions=partInstances)
elemType1 = mesh.ElemType(elemCode=B23, elemLibrary=STANDARD)
a = mdb.models['Model-1'].rootAssembly
e1 = a.instances['Part-1-1'].edges
edges1 = e1.getSequenceFromMask(mask=('[#fffff ]', ), )
pickedRegions =(edges1, )
a.setElementType(regions=pickedRegions, elemTypes=(elemType1, ))

# 作业
session.viewports['Viewport: 1'].assemblyDisplay.setValues(mesh=OFF)
session.viewports['Viewport: 1'].assemblyDisplay.meshOptions.setValues(
    meshTechnique=OFF)
mdb.Job(name='Job-1', model='Model-1', description='', type=ANALYSIS,
        atTime=None, waitMinutes=0, waitHours=0, queue=None, memory=90,
        memoryUnits=PERCENTAGE, getMemoryFromAnalysis=True,
        explicitPrecision=SINGLE, nodalOutputPrecision=SINGLE, echoPrint=OFF,
        modelPrint=OFF, contactPrint=OFF, historyPrint=OFF, userSubroutine='',
        scratch='', resultsFormat=ODB, multiprocessingMode=DEFAULT, numCpus=1,
        numGPUs=0)
mdb.jobs['Job-1'].writeInput(consistencyChecking=OFF)

一键获取完整项目代码python
运行
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145

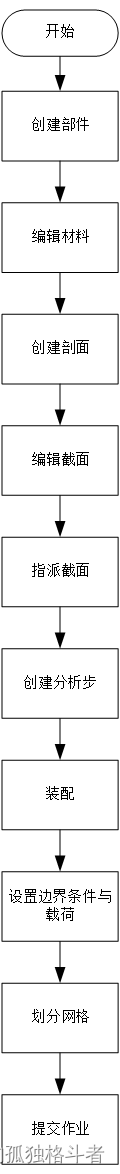

流程

创建草图

在Model-1中创建草图_profile_，并定义草图大小sheetSize；

mdb.models['Model-1'].ConstrainedSketch(name='__profile__', sheetSize=1.2)
一键获取完整项目代码python
运行
1

s = mdb.models[‘Model-1’].ConstrainedSketch(name=‘草图名称’, sheetSize=草图网格大小，gridSpacing=网格间隔（默认2%草图大小，transform=(坐标变换列表，4*4，默认草图平面为 xy )）)

复制草图

mdb.models[name].ConstrainedSketch(name,objectToCopy被复制的草图对象)

sketches草图；

（geometry草图对象；vertices顶点；）可通过findAt(coordinates)方法查找过某个点的几何对象。
dimensions尺寸；constraints约束仓库。

parts部件

features部件特征；datuns部件基准；cells体；faces面；edges边；vertices点；elements单元；nodes节点；referencePoints参考点；sets集合；surfaces表面；

materials材料

sections截面属性

rootAssembly.instances装配体

rootAssembly.sets装配集合

rootAssembly.surfaces装配体

steps分析步

fieldOutputRequests场变量输出
historyOutputRequests历史变量输出

interactions相互作用

interactionProperties相互作用属性
constraints约束
boundaryConditions边界条件
loads载荷
predefinedFields预定义场
