本人新手，正在学LS-DYNA，自己也在照着书上的例子练习，但常常发生错误。在这里借用技术邻这个平台交流学习，分享自己的经验。方便别人发现错误，也及时改正我自己的错误。
分析流程：用ANSYS Mechanical APDL Product Launcher打开ANSYS，注意在打开时选择带有LS-DYNA的license并勾选LS-DYNA模块→在GUI过滤的预前设置处勾选LS-DYNA显示分析→设置单元、实常数并建立几何模型（该粘合的地方需要粘合）→Mesh Attributes进行材料分布处理，然后划分网格→在LS-DYNA Options处创建Part，定义接触类型、时间边界条件、初始速度→设置时间控制、时间步长、能量选项和沙漏控制等→输出K文件，修改K文件，递交求解器求解→用Ls-prepost软件进行后处理，或者用Matlab进行数据处理等。

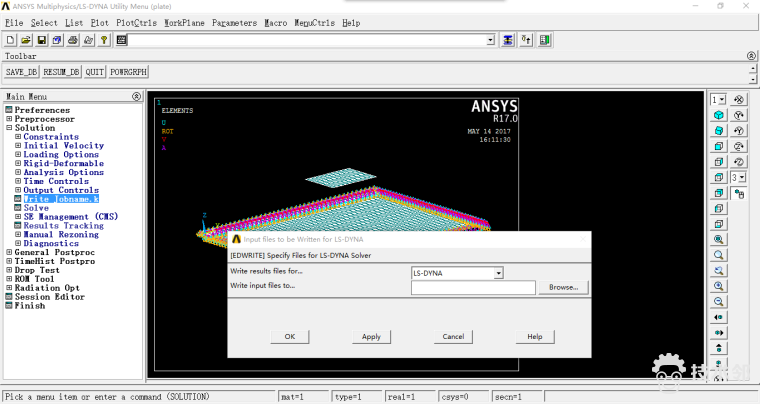

图1 ANSYS建立有限元模型
图2 Ls-prepost查看结果

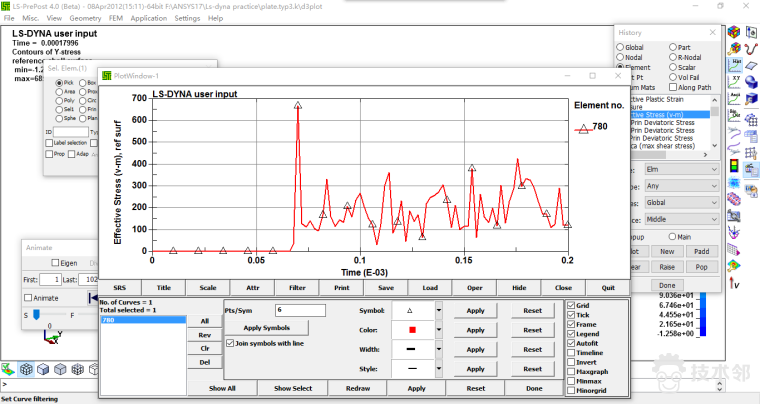

图3 Ls-prepost绘制曲线

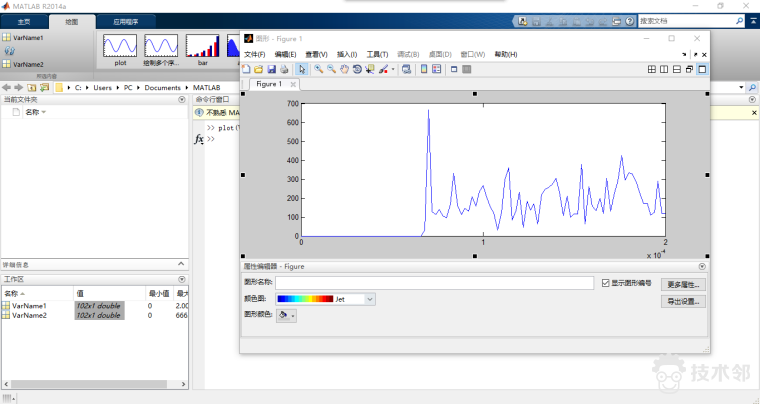

图4 将结果导入Matlab并绘制曲线
下面是部分K文件中比较重要的关键字：
*KEYWORD
*TITLE
$
*DATABASE_FORMAT
0
..........
$
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$ SECTION DEFINITIONS $
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
*SECTION_SHELL
1 2 0.8333 2.0 3.0 0.0 0
2.00 2.00 2.00 2.00 0.00
*SECTION_SHELL
2 2 0.8333 2.0 3.0 0.0 0
1.00 1.00 1.00 1.00 0.00
$
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$ MATERIAL DEFINITIONS $
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
*MAT_ELASTIC
1 0.785E-08 0.210E+06 0.300000 0.0 0.0 0.0
$
$
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$ PARTS DEFINITIONS $
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$
*PART
Part 1 for Mat 1 and Elem Type 2
1 1 1 0 0 0 0
$
*PART
Part 2 for Mat 1 and Elem Type 1
2 2 1 0 0 0 0
..........
$
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$ CONTACT DEFINITIONS $
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
*CONTACT_SURFACE_TO_SURFACE
2 1 3 3 0 0 1 1
0.000 0.000 0.000 0.000 0.000 0 0.000 0.1000E+08
1.000 1.000 0.000 0.000 1.000 1.000 1.000 1.000
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$ CONTROL OPTIONS $
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
*CONTROL_ENERGY
2 1 2 2
*CONTROL_HOURGLASS
4 0.100
*CONTROL_SHELL
20.0 1 -1 1 2 2 1
*CONTROL_CONTACT
0.10000 0.00000 2 0 1 1 2
0 0 10 0 4.00
*CONTROL_TIMESTEP
0.0000 0.5000 0 0.00 0.00
*CONTROL_TERMINATION
0.200E-03 0 0.00000 0.00000 0.00000
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$ TIME HISTORY $
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
*DATABASE_BINARY_D3PLOT
0.2000E-05
*DATABASE_BINARY_D3THDT
0.2000E-06
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$ DATABASE OPTIONS $
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
*DATABASE_EXTENT_BINARY
0 0 3 1 0 0 0 0
0 0 4 0 0 0
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$ INITIAL VELOCITY DEFINITIONS $
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
*SET_NODE_LIST
2 0.000 0.000 0.000 0.000
1682 1683 1684 1685 1686 1687 1688 1689
..........
1794 1795 1796 1797 1798 1799 1800 1801
1802
*INITIAL_VELOCITY
2 0 0
0.000 0.000 -.1500E+06 0.000 0.000 0.000
*END
