迭代进行期间或者结束后，在我们的测试日报或者测试报告中需要体现缺陷详细情况，甚至大家工作效率情况。本文就讨论下如何通过jira api获取缺陷信息并进行分析，同时获取需求子任务情况来了解测试和开发的工时。
具体代码如下
//定义数据对象
@Data
public class ReportData {
String name;
int bugNum;
int taskNum;
double taskTime;
String bugTate;
}
/**
* 获取sprint下的开发任务、测试任务以及缺陷
*
* @param springId
* @return
*/
public static Map<String, Map<String, ReportData>> getReportData(String springId) {
Map<String, Map<String, ReportData>> result = new HashMap<>();
//缺陷比较多时我们进行分页查询，默认一页150条数据
JSONObject jsonObject = getIssueKey(0, springId);
if (!JSONNull.getInstance().equals(jsonObject)) {
//解析查询的数据
Map<String, ReportData> testerData = new HashMap<>();//测试任务
Map<String, ReportData> developData = new HashMap<>();//开发任务
Map<String, ReportData> bugDetail = new HashMap<>();//缺陷等级
Map<String, ReportData> bugReason = new HashMap<>();//缺陷原因
//解析数据
result = getReportData(jsonObject, testerData, developData, bugDetail, bugReason);
//获取接口返回的缺陷总数
int total = jsonObject.getInt("total");
logger.info("spring上共有story" + total + "个");
if (total > 150) {
//如果大于150则进行分页查询
int page = total / 150;
if (total % 150 > 0) {
page = page + 1;//总页码
}
logger.info("spring上共有story" + page + "页");
for (int pageIndex = 1; pageIndex < page; pageIndex++) {
//分页获取数据
JSONObject object = getIssueKey(pageIndex * 150, springId);
if (!JSONNull.getInstance().equals(object)) {
//解析数据
result = getReportData(object, result.get("testerGeneral"), result.get("developGeneral"), result.get("bugDetail"), result.get("bugReason"));
}
}
}
}
return result;
}
/**
* 获取spring下的issue
*
* @param startAt
* @param springId
* @return
*/
private static JSONObject getIssueKey(int startAt, String springId) {
//调用jira api接口获取sprint下所有issue
HttpClientResponse issueResponse = httpClient("get", "http://you jira address:port/rest/agile/1.0/sprint/" + springId + "/issue?maxResults=150&startAt=" + startAt, "");
if (issueResponse != null && "200".equals(issueResponse.getStateCode())
&& issueResponse.getResponseBody() != null) {
//直接返回查询结果
JSONObject jsonObject = JSONObject.fromObject(issueResponse.getResponseBody().toString());
return jsonObject;
}
return null;
}
/**
* 解析数据 分别解析出测试人员情况，开发人员情况，缺陷等级概况以及缺陷原因概况
*
* @param jsonObject
* @param testerData
* @param developData
* @param bugDetail
* @param bugReason
* @return
*/
private static Map<String, Map<String, ReportData>> getReportData(JSONObject jsonObject, Map<String, ReportData> testerData, Map<String, ReportData> developData, Map<String, ReportData> bugDetail, Map<String, ReportData> bugReason) {
Map<String, Map<String, ReportData>> result = new HashMap<>();
JSONArray issueArray = jsonObject.getJSONArray("issues");
if (issueArray != null && issueArray.size() > 0) {
for (int i = 0; i < issueArray.size(); i++) {
JSONObject issueObject = issueArray.getJSONObject(i);
JSONObject fields = issueObject.getJSONObject("fields");
if (!JSONNull.getInstance().equals(fields)) {
//获取issuetype
JSONObject issuetype = fields.getJSONObject("issuetype");
if (!JSONNull.getInstance().equals(issuetype)) {
//获取issue 类别
String issuetypeName = issuetype.getString("name");
//获取经办人信息
JSONObject assignee = fields.getJSONObject("assignee");
if (!JSONNull.getInstance().equals(assignee)) {
//获取经办人花名
String displayName = assignee.getString("displayName");
//获取完成任务的预估时间的信息，这个字段是自定义字段
double originalEstimate = 0;
JSONObject timetracking = fields.getJSONObject("timetracking");
if (!JSONNull.getInstance().equals(timetracking) && timetracking.size() > 0) {
//获取预估时间
originalEstimate = timetracking.getInt("originalEstimateSeconds") / 3600;
}
//根据任务类别进行不同的处理
switch (issuetypeName) {
case "Story"://需求
break;
case "SubTask"://开发子任务
setReportData(developData, displayName, originalEstimate, false);
break;
case "测试子任务":测试子任务
setReportData(testerData, displayName, originalEstimate, false);
break;
case "缺陷":
//获取解决结果
JSONObject resolution = fields.getJSONObject("resolution");
if (!JSONNull.getInstance().equals(resolution)) {
//过滤掉被否决的bug
if ("被否决".equals(resolution.getString("name"))) {
break;
}
}
setReportData(developData, displayName, 0, true);
//获取报告人信息
JSONObject reporter = fields.getJSONObject("reporter");
if (!JSONNull.getInstance().equals(reporter)) {
//获取报告人花名
String reporterName = reporter.getString("displayName");
setReportData(testerData, reporterName, 0, true);
}
//bug等级进行分类
JSONObject priority = fields.getJSONObject("priority");
setReportData(bugDetail, priority, "name");
//bug原因进行分类
JSONObject reason = fields.getJSONObject("customfield_11522");
setReportData(bugReason, reason, "value");
default:
break;
}
}
}
}
}
}
result.put("testerGeneral", testerData);
result.put("developGeneral", developData);
result.put("bugDetail", bugDetail);
result.put("bugReason", bugReason);
return result;
}
/**
* 统一设置报告信息
*
* @param reportDataMap
* @param key
* @param originalEstimate
* @param isBug
*/
private static void setReportData(Map<String, ReportData> reportDataMap, String key, double originalEstimate, boolean isBug) {
DecimalFormat decimalFormat = new DecimalFormat("0.00");
if (reportDataMap.containsKey(key)) {
//如果包含key
ReportData temp = reportDataMap.get(key);
if (originalEstimate != 0) {
//设置任务时间，以小时计算
temp.setTaskTime(temp.getTaskTime() + originalEstimate);
}
if (isBug) {
//缺陷数量+1
temp.setBugNum(temp.getBugNum() + 1);
} else {
//任务数量+1
temp.setTaskNum(temp.getTaskNum() + 1);
}
//设置缺陷率
String formatNum = decimalFormat
.format((float) temp.getBugNum()
/ (temp.getTaskTime() == 0 ? 1 : temp.getTaskTime()) * 100);
temp.setBugTate(formatNum + "%");
} else {
ReportData reportData = new ReportData();
if (originalEstimate != 0) {
//设置任务时间，以小时计算
reportData.setTaskTime(originalEstimate);
}
if (isBug) {
//缺陷数量+1
reportData.setBugNum(1);
} else {
//任务数量+1
reportData.setTaskNum(1);
}
//设置缺陷率
String formatNum = decimalFormat
.format((float) reportData.getBugNum()
/ (reportData.getTaskTime() == 0 ? 1 : reportData.getTaskTime()) * 100);
reportData.setBugTate(formatNum + "%");
reportData.setName(key);
reportDataMap.put(key, reportData);
}
}
/**
* 统一设置报告信息
*
* @param dataMap
* @param jsonObject
* @param key
*/
private static void setReportData(Map<String, ReportData> dataMap, JSONObject jsonObject, String key) {
if (!JSONNull.getInstance().equals(jsonObject)) {
//获取key值
String priorityName = jsonObject.getString(key);
if (dataMap.containsKey(priorityName)) {
//数量+1
ReportData reportData = dataMap.get(priorityName);
reportData.setBugNum(reportData.getBugNum() + 1);
} else {
//数量+1
ReportData reportData = new ReportData();
reportData.setBugNum(1);
reportData.setName(priorityName);
dataMap.put(priorityName, reportData);
}
}
}
//getReportData(String sprintId) 方法返回结果示例，按照Map读取成自己的格式就可以了
{
bugReason={
功能错误=ReportData(name=功能错误,
bugNum=3,
taskNum=0,
taskTime=0.0,
bugTate=null),
需求问题=ReportData(name=需求问题,
bugNum=1,
taskNum=0,
taskTime=0.0,
bugTate=null)
},
developGeneral={
桑落=ReportData(name=桑落,
bugNum=3,
taskNum=7,
taskTime=28.0,
bugTate=10.71%),
白衣=ReportData(name=白衣,
bugNum=0,
taskNum=8,
taskTime=18.0,
bugTate=0.00%),
清远=ReportData(name=清远,
bugNum=1,
taskNum=0,
taskTime=0.0,
bugTate=100.00%)
},
testerGeneral={
黄台=ReportData(name=黄台,
bugNum=4,
taskNum=3,
taskTime=24.0,
bugTate=16.67%)
},
bugDetail={
Medium=ReportData(name=Medium,
bugNum=4,
taskNum=0,
taskTime=0.0,
bugTate=null)
}
}

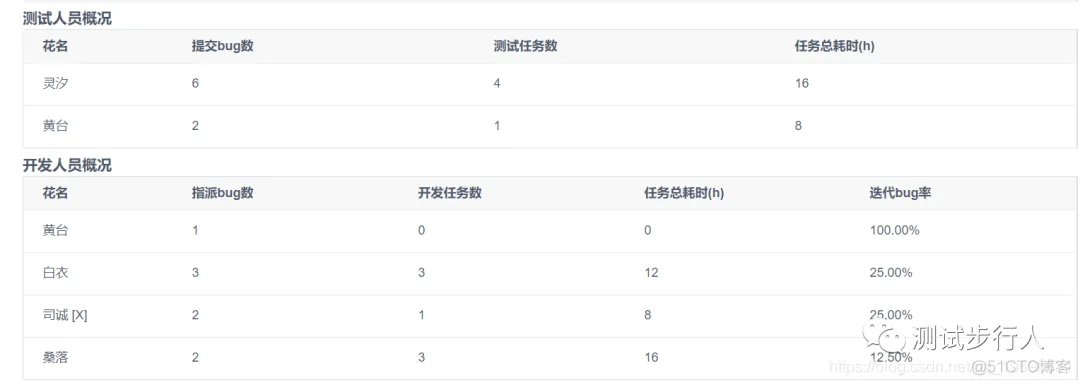

//对结果优化后以图标显示如下图
