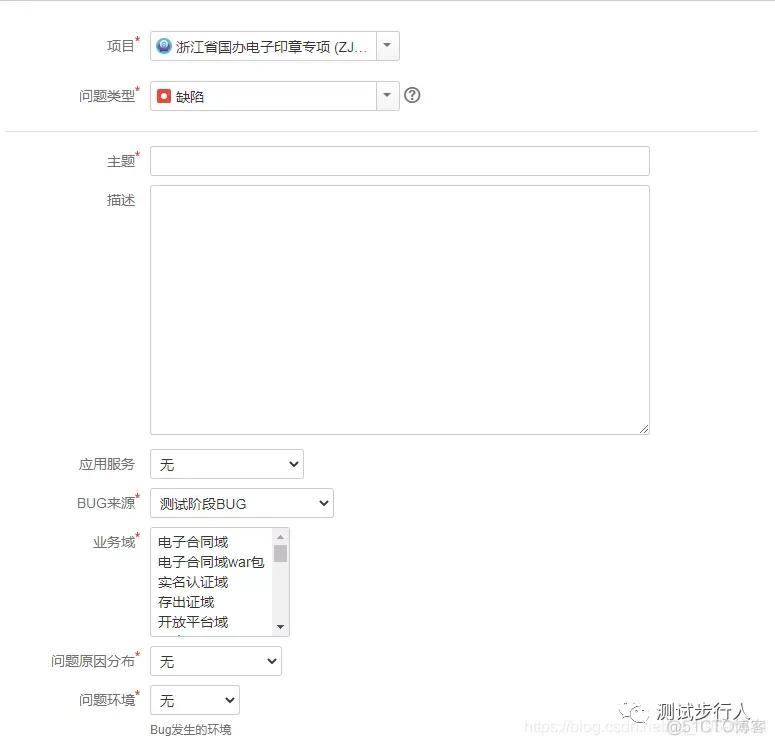

本文介绍如何通过api提交项目缺陷,由于不同project提交缺陷时要求的必填字段值可能不同，如下图，所以我们需要根据project id动态获取创建缺陷时需要的必填字段以及对应的字段值。
根据project id获取必填字段并根据字段类型设置字段值，代码如下
//创建缺陷时所需要的字段，以及设置默认值
public static String getBugCreateMeta(String jiraProjectId) {
//api 接口
String url = "http://you jira address:port/rest/api/2/issue/createmeta?projectIds=" + jiraProjectId + "&expand=projects.issuetypes.fields";
//初始值
String issueField = "{\n \"fields\": {\n \"project\": {\n \"id\": \"" + jiraProjectId + "\"\n }";
//除了必填项外 需要的字段
String[] otherRequiredField = {"assignee"};
//接口调用
HttpClientResponse httpClientResponse = httpClient(1, url, "");
JSONObject jsonObject = JSONObject.fromObject(httpClientResponse.getResponseBody().toString());
//接口返回结果示例参考下图
//获取项目信息
JSONArray projects = jsonObject.getJSONArray("projects");
JSONObject project = JSONObject.fromObject(projects.get(0));
//获取所有issue类型
JSONArray issuetypes = project.getJSONArray("issuetypes");
//查找缺陷类型
int bugIssueIndex = 0;//用于保存缺陷类型坐标
for (int i = 0; i < issuetypes.size(); i++) {
JSONObject issuetype = JSONObject.fromObject(issuetypes.get(i));
if ("缺陷".equals(issuetype.getString("name"))) {
bugIssueIndex = i;
//添加类型字段
issueField += replace(jiraFieldOptionTemplate, "issuetype", issuetype);
break;
}
}
//获取缺陷类型所有信息
JSONObject issuetype = JSONObject.fromObject(issuetypes.get(bugIssueIndex));
//获取提交缺陷时所有字段
JSONObject fields = issuetype.getJSONObject("fields");
//循环所有字段，并获取默认值
Iterator<String> iterator = fields.keys();
while (iterator.hasNext()) {
String key = iterator.next();
//获取字段信息
JSONObject field = fields.getJSONObject(key);
//字段是必填且没有设置默认值，则选择默认值
if (ArrayUtils.contains(otherRequiredField, key) ||
(field.getBoolean("required") && !field.getBoolean("hasDefaultValue"))) {
//获取字段类型
JSONObject schema = field.getJSONObject("schema");
if (field.containsKey("allowedValues")) {
//如果字段值有可选项，则默认取值第一个
JSONArray allowedValues = field.getJSONArray("allowedValues");
JSONObject allowedValue = JSONObject.fromObject(allowedValues.get(0));
issueField = getIssueField(schema, issueField, key, allowedValue);
} else {
//字段值默认key
issueField = getIssueField(schema, issueField, key, null);
}
}
}
//闭环json
issueField = issueField + "\n }\n}";
return issueField;
}
/**
* 设置那些类型的字段
*
* @param schema
* @param issueField
* @param key
* @param allowedValue
* @return
*/
private static String getIssueField(JSONObject schema, String issueField, String key, JSONObject allowedValue) {
//针对字段不同类型，定制不同模板
String jiraFieldArrayTemplate = ",\n \"key\": [\n {\n \"id\": \"jira_id\"\n }\n ]";
String jiraFieldOptionTemplate = ",\n \"key\": {\n \"id\": \"jira_id\"\n }";
String jiraFieldStringTemplate = ",\n \"key\": \"jira_key\"";
String jiraFieldUserTemplate = ",\n \"key\": {\n \"name\": \"jira_key\"\n }";
//字段类型，需要可以扩展
switch (schema.getString("type")) {
case "array":
issueField += replace(jiraFieldArrayTemplate, key, allowedValue);
break;
case "option":
issueField += replace(jiraFieldOptionTemplate, key, allowedValue);
break;
case "string":
issueField += replace(jiraFieldStringTemplate, key, null);
break;
case "user":
issueField += replace(jiraFieldUserTemplate, key, null);
break;
default:
break;
}
return issueField;
}
/**
* 替换值
*
* @param template
* @param key
* @param allowedValue
* @return
*/
private static String replace(String template, String key, JSONObject allowedValue) {
//默认值是key，如果有可选值则获取可选值
String value = key;
if (allowedValue != null) {
value = allowedValue.getString("id");
}
//以这种方式根据key的不同定制值
if (key.equals("customfield_10001")) {
value = "10001";
}
return StringUtils.replaceEach(template, new String[]{"key", "jira_id"}, new String[]{key, value});
}
//url 可使用参数projectIds表示项目id、projectKeys表示项目key、issuetypeIds表示类型Id、issuetypeNames表示类型名称、expand增加展示的字段
//http://jyou jira address:port/rest/api/2/issue/createmeta?projectIds=100001&expand=projects.issuetypes.fields&issuetypeIds=10001
//调用接口返回的结果，根据字段类型、是否必填、是否有默认值进行分析
{
"expand": "projects",
"projects": [
{
"expand": "issuetypes",
"self": "http://you jira address:port/rest/api/2/project/1",
"id": "1",
"key": "abc",
"name": "浙江省国办电子印章专项",
"avatarUrls": {
"48x48": "http://you jira address:port/secure/projectavatar?avatarId=10324"
},
"issuetypes": [
{
"self": "http://you jira address:port/rest/api/2/issuetype/2",
"id": "2",
"description": "gh.issue.story.desc",
"iconUrl": "http://you jira address:port/images/icons/issuetypes/story.svg",
"name": "Story",
"subtask": false,
"expand": "fields",
"fields": {
"summary": {
"required": true,
"schema": {
"type": "string",
"system": "summary"
},
"name": "主题",
"hasDefaultValue": false,
"operations": [
"set"
]
}
}
},
{
"self": "http://you jira address:port/rest/api/2/issuetype/3",
"id": "3",
"description": "",
"iconUrl": "http://you jira address:port/secure/viewavatar?size=xsmall&avatarId=3&avatarType=issuetype",
"name": "缺陷",
"subtask": false,
"expand": "fields",
"fields": {
"customfield_10001": {
"required": true,
"schema": {
"type": "option",
"custom": "com.atlassian.jira.plugin.system.customfieldtypes:select",
"customId": 10001
},
"name": "问题环境",
"hasDefaultValue": false,
"operations": [
"set"
],
"allowedValues": [//该字段值可以展示给用户进行选择
{
"self": "http://you jira address:port/rest/api/2/customFieldOption/3",
"value": "测试环境",
"id": "3"
},
{
"self": "http://you jira address:port/rest/api/2/customFieldOption/4",
"value": "生产环境",
"id": "4"
}
]
}
}
}
]
}
]
}
//getBugCreateMeta 方法返回的结果，该结果在第二步中做为body内容进行提交
{
"fields": {
"project": {
"id": "10001"
},
"issuetype": {
"id": "10002"
},
"summary": "jira_summary",
"reporter": {
"name": "huangtai"
},
"customfield_10003": {
"id": "10003"
},
"customfield_10004": {
"id": "10004"
},
"customfield_10005": [
{
"id": "10005"
}
],
"customfield_10006": {
"id": "10006"
},
"assignee": {
"name": "huangtai"
}
}
}
根据第一步中的返回结果作为请求body,提交缺陷，并获取缺陷key，代码如下
/**
* jira上新增缺陷
*
* @param requestBody 就是getBugCreateMeta方法返回的结果
* @return
*/
public static String addJiraIssue(String requestBody) {
//api接口
String url = "http://you jira address:port/rest/api/2/issue";
//请求接口
HttpClientResponse clientResponse = httpClient(2, url, requestBody);
if (clientResponse != null && "201".equals(clientResponse.getStateCode()) && clientResponse.getResponseBody() != null) {
//解析结果并返回缺陷key
JSONObject jsonObject = JSONObject.fromObject(clientResponse.getResponseBody().toString());
if (jsonObject != null && jsonObject.containsKey("key")) {
return jsonObject.getString("key");
}
}
return null;
}
//接口返回结果
{
"id": "12345",
"key": "abc-1001",
"self": "http://you jira address:port/rest/api/2/issue/12345"
}
总结：按照上面的步骤就可以在其它平台使用api的方式提交缺陷了；有时候需要让用户选择字段值，只需要把allowedValues字段在前端展示给用户选择即可。
