FPGA学习之路：Vivado与Modelsim联合仿真教程

阅读数 6

Vivado与Modelsim联合仿真

笔者在学习FPGA过程中遇到了如何使用Vivado和Modelsim进行联合仿真的问题，特此记录。

首先确定版本

笔者Vivado用的是2018.3版本，先是随便下了个~~Modelsim10.1c~~ 的版本，到编译库文件时报错了，后来发现是俩款软件的版本不匹配。所以大家在进行联合仿真之前先核对两个软件的版本是否对应，不用到最后再卸载重装。

具体的版本对应情况放到文档末尾，大家可翻到文末查看。

笔者用的是Vivado2018.3，查询的对应的Modelsim版本为10.6c。

Modelsim破解

准备Modelsim10.6c的安装包

下载链接

步骤如下：

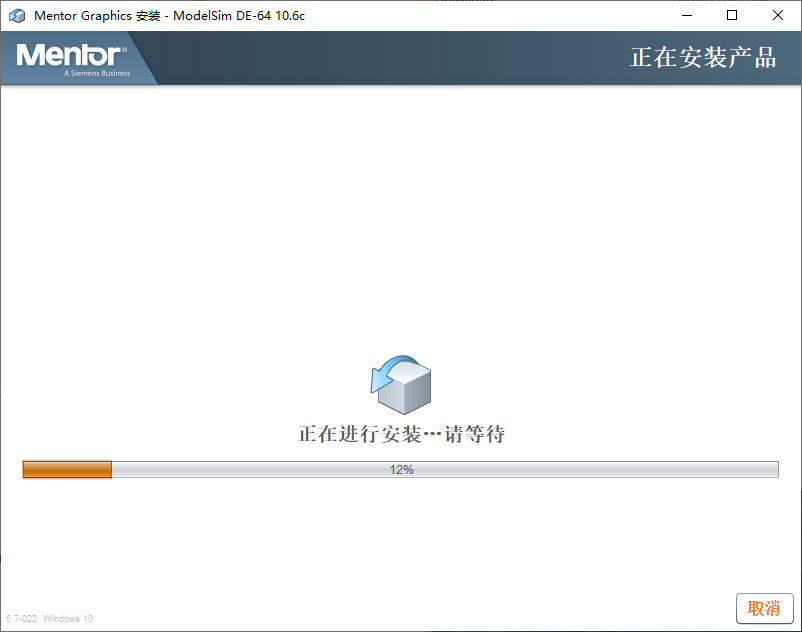

(1)、安装软件，注意安装路径中不要出现中文或空格，安装过程中一直点击YES即可。

(2)、把crack.bat、MentorKG.exe一起拷贝到modelsim安装目录的win64文件夹下，例如https://www.gofarlic.com\modelsim_dlx64_10.6c\win64pe

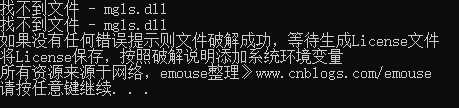

(3)、双击crack.bat，若出现下图所示问题，则将mgls64.dll重命名为mgls.dll再次重新运行crack.bat即可。

(4)、将生成的LICENSE.TXT放在modelsim的安装路径下，如https://www.gofarlic.com\modelsim_dlx64_10.6c，若前面修改了mgls64.dll文件的名称，则生成完LICENSE文件后应当把名字改回去。

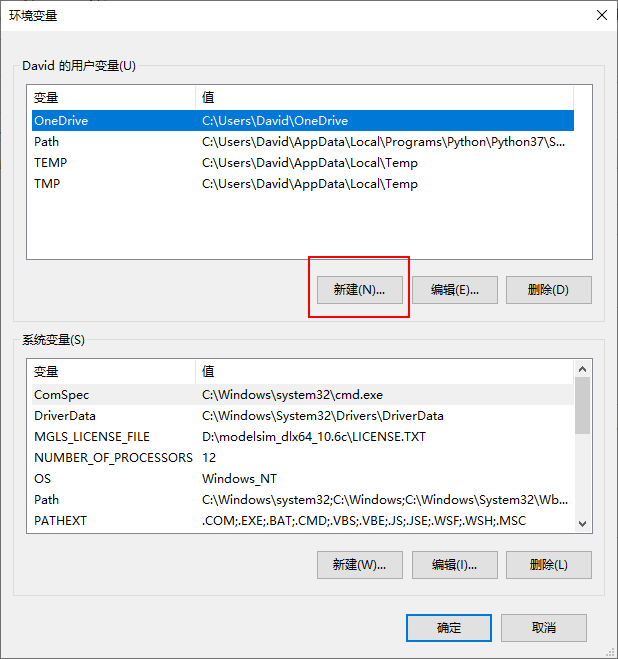

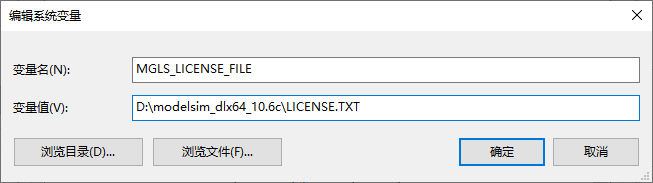

(5)、新建 环境变量 MGLS_LICENSE_FILE，变量值为LICENSE放置的路径，如https://www.gofarlic.com\modelsim_dlx64_10.6c\LICENSE.TXT。在win10中，右键此电脑->属性->高级系统设置->环境变量，进行环境变量的添加。

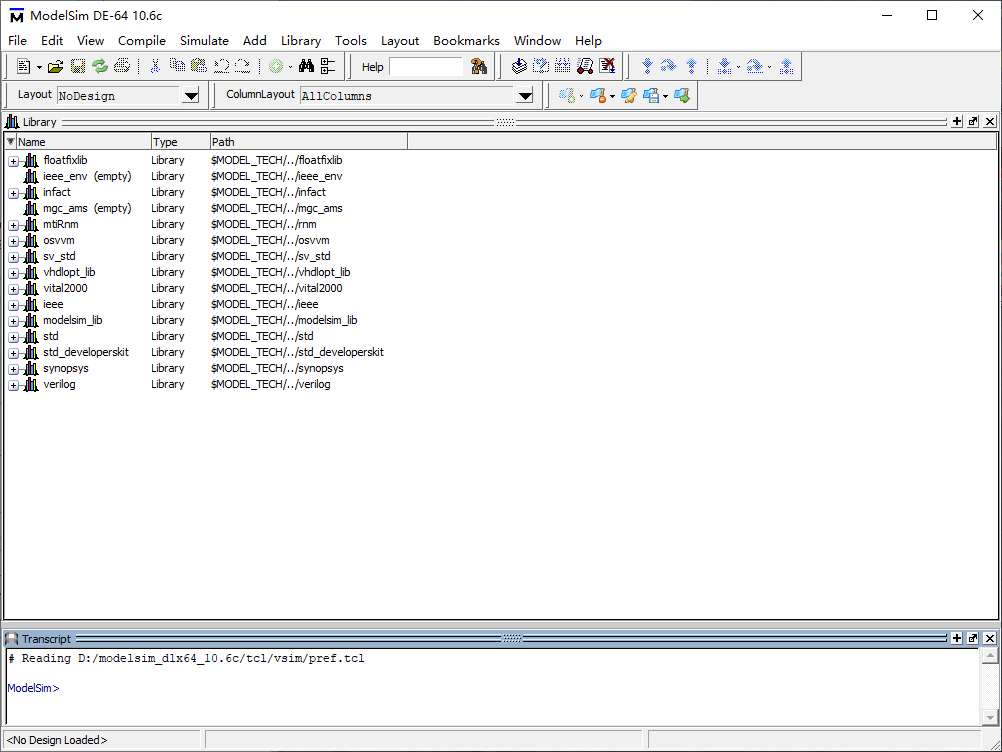

(6)、打开Modelsim软件，安装破解结束。

联合仿真

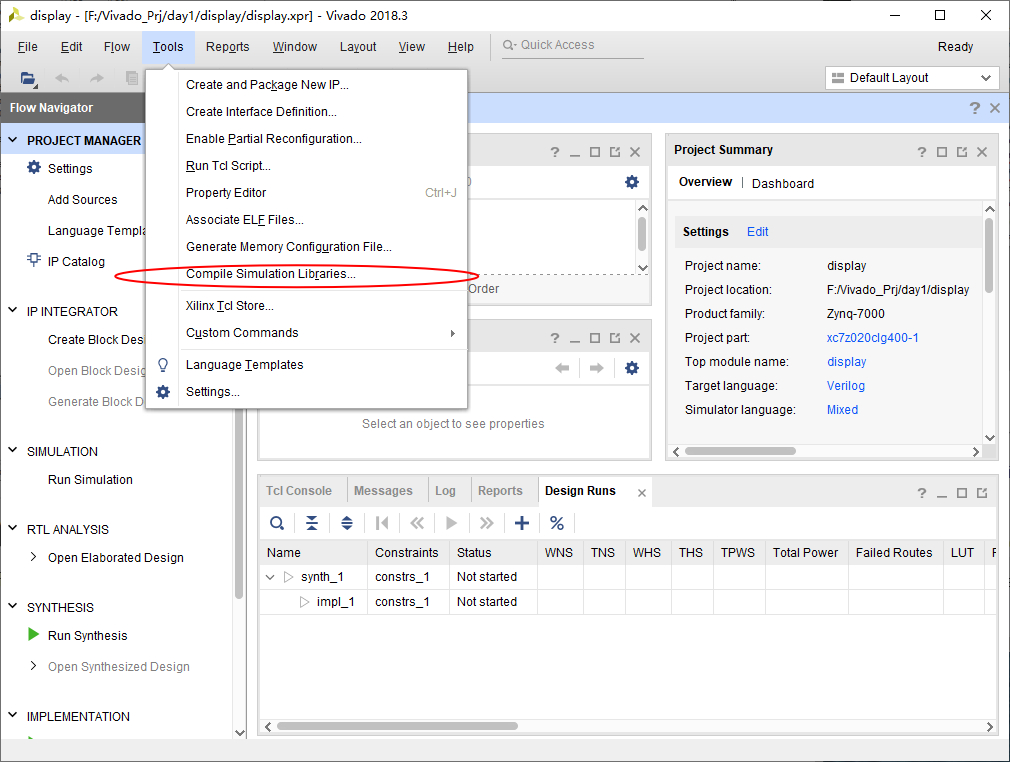

(1)、打开任意一个vivado工程，再按下图所示点击编译Xilinx的仿真库。

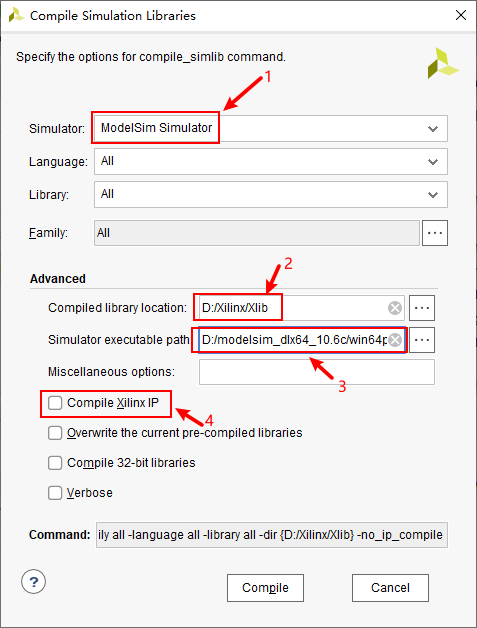

注意：Simulator选Modelsim Simulator，编译库Compiled library location放入新建的文件夹https://www.gofarlic.com\Xilinx\Xlib中(可自己指定)，Simulator executable path选择modelsim安装路径下的win64pe。注意Compile Xilinx IP选项不勾选。

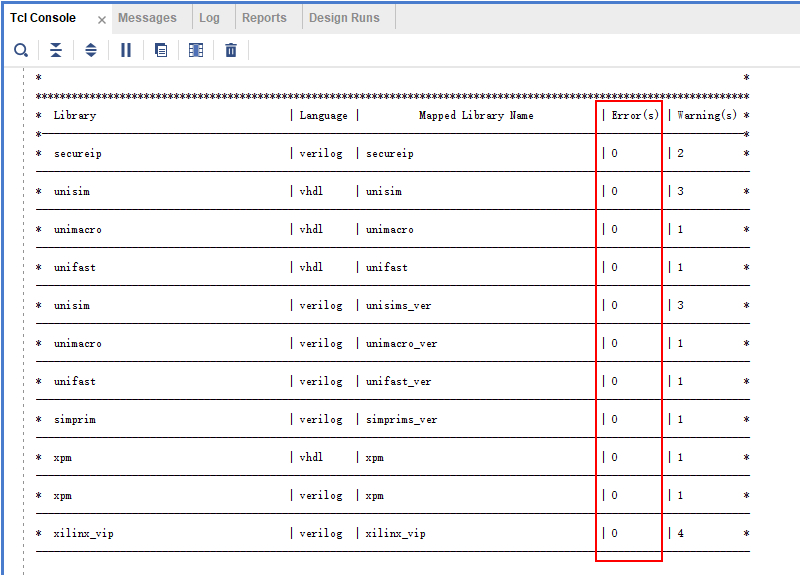

编译结果从Vivado中的Tcl Console中可知，无Errors，芜湖起飞！

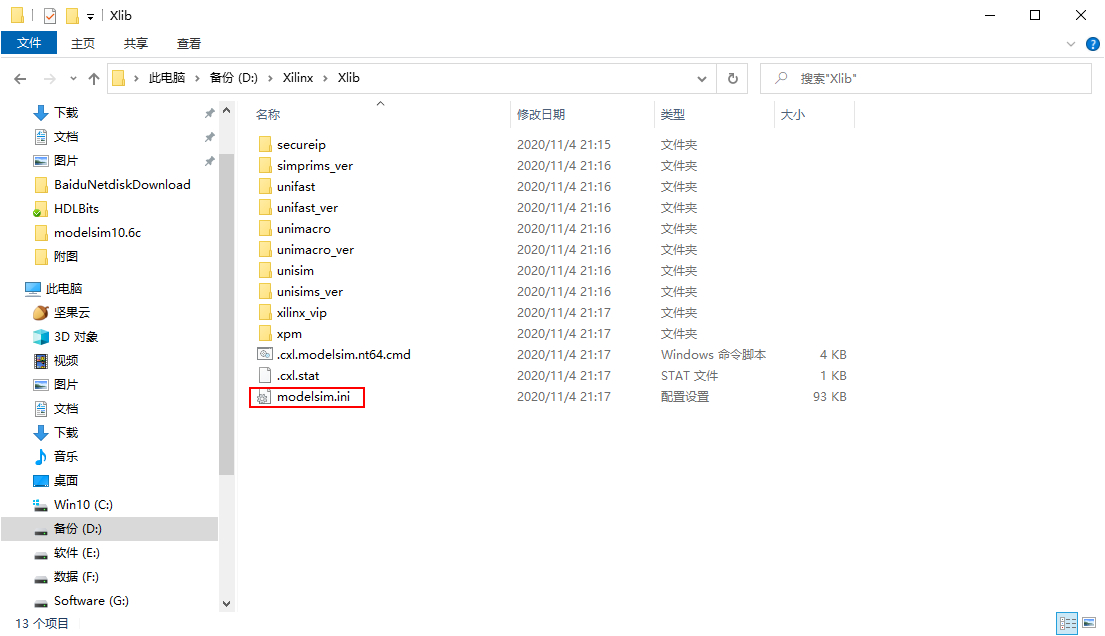

(2)查看编译库Compiled library location路径下，应该出现modelsim.ini文件。

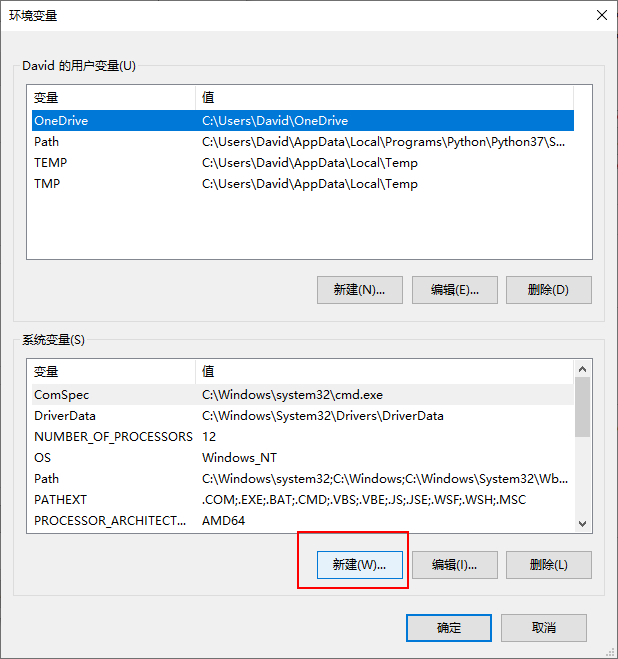

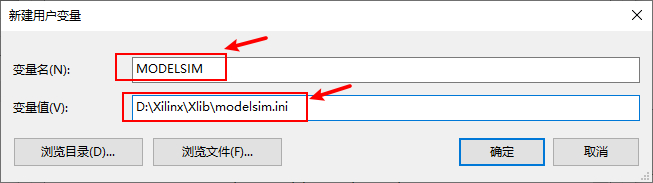

我们将其设置为用户的全局变量，这样下次就不需要再编译库文件了，步骤如下图所示：

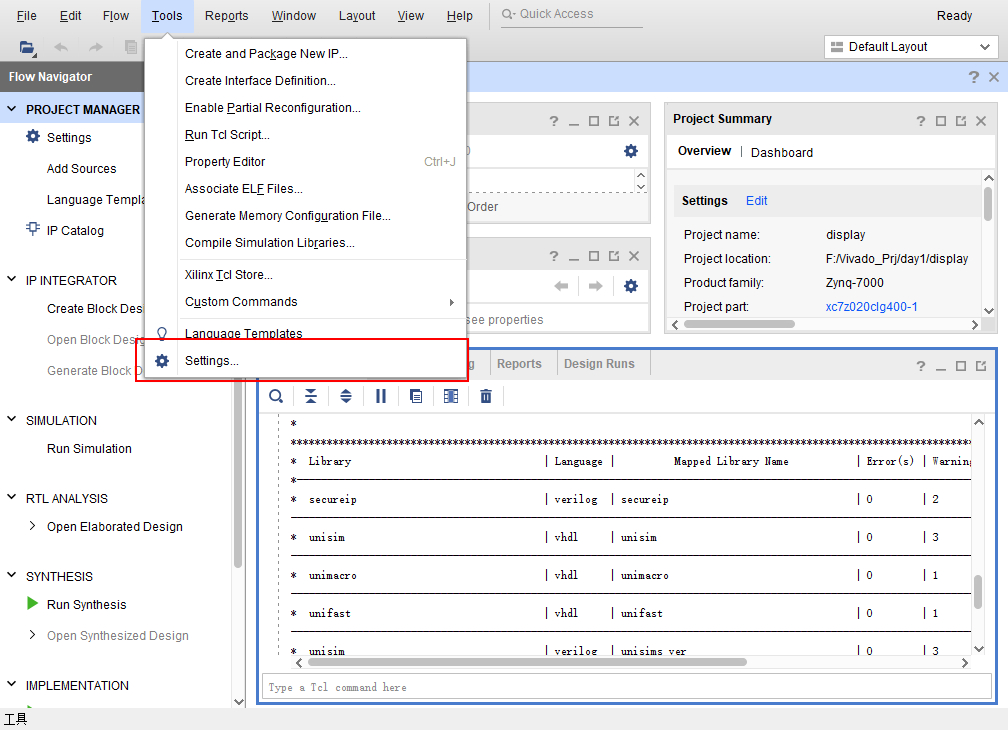

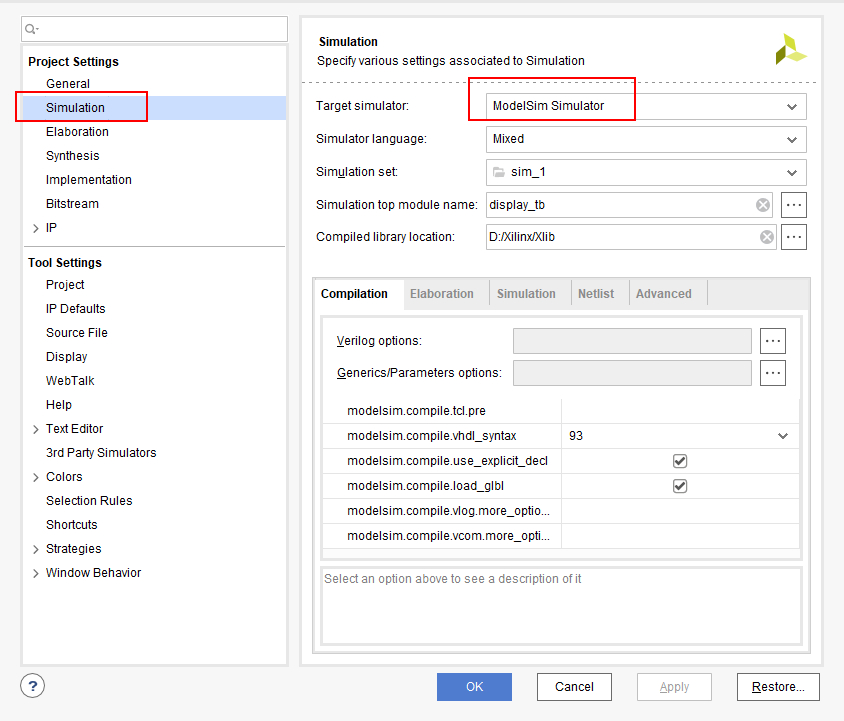

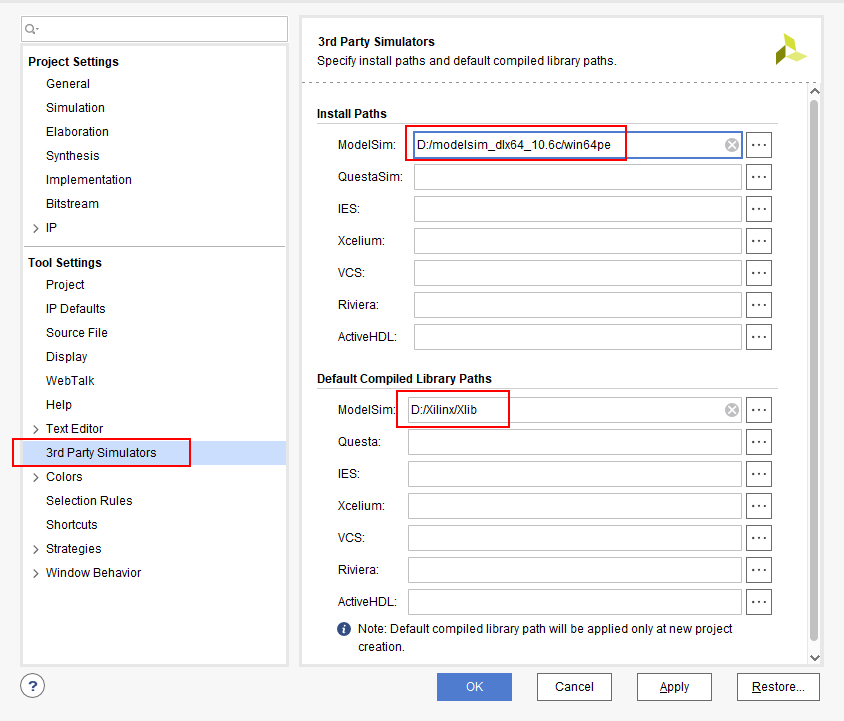

(3)、设置第三方仿真软件的安装路径与编译库的路径，具体步骤如下图所示

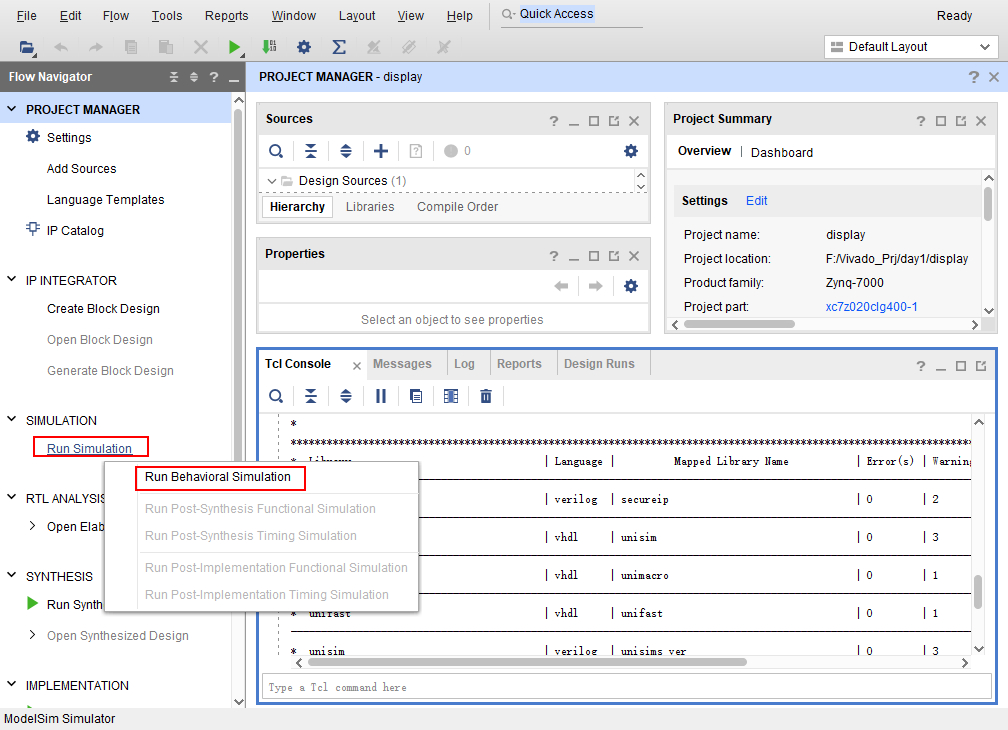

(4)、全部准备就绪后，点击Run Simulation中的Run Behavioral Simulation。

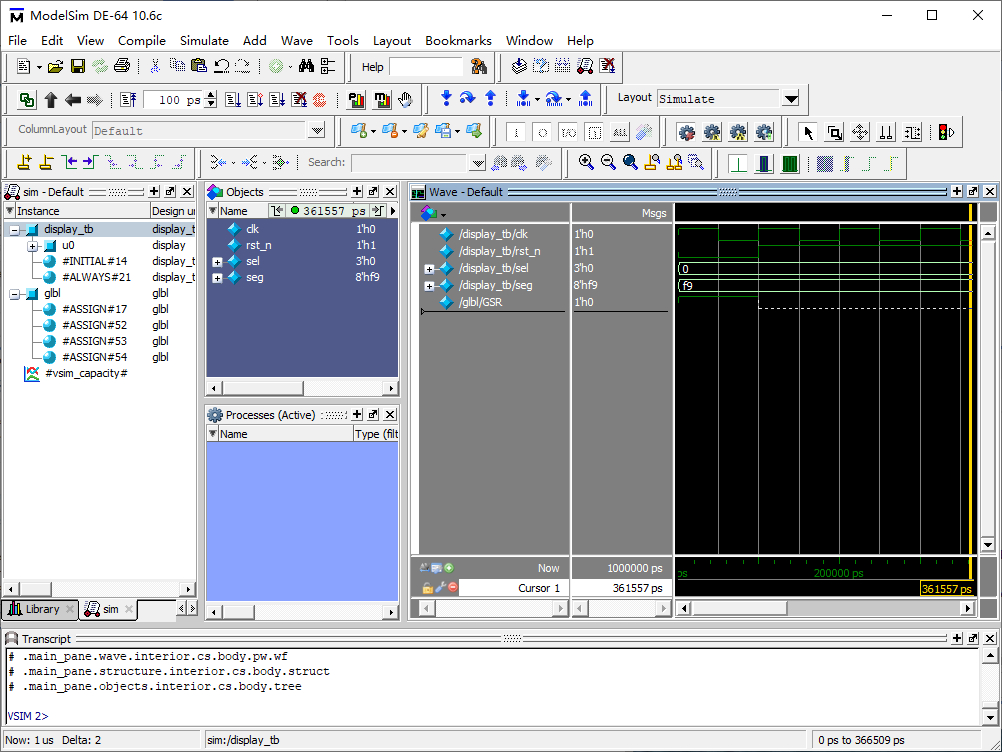

自动弹出Modelsim，并显示波形，游戏结束。

Vivado与Modelsim对应版本

Vivado Design Suite 2018.3

Mentor Graphics ModelSim SE /DE/PE (10.6c)

Mentor Graphics Questa Advanced Simulator (10.6c)
Cadence Incisive Enterprise Simulator (IES) (15.20.053)

Cadence Xcelium Parallel Simulator (18.03.005)

Synopsys VCS and VCS MX (N-2017.12-SP2)

Aldec Active-HDL (10.5) Aldec Riviera-PRO (2018.02)

Vivado Design Suite 2018.2

Mentor Graphics ModelSim SE/DE/PE (10.6c)

Mentor Graphics Questa Advanced Simulator (10.6c)

Cadence Incisive Enterprise Simulator (IES) (15.20.042)

Cadence Xcelium Parallel Simulator (17.10.005)

Synopsys VCS and VCS MX (N-2017.12)

Aldec Active-HDL (10.4a) Aldec Riviera-PRO (2017.10)

Vivado Design Suite 2018.1

Vivado Design Suite 2017.4

Mentor Graphics ModelSim SE/DE/PE (10.6b)

Mentor Graphics Questa Advanced Simulator (10.6b)

Cadence Incisive Enterprise Simulator (IES) (15.20.028)

Synopsys VCS and VCS MX (M-2017.03-SP1)

Aldec Active-HDL (10.4a) Aldec Riviera-PRO (2017.02)

Vivado Design Suite 2017.3

Vivado Design Suite 2017.2

Mentor Graphics ModelSim SE/DE/PE (10.5c)

Mentor Graphics Questa Advanced Simulator (10.5c)

Cadence Incisive Enterprise Simulator (IES) (15.20.014)

Synopsys VCS and VCS MX (L-2016.06-SP1)

Aldec Active-HDL (10.4) Aldec Riviera-PRO (2016.10)

Vivado Design Suite 2017.1

Vivado Design Suite 2016.4

Mentor Graphics ModelSim SE/DE/PE (10.5c)

Mentor Graphics Questa Advanced Simulator (10.5c)

Cadence Incisive Enterprise Simulator (IES) (15.20.005)

Synopsys VCS and VCS MX (L-2016.06)

Aldec Active-HDL (10.3) Aldec Riviera-PRO (2016.06)

Vivado Design Suite 2016.3

Vivado Design Suite 2016.2, 2016.1

Mentor Graphics ModelSim SE/DE/PE (10.4d)

Mentor Graphics Questa Advanced Simulator (10.4d)

Cadence Incisive Enterprise Simulator (IES) (15.10.013)

Synopsys VCS and VCS MX (K-2015.09)

Aldec Active-HDL (10.3) Aldec Riviera-PRO (2015.10)

Vivado Design Suite 2015.4, 2015.3

Mentor Graphics ModelSim SE/DE/PE (10.4b)

Mentor Graphics Questa Advanced Simulator (10.4b)

Cadence Incisive Enterprise Simulator (IES) (14.20.006)

Synopsys VCS and VCS MX (J-2014.12-SP2)

Aldec Active-HDL (10.2 SP2) Aldec Riviera-PRO (2015.06)

Vivado Design Suite 2015.2, 2015.1

Mentor Graphics ModelSim SE/DE/PE (10.3d)

Mentor Graphics Questa Advanced Simulator (10.3d)

Cadence Incisive Enterprise Simulator (IES) (14.10.011)

Synopsys VCS and VCS MX (I-2014.03-SP1)

Aldec Active-HDL (10.1 SP1) Aldec Riviera-PRO (2015.02)

Vivado Design Suite 2014.4

Mentor Graphics ModelSim SE/DE/PE (10.3b)

Mentor Graphics Questa Advanced Simulator (10.3b)

Cadence Incisive Enterprise Simulator (IES) (13.20.005)

Synopsys VCS and VCS MX (I-2014.03)

Aldec Active-HDL (9.3 SP1) Aldec Riviera-PRO (2014.02)

Vivado Design Suite 2014.3

Vivado Design Suite 2014.2, 2014.1

Mentor Graphics ModelSim SE/DE/PE (10.2a)

Mentor Graphics Questa Advanced Simulator (10.2a)

Cadence Incisive Enterprise Simulator (IES) (12.2-016)

Synopsys VCS and VCS MX (H-2013.06-SP1)

Aldec Active-HDL (9.3 SP1) Aldec Riviera-PRO (2014.02)

Vivado Design Suite 2013.4

Mentor Graphics ModelSim SE/DE/PE (10.2a)

Mentor Graphics Questa Advanced Simulator (10.2a)

Cadence Incisive Enterprise Simulator (IES) (12.2-016)

Synopsys VCS and VCS MX (H-2013.06)

Aldec Active-HDL (9.2 SP1) Aldec Riviera-PRO (2013.06)

Vivado Design Suite 2013.3

Mentor Graphics ModelSim SE/DE/PE (10.2a)

Mentor Graphics Questa Advanced Simulator (10.2a)

Cadence Incisive Enterprise Simulator (IES) (12.2-016)

Synopsys VCS and VCS MX (H-2013.06-3)

Aldec Active-HDL (9.2) Aldec Riviera-PRO (2013.02)

Vivado Design Suite 2013.1, 2013.2

Mentor Graphics ModelSim SE/DE/PE (10.1b)

Mentor Graphics Questa Advanced Simulator (10.1b)

Cadence Incisive Enterprise Simulator (IES) (12.2)

Synopsys VCS and VCS MX (G-2012.09)

Aldec Active-HDL (9.2) Aldec Riviera-PRO (2012.10)
