Citrix ADC固件升级教程

一、官网下载固件

Citrix Secure Sign In

   下载固件“bulid-13.1-49_nc_64.tgz"‘

二、 后台 上传并运行

1. 上传固件

SSH登录后台（用户名密码与 web 一致）

Warning: You are connected to a secondary node; configuration changes made in this session will not be propagated to, or saved on, other nodes (Primary node is 10.18.18.126)
Warning: One or more RPC nodes are configured with default passwords. For enhanced security, you must change the default RPC node password.
Done
> shell                                                            ###shell
root@DC1-OAS-CTX-LB-01#

2. 查看现有固件

root@DC1-OAS-CTX-LB-01# ls /var/nsinstall/
13.1                            build-12.1-62.25_nc_64.tgz      installns_state
build-13.1-33.52_nc_64          build-13.0-90.7_nc_64           installns_state_post_reboot
adc.version                     build-13.1-33.52_nc_64

3. 上传解压

root@DC1-OAS-CTX-LB-01# mkdir 13_1_49_13nsinstall

root@DC1-OAS-CTX-LB-01# cd  13_1_49_13nsinstall
root@DC1-OAS-CTX-LB-01# ls                                      ###sftp上传至此目录
build-13.1-49.13_nc_64.tgz

root@DC1-OAS-CTX-LB-01# tar -zxvf build-13.1-49.13_nc_64.tgz    ###解压




root@DC1-OAS-CTX-LB-01# ls
.ns.version                             gnostic.tgz                             nsepa32.deb
AGEE_setup.exe                          golang.tgz                              nsepa32.rpm
BaltimoreCyberTrustRoot.cert            help.tgz                                nsepa_setup.exe
BaltimoreCyberTrustRoot_CH.cert         help_cisco.tgz                          nsgclient18_64.deb
Citrix_Endpoint_Analysis.dmg            inCompass-db-files.tgz                  nsgclient32.deb
LoginSchema.tgz                         installns                               nsgclient32susesp1.rpm
LogonPoint.tgz                          invalid_config_check_files.tgz          nsgclient32susesp3.rpm
MacLibs.zip                             libnitrocli.tgz                         nsgclient64.deb
NSConfig.wsdl                           licservverify                           nsgclient64sled12.rpm
NSStat.wsdl                             mastools_scripts.tgz                    nsgclient64susesp1.rpm
OTP_tool.tgz                            ns-13.1-49.13-gui.tar                   nsgclient64susesp3.rpm
adc-root-certs.crt                      ns-13.1-49.13-nitro-csharp.tgz          nsginstaller18_64.deb
apidoc.tgz                              ns-13.1-49.13-nitro-go.tgz              nsginstaller32.deb
app_catalog.tgz                         ns-13.1-49.13-nitro-java.tgz            nsginstaller32.rpm
azureagent.tgz                          ns-13.1-49.13-nitro-oas.tgz             nsginstaller64.deb
azureautoconfig.tgz                     ns-13.1-49.13-nitro-perl-samples.tgz    nsginstaller64.rpm
bootloader.tgz                          ns-13.1-49.13-nitro-powershell.tgz      open-vm-tools.tgz
build-13.1-49.13_nc_64.tgz              ns-13.1-49.13-nitro-python.tgz          perl5.tar
cis.citrix.com.pem                      ns-13.1-49.13-nitro-rest.tgz            plugin.tar
clientversions.xml                      ns-13.1-49.13.gz                        python.tgz
cloudautoscale.tgz                      ns-13.1-49.13.gz.sha512.signed          reference_schema.json
cloudhadaemon.tgz                       ns-13.1-49.13.sha2                      safenet_dirs.tar
config_wipe_01_10_23.tgz                nsconfig                                schema.json
epaPackage.exe                          nsepa.deb                               skf
epamacversion.txt                       nsepa.rpm                               thales_dirs.tar
err_msg                                 nsepa18.deb

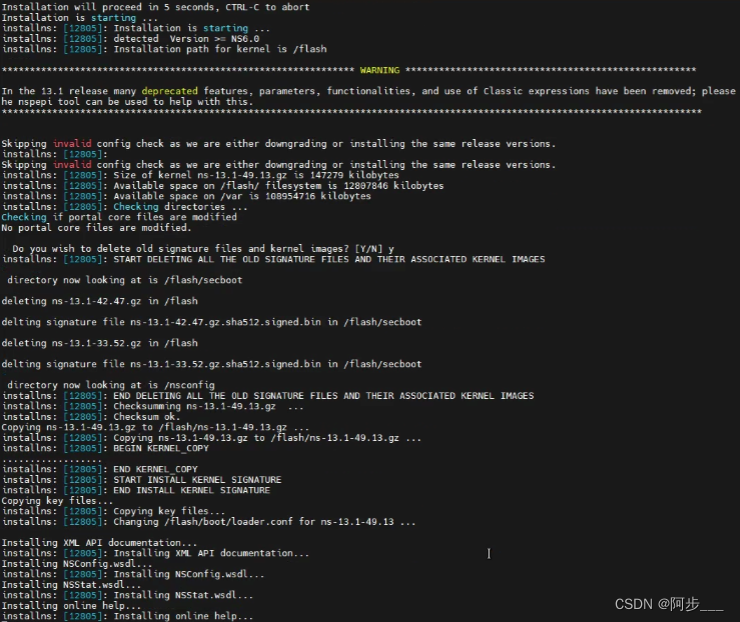

4. 运行 installns

root@DC1-OAS-CTX-LB-01# ./installns

三、查看 系统 版本
