MATLAB C++空间交会：前方交会算法实现

clc
clear
close all
tic
%内方位元素
x0 = 0;
y0 = 0;
f = 0.0015291;
%两像片外方位元素（Xs,Ys,Zs,phi,w,kappa）L记录左片，R记录右片
XsYsZsL = [970302.448784,-1138644.971216,3154.584941]';PWKL = [0.010425,-0.012437,0.003380];
XsYsZsR = [971265.303768,-1138634.245942,3154.784258]';PWKR = [0.008870,-0.005062,-0.008703];
%像点坐标l，r
l = [0.00153,0.091798]';
r = [-0.078672,0.089122]';
%分别求左右的旋转矩阵
Rl = getR(PWKL(1),PWKL(2),PWKL(3));
Rr = getR(PWKR(1),PWKR(2),PWKR(3));
%求摄影基线分量(竖着下来是 u，v，w)
B =  XsYsZsR - XsYsZsL;
%求像空间辅助坐标
uvwl = Rl*[l;-f];
uvwr = Rr*[r;-f];
%求投影系数公式比较简单，而且只用成对算，所以不用写函数了
N1 = (B(1)*uvwr(3) - B(3)*uvwr(1))/(uvwl(1)*uvwr(3)-uvwr(1)*uvwl(3));
N2 = (B(1)*uvwl(3) - B(3)*uvwl(1))/(uvwl(1)*uvwr(3)-uvwr(1)*uvwl(3));
%计算待定点地面摄影测量坐标
%先求UVW
UVWL = N1*uvwl;
UVWR = N2*uvwr;
%再求XYZ取平均，可以加条件判定是否正确
format longG
XYZL = XsYsZsL+ UVWL
XYZR = XsYsZsR+ UVWR
XYZ_ba = 1/2*(XYZL + XYZR)
toc

function [R] = getR(phi,w,kappa)
%此函数传入phi，w，kappa旋转系数，返回旋转矩阵
a1 = cos(phi)* cos(kappa) - sin(phi)* sin(w)* sin(kappa);
a2 = -cos(phi)* sin(kappa) - sin(phi)* sin(w)* cos(kappa);
a3 = -sin(phi)* cos(w);
b1 = cos(w)* sin(kappa);
b2 = cos(w)* cos(kappa);
b3 = -sin(w);
c1 = sin(phi)*cos(kappa) + cos(phi)* sin(w)*sin(kappa);
c2 = -sin(phi)*sin(kappa) + cos(phi)*sin(w)*cos(kappa);
c3 = cos(phi)*cos(w);
R = [a1,a2,a3;
    b1,b2,b3;
    c1,c2,c3];
end

#pragma once
#include "Eigen/Dense"
//结构体存储左片和右片的点
struct PosePoint;
typedef std::shared_ptr<struct PosePoint> PtrToPP;//定义为智能指针

struct PosePoint
{
	double Xs, Ys, Zs,//存储像片的像空间坐标系的原点坐标
		phi, w, kappa, //存储φ w κ
		x, y; // 像点坐标
};
//前方交会类
class Forward_Intersection
{
public :
	Forward_Intersection();
	Forward_Intersection(const double &x0 , const double &y0 , const double &f ,PtrToPP pl,PtrToPP pr);//传入两个点的指针的构造函数
	//求旋转矩阵，返回旋转矩阵
	Eigen::Matrix3d
		getR(Eigen::Vector3d &PWK);
	//开始计算，返回装有xy的向量
	Eigen::Vector3d
		startCalculation();
private :
	double x0,//内方位元素
		y0,
		f;
	Eigen::Vector3d PWKL;//列向量存储左片φ w κ
	Eigen::Vector3d PWKR;//列向量存储右片φ w κ
	Eigen::Vector3d XsYsZsL;//列向量存储左片的像空间坐标系的原点坐标
	Eigen::Vector3d XsYsZsR;//列向量存储左片的像空间坐标系的原点坐标
	Eigen::Vector3d l ;//左片像点坐标
	Eigen::Vector3d r ;//右片像点坐标
};

#include"Forward_Intersection.h"


Forward_Intersection::Forward_Intersection() {}
Forward_Intersection::Forward_Intersection(const double& x0, const double& y0, const double& f, PtrToPP pl, PtrToPP pr)
	:x0(x0),y0(y0),f(f)
{
	//把左右点的数据存入对应向量中
	this->PWKL << pl->phi,
				pl->w,
				pl->kappa;
	this->PWKR << pr->phi,
				pr->w,
				pr->kappa;
	this->XsYsZsL << pl->Xs,
				pl->Ys,
				pl->Zs;
	this->XsYsZsR << pr->Xs,
				pr->Ys,
				pr->Zs;
	this->l << pl->x ,
			pl->y,
			-this->f;
	this->r << pr->x,
			pr->y,
			-this->f;
}
//求旋转矩阵
Eigen::Matrix3d
Forward_Intersection::getR(Eigen::Vector3d &PWK)
{
	double a1, a2, a3, b1, b2, b3, c1, c2, c3;
	Eigen::Matrix3d R;
	a1 = cos(PWK(0)) * cos(PWK(2)) - sin(PWK(0)) * sin(PWK(1)) * sin(PWK(2));
	a2 = -cos(PWK(0)) * sin(PWK(2)) - sin(PWK(0)) * sin(PWK(1)) * cos(PWK(2));
	a3 = -sin(PWK(0)) * cos(PWK(1));
	b1 = cos(PWK(1)) * sin(PWK(2));
	b2 = cos(PWK(1)) * cos(PWK(2));
	b3 = -sin(PWK(1));
	c1 = sin(PWK(0)) * cos(PWK(2)) + cos(PWK(0)) * sin(PWK(1)) * sin(PWK(2));
	c2 = -sin(PWK(0)) * sin(PWK(2)) + cos(PWK(0)) * sin(PWK(1)) * cos(PWK(2));
	c3 = cos(PWK(0)) * cos(PWK(1));
	R << a1, a2, a3,
		b1, b2, b3,
		c1, c2, c3;
	return R;
}
Eigen::Vector3d
Forward_Intersection::startCalculation()
{
	//旋转矩阵
	Eigen::Matrix3d Rl, Rr;
	//摄影基线分量（uvw）
	Eigen::Vector3d B;
	//像空间辅助坐标(左和右)
	Eigen::Vector3d uvwl, uvwr;
	//投影系数
	double N1, N2;
	Eigen::Vector3d UVWL, UVWR;
	Eigen::Vector3d XYZL, XYZR, XYZ_ba;
	//求旋转矩阵
	Rl = getR(this->PWKL);
	Rr = getR(this->PWKR);
	//求摄影基线分量(竖着下来是 u，v，w)
	B = this->XsYsZsR - this->XsYsZsL;
	//求像空间辅助坐标
	uvwl = Rl * l;
	uvwr = Rr * r;
	//求投影系数
	N1 = (B(0) * uvwr(2) - B(2) * uvwr(0)) / (uvwl(0) * uvwr(2) - uvwr(0) * uvwl(2));
	N2 = (B(0) * uvwl(2) - B(2) * uvwl(0)) / (uvwl(0) * uvwr(2) - uvwr(0) * uvwl(2));
	//先求UVW
	UVWL = N1 * uvwl;
	UVWR = N2 * uvwr;
	//求坐标
	XYZL = this->XsYsZsL + UVWL;
	XYZR = this->XsYsZsR + UVWR;
	XYZ_ba = (XYZL + XYZR);//不能用除号，不知道为啥，好像有什么大病
	return XYZ_ba*0.5;
}

PtrToPP p1 = make_shared<PosePoint>();
PtrToPP p2 = make_shared<PosePoint>();
p1->Xs = 970302.448784; p1->Ys = -1138644.971216; p1->Zs = 3154.584941;
p2->Xs = 971265.303768; p2->Ys = -1138634.245942; p2->Zs = 3154.784258;
p1->phi = 0.010425; p1->w = -0.012437; p1->kappa = 0.003380;
p2->phi = 0.008870; p2->w = -0.005062; p2->kappa = -0.008703;
p1->x = 0.00153; p1->y = 0.091798;
p2->x = -0.078672; p2->y = 0.089122;

clock_t startTime, endTime;
startTime = clock();//计时开始
Forward_Intersection fi = Forward_Intersection(0, 0, 0.0015291,p1,p2);
Eigen::Vector3d res;
res = fi.startCalculation();

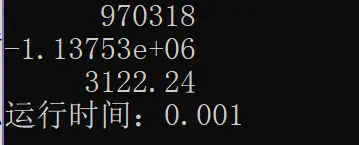

cout << res << endl;
endTime = clock();//计时结束
cout << "运行时间：" << (double)(endTime - startTime) / CLOCKS_PER_SEC << endl;
int temp;
cin >> temp;
