1. 创建一个 Plane —— 作为镜子

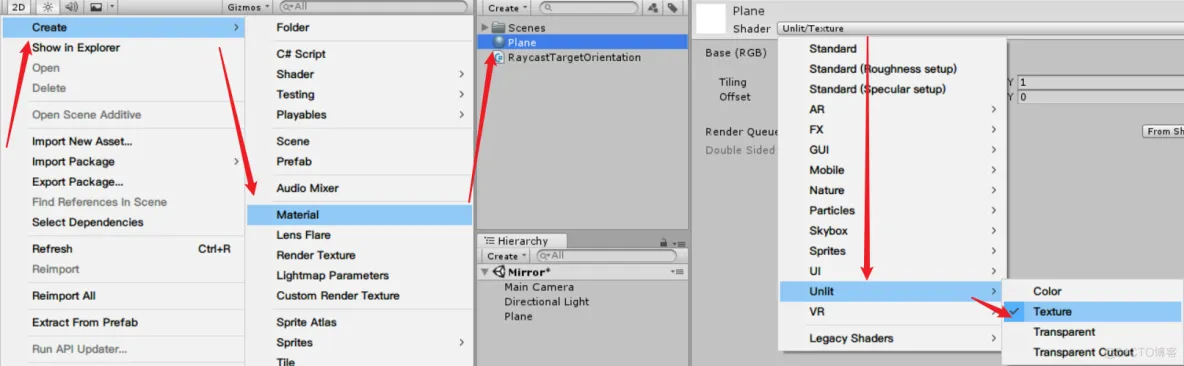

2. 创建一个材质球 Material —— 给到 Plane 上

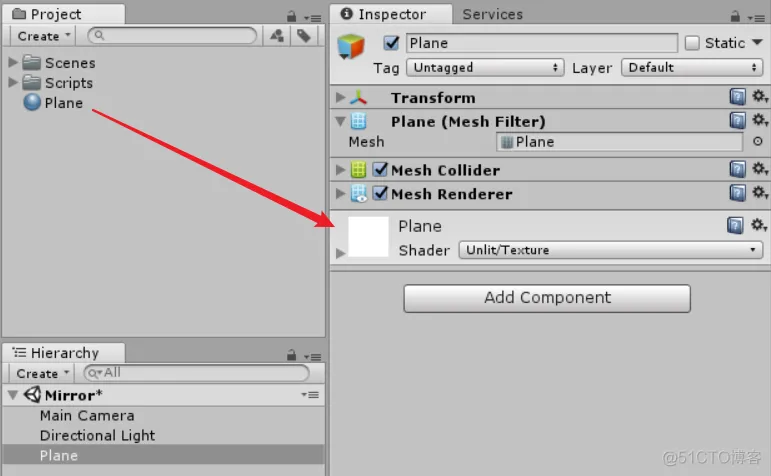

3. 修改新创建 Material 的 Shader 为 Unlit/Texture

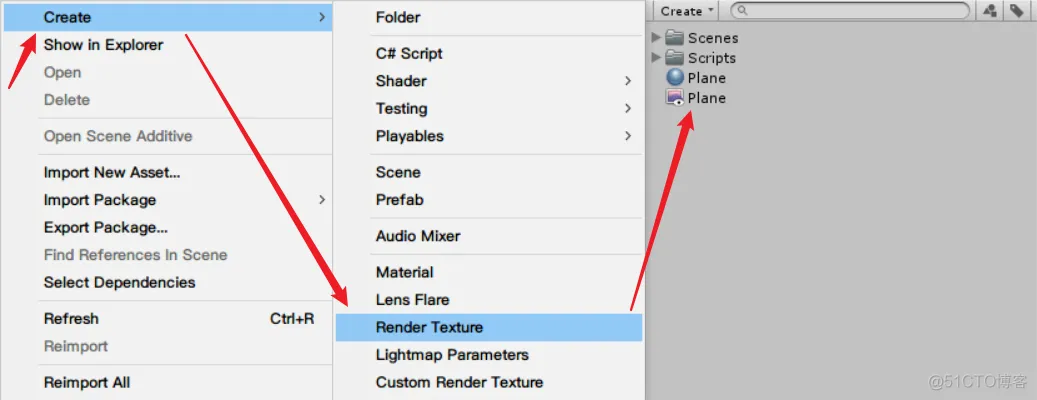

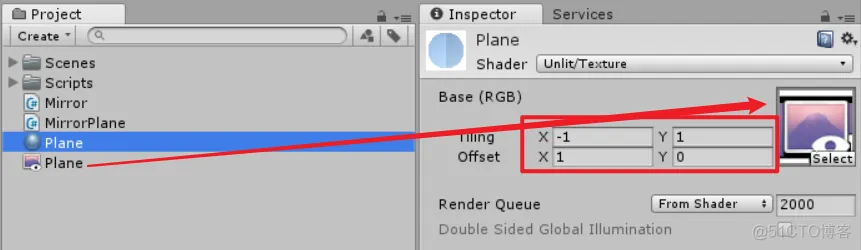

1. 新建一个 Render Texture(这里重新命名为 Plane 便于区分和理解)

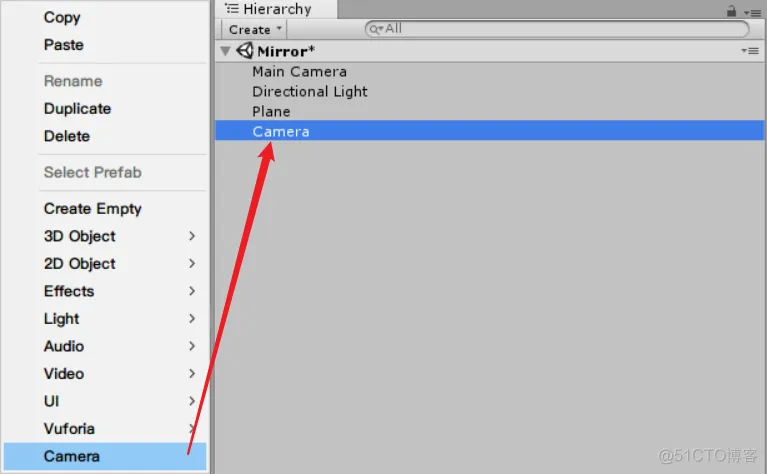

2. 在层次列表Hierarchy 下创建一个新的 Camera

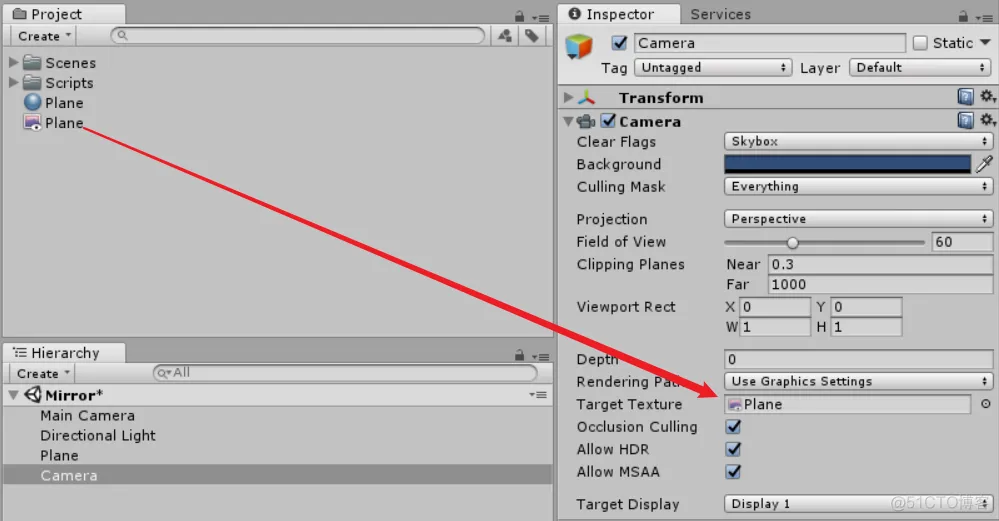

3. 将新建的 Render Texture(Plane)给新 Camera 组件中的 Target Texture

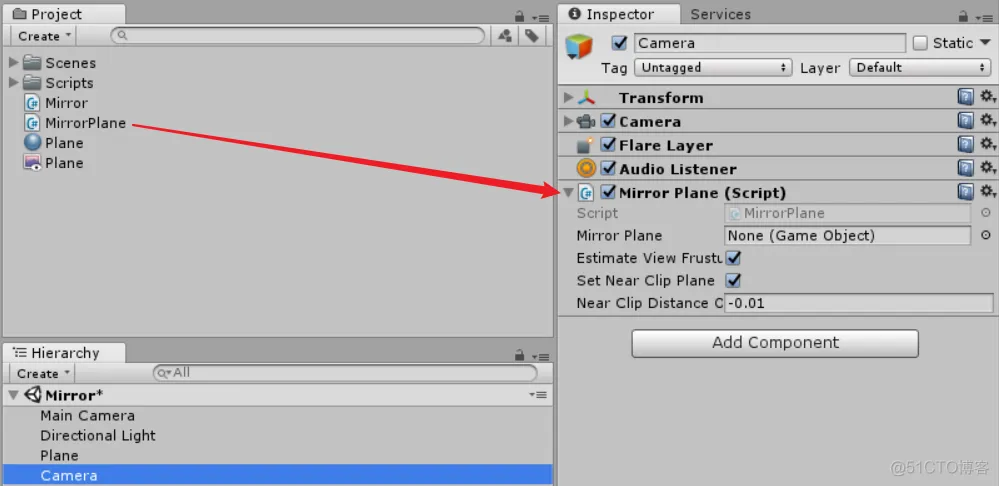

4. 给 Camera相机,添加脚本 MirrorPlane
并将 Plane 拖到 Inspector 面板中对应的属性里

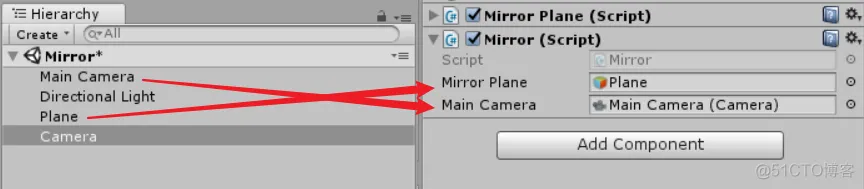

5. 给新 Camera相机,添加脚本 Mirror
并将Main Camera与 Plane 拖至 Inspector 面板中
两个脚本,具体代码如下 :
登录后复制
1 using UnityEngine;
2
3 /// <summary>
4 /// Plane管理脚本 —— 挂载新建的Camera上
5 /// </summary>
6 [ExecuteInEditMode] //编辑模式中执行
7 public class MirrorPlane : MonoBehaviour
8 {
9 public GameObject mirrorPlane; //镜子Plane
10 public bool estimateViewFrustum = true;
11 public bool setNearClipPlane = true; //是否设置*剪切*面
12 public float nearClipDistanceOffset = -0.01f; //*剪切*面的距离
13 private Camera mirrorCamera; //镜像摄像机
14 private Vector3 vn; //屏幕的法线
15 private float l; //到屏幕左边缘的距离
16 private float r; //到屏幕右边缘的距离
17 private float b; //到屏幕下边缘的距离
18 private float t; //到屏幕上边缘的距离
19 private float d; //从镜像摄像机到屏幕的距离
20 private float n; //镜像摄像机的*剪切面的距离
21 private float f; //镜像摄像机的远剪切面的距离
22 private Vector3 pa; //世界坐标系的左下角
23 private Vector3 pb; //世界坐标系的右下角
24 private Vector3 pc; //世界坐标系的左上角
25 private Vector3 pe; //镜像观察角度的世界坐标位置
26 private Vector3 va; //从镜像摄像机到左下角
27 private Vector3 vb; //从镜像摄像机到右下角
28 private Vector3 vc; //从镜像摄像机到左上角
29 private Vector3 vr; //屏幕的右侧旋转轴
30 private Vector3 vu; //屏幕的上侧旋转轴
31 private Matrix4x4 p = new Matrix4x4();
32 private Matrix4x4 rm = new Matrix4x4();
33 private Matrix4x4 tm = new Matrix4x4();
34 private Quaternion q = new Quaternion();
35
36 private void Start()
37 {
38 mirrorCamera = GetComponent<Camera>();
39 }
40
41 private void Update()
42 {
43 if (null == mirrorPlane || null == mirrorCamera) return;
44 pa = mirrorPlane.transform.TransformPoint(new Vector3(-5.0f, 0.0f, -5.0f)); //世界坐标系的左下角
45 pb = mirrorPlane.transform.TransformPoint(new Vector3(5.0f, 0.0f, -5.0f)); //世界坐标系的右下角
46 pc = mirrorPlane.transform.TransformPoint(new Vector3(-5.0f, 0.0f, 5.0f)); //世界坐标系的左上角
47 pe = transform.position; //镜像观察角度的世界坐标位置
48 n = mirrorCamera.nearClipPlane; //镜像摄像机的*剪切面的距离
49 f = mirrorCamera.farClipPlane; //镜像摄像机的远剪切面的距离
50 va = pa - pe; //从镜像摄像机到左下角
51 vb = pb - pe; //从镜像摄像机到右下角
52 vc = pc - pe; //从镜像摄像机到左上角
53 vr = pb - pa; //屏幕的右侧旋转轴
54 vu = pc - pa; //屏幕的上侧旋转轴
55 if (Vector3.Dot(-Vector3.Cross(va, vc), vb) < 0.0f) //如果看向镜子的背面
56 {
57 vu = -vu;
58 pa = pc;
59 pb = pa + vr;
60 pc = pa + vu;
61 va = pa - pe;
62 vb = pb - pe;
63 vc = pc - pe;
64 }
65 vr.Normalize();
66 vu.Normalize();
67 vn = -Vector3.Cross(vr, vu); //两个向量的叉乘,最后在取负,因为Unity是使用左手坐标系
68 vn.Normalize();
69 d = -Vector3.Dot(va, vn);
70 if (setNearClipPlane)
71 {
72 n = d + nearClipDistanceOffset;
73 mirrorCamera.nearClipPlane = n;
74 }
75 l = Vector3.Dot(vr, va) * n / d;
76 r = Vector3.Dot(vr, vb) * n / d;
77 b = Vector3.Dot(vu, va) * n / d;
78 t = Vector3.Dot(vu, vc) * n / d;
79
80 //投影矩阵
81 p[0, 0] = 2.0f * n / (r - l);
82 p[0, 1] = 0.0f;
83 p[0, 2] = (r + l) / (r - l);
84 p[0, 3] = 0.0f;
85
86 p[1, 0] = 0.0f;
87 p[1, 1] = 2.0f * n / (t - b);
88 p[1, 2] = (t + b) / (t - b);
89 p[1, 3] = 0.0f;
90
91 p[2, 0] = 0.0f;
92 p[2, 1] = 0.0f;
93 p[2, 2] = (f + n) / (n - f);
94 p[2, 3] = 2.0f * f * n / (n - f);
95
96 p[3, 0] = 0.0f;
97 p[3, 1] = 0.0f;
98 p[3, 2] = -1.0f;
99 p[3, 3] = 0.0f;
100
101 //旋转矩阵
102 rm[0, 0] = vr.x;
103 rm[0, 1] = vr.y;
104 rm[0, 2] = vr.z;
105 rm[0, 3] = 0.0f;
106
107 rm[1, 0] = vu.x;
108 rm[1, 1] = vu.y;
109 rm[1, 2] = vu.z;
110 rm[1, 3] = 0.0f;
111
112 rm[2, 0] = vn.x;
113 rm[2, 1] = vn.y;
114 rm[2, 2] = vn.z;
115 rm[2, 3] = 0.0f;
116
117 rm[3, 0] = 0.0f;
118 rm[3, 1] = 0.0f;
119 rm[3, 2] = 0.0f;
120 rm[3, 3] = 1.0f;
121
122 tm[0, 0] = 1.0f;
123 tm[0, 1] = 0.0f;
124 tm[0, 2] = 0.0f;
125 tm[0, 3] = -pe.x;
126
127 tm[1, 0] = 0.0f;
128 tm[1, 1] = 1.0f;
129 tm[1, 2] = 0.0f;
130 tm[1, 3] = -pe.y;
131
132 tm[2, 0] = 0.0f;
133 tm[2, 1] = 0.0f;
134 tm[2, 2] = 1.0f;
135 tm[2, 3] = -pe.z;
136
137 tm[3, 0] = 0.0f;
138 tm[3, 1] = 0.0f;
139 tm[3, 2] = 0.0f;
140 tm[3, 3] = 1.0f;
141
142 mirrorCamera.projectionMatrix = p; //矩阵组
143 mirrorCamera.worldToCameraMatrix = rm * tm;
144 if (!estimateViewFrustum) return;
145 q.SetLookRotation((0.5f * (pb + pc) - pe), vu); //旋转摄像机
146 mirrorCamera.transform.rotation = q; //聚焦到屏幕的中心点
147
148 //估值 —— 三目简写
149 mirrorCamera.fieldOfView = mirrorCamera.aspect >= 1.0 ? Mathf.Rad2Deg *
150 Mathf.Atan(((pb - pa).magnitude + (pc - pa).magnitude) / va.magnitude) :
151 Mathf.Rad2Deg / mirrorCamera.aspect *
152 Mathf.Atan(((pb - pa).magnitude + (pc - pa).magnitude) / va.magnitude);
153 //在摄像机角度考虑,保证视锥足够宽
154 }
155 }
登录后复制
1 using UnityEngine;
2
3 /// <summary>
4 /// 镜子管理脚本 —— 挂在新建的Camera上
5 /// </summary>
6 [ExecuteInEditMode]
7 public class Mirror : MonoBehaviour
8 {
9 public GameObject mirrorPlane; //镜子
10 public Camera mainCamera; //主摄像机
11 private Camera mirrorCamera; //镜像摄像机
12
13 private void Start()
14 {
15 mirrorCamera = GetComponent<Camera>();
16 }
17
18 private void Update()
19 {
20 if (null == mirrorPlane || null == mirrorCamera || null == mainCamera) return;
21 //将主摄像机的世界坐标位置转换为镜子的局部坐标位置
22 Vector3 postionInMirrorSpace = mirrorPlane.transform.
23 InverseTransformPoint(mainCamera.transform.position);
24 //一般y为镜面的法线方向
25 postionInMirrorSpace.y = -postionInMirrorSpace.y;
26 //转回到世界坐标系的位置
27 mirrorCamera.transform.position = mirrorPlane.transform.TransformPoint(postionInMirrorSpace);
28 }
29 }

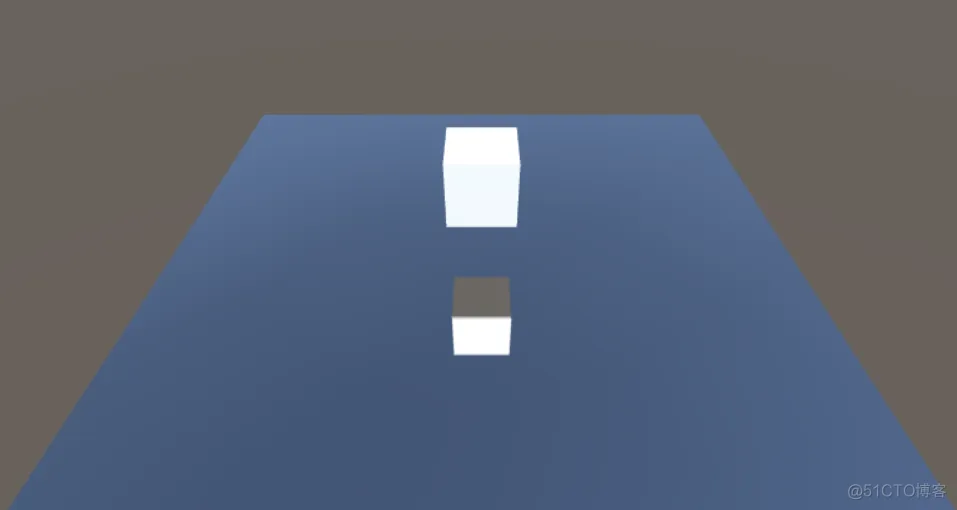

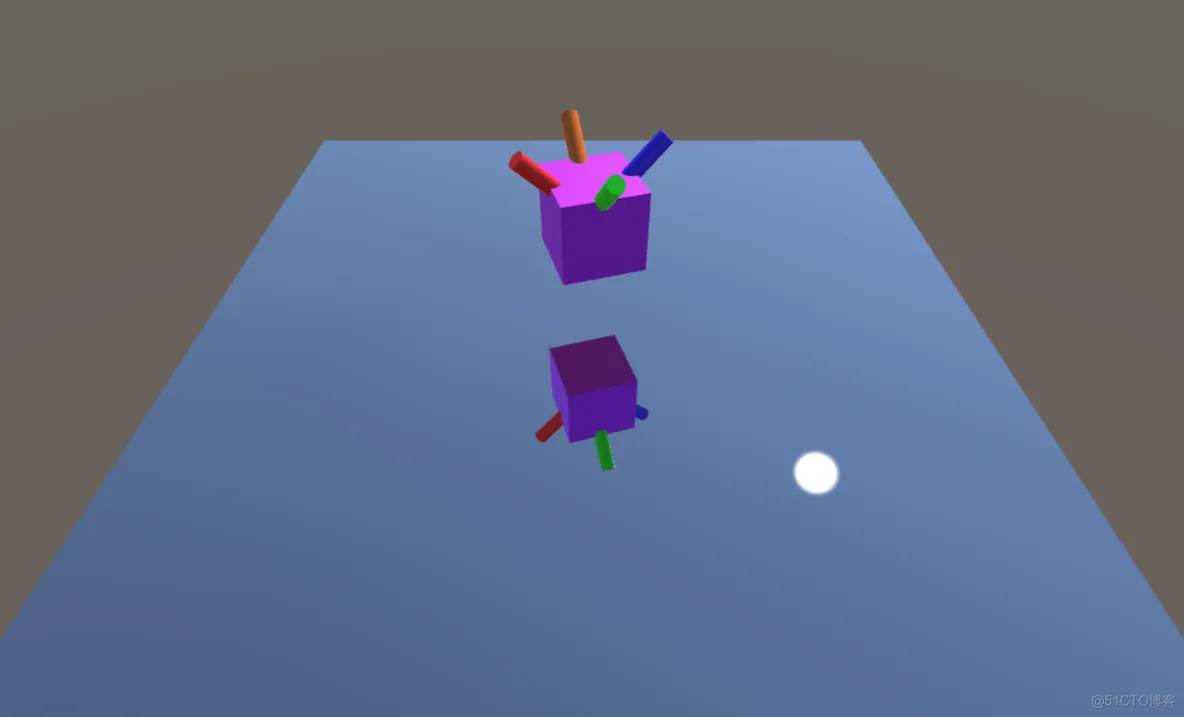

为了看镜子的效果,在场景中创建一个 Cube —— 用来作为参照对象,然后点击运行后,即可看到镜子效果已经完成
如果发现,镜子的显示效果并不清晰,这是因为我们创建的 Render Texture 时使用的是默认的分辨率 256*256,修改成较高的分辨率即可,这里我修改为:1024*1024 (可视情况自己设定)
