恒讯PTC保险丝过流器件方案设计，提供定制化技术支持服务

HX恒讯HENGXUN PTC保险丝过流器件应用推广，提供产品选型设计，以及售后服务，国际品牌配方，性价比高，欢迎设计。

Hengxun Technology (Jiaxing) Co.,Ltd.

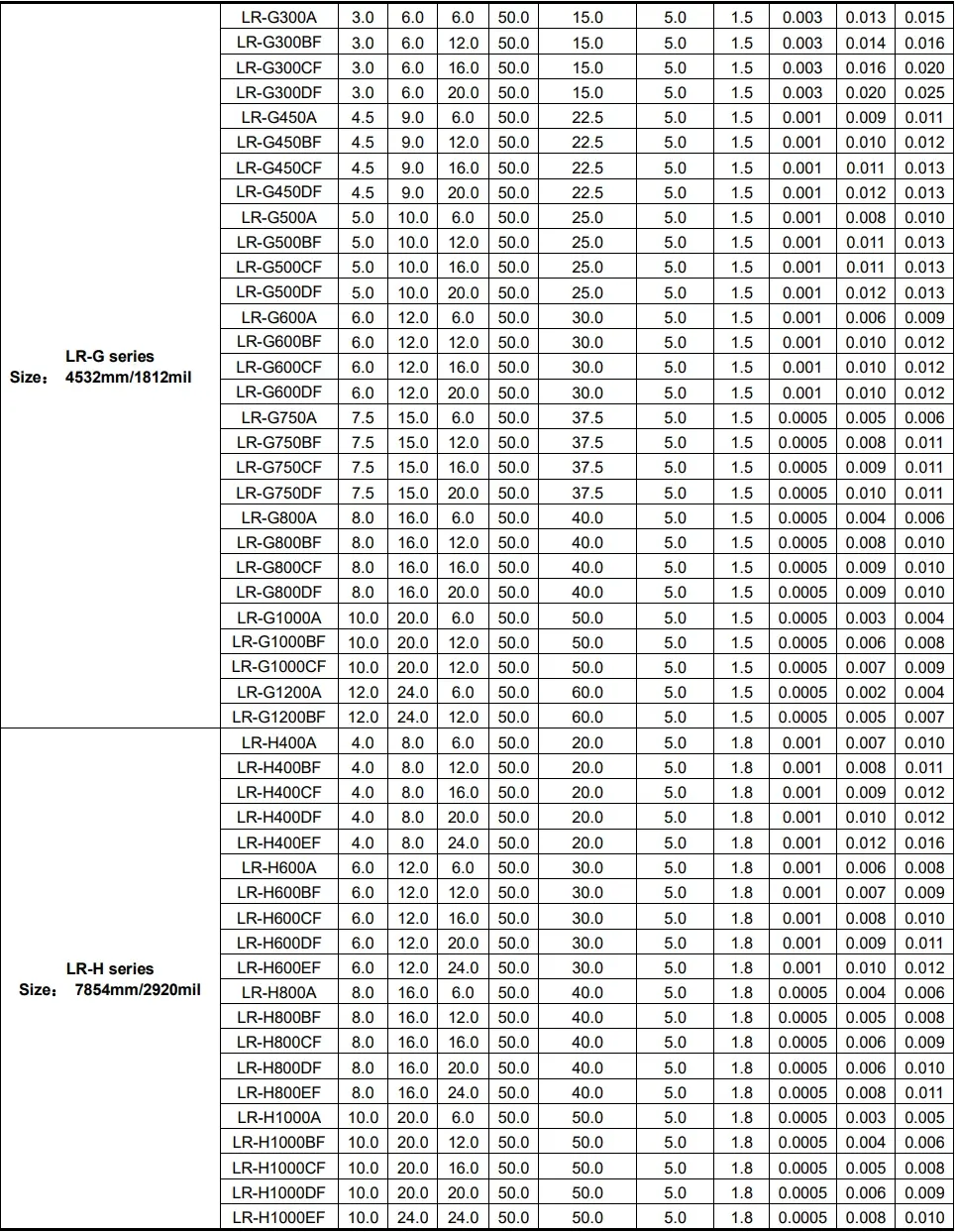

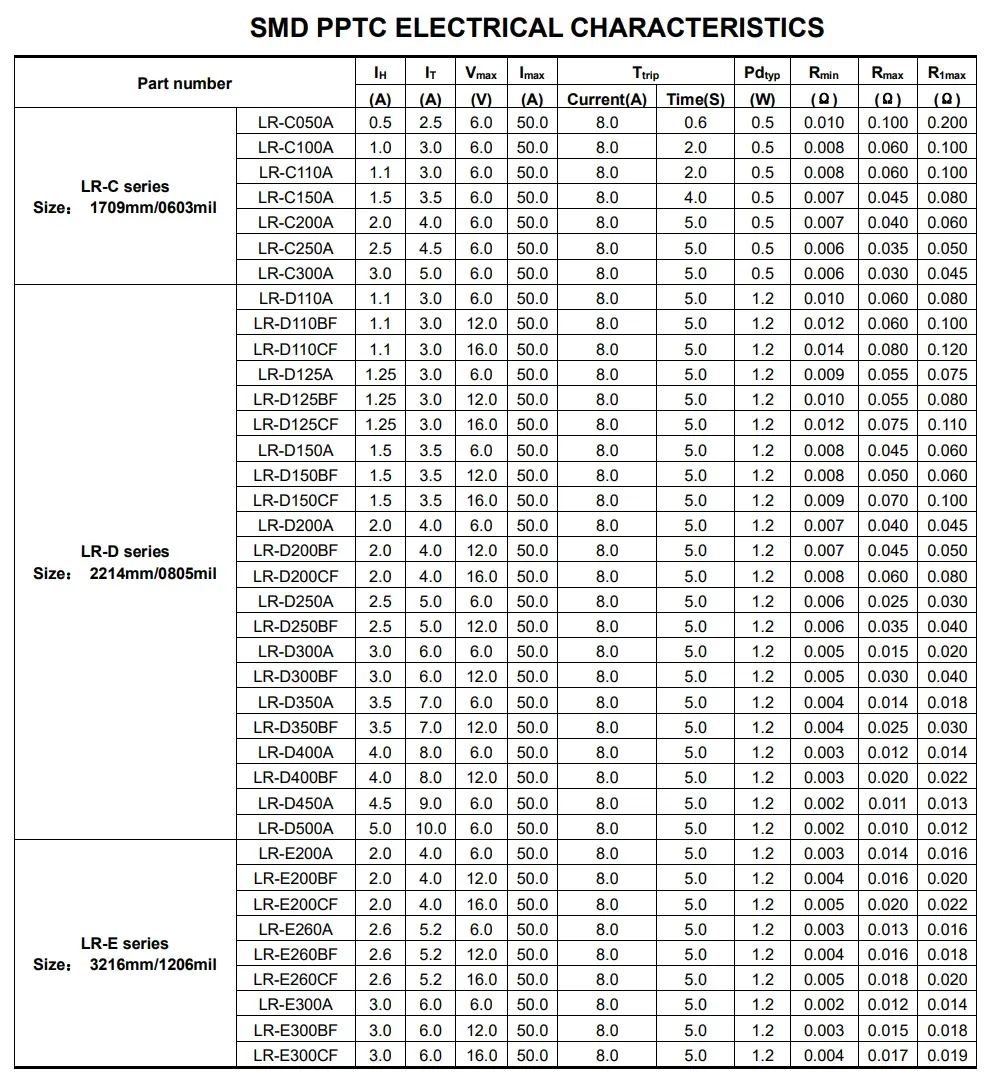

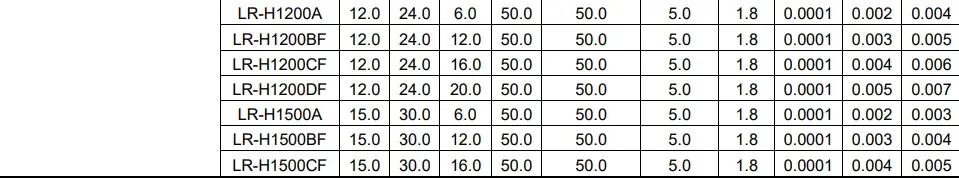

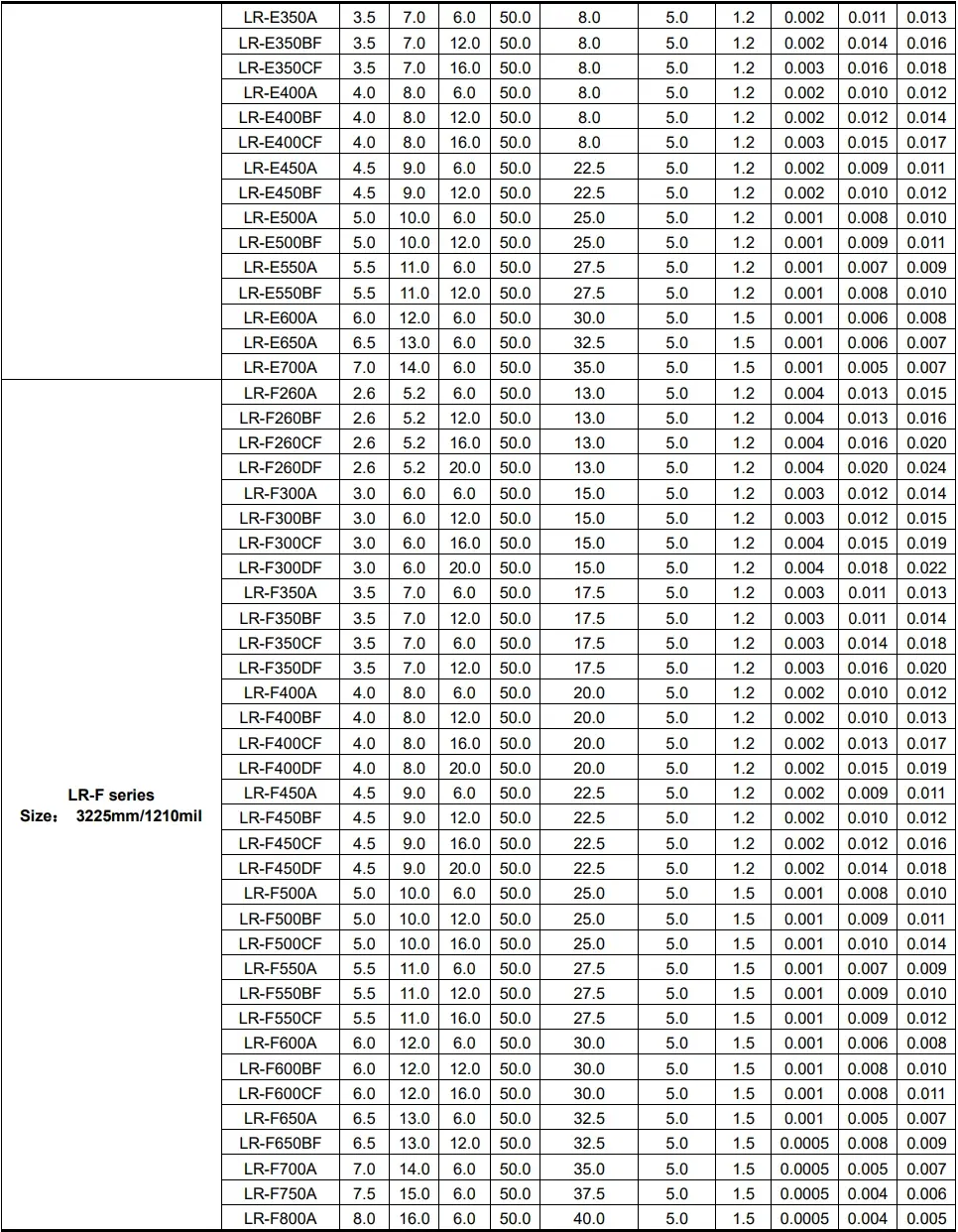

IH=Hold current: maximum current at which the device will not trip at 25℃ still air. IT=Trip current: minimum current at which the device will always trip at 25℃ still air. Vmax=Maximum voltage device can withstand without damage at rated current. Imax=Maximum fault current device can withstand without damage at rated voltage. Ttrip=Maximum time to trip(s) at assigned current. Pdtyp=Typical amount of power dissipated by the device when in state air environment. Rmin=Minimum device resistance at 25℃ prior to tripping. Rmax=Maximum device resistance at 25℃ prior to tripping. R1max=Maximum device resistance measured in the nontripped state 1 hour post reflow.

HX恒讯HENGXUN PTC保险丝过流器件由原厂授权代理分销经销通路供应商一级代理分销经销通路供应商，华南地区方案商，提供产品应用推广，提供产品选型设计，以及售后服务，提供产品选型以及电路应用整改方案设计，欢迎联系我们KOYUELEC光与电子，电话075582574660 82542001 邮箱lily@szkoyu.com joshua@szkoyu.com谢谢惠顾~
