Create RF Circuit Object to Represent an RLCG Transmission Line

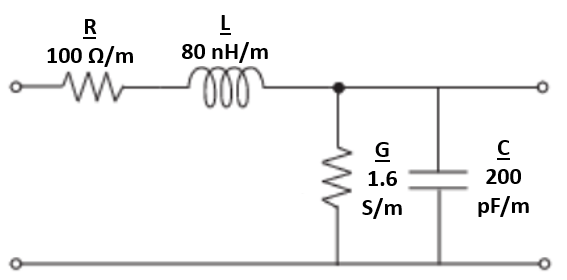

Create a txlineRLCGLine object to represent a RLCG transmission line. This example uses Name-Value pairs to implement the parameters in the RLCG transmission line shown in figure 1 [1].

Figure 1: RLCG transmission line.

ckt1 = txlineRLCGLine('R',100,'L',80e-9,'C',200e-12,'G',1.6);

Clone Circuit Object

Use the clone function to make a copy of the transmission line object.

ckt2 = clone(ckt1)

ckt2 =

txlineRLCGLine: RLCGLine element

Name: 'RLCGLine'

Frequency: 1.0000e+09

R: 100

L: 8.0000e-08

C: 2.0000e-10

G: 1.6000

IntpType: 'Linear'

LineLength: 0.0100

Termination: 'NotApplicable'

StubMode: 'NotAStub'

NumPorts: 2

Terminals: {'p1+' 'p2+' 'p1-' 'p2-'}

Cascade Two Circuit Objects

Use the circuit object to cascade the two transmission lines.

ckt = circuit([ckt1,ckt2]);

Analyze and Plot S-Parameter Data

Use the sparameters object to analyze the cascadeed transmission line in the frequency domain.

freq = linspace(0,10e9);

ckt_sparameters = sparameters(ckt,freq);

Use the smithplot method to plot the object's S11 on a Smith chart®.

figure

smithplot(ckt_sparameters,[1,1],'LegendLabels','S11 Original')

Write Data to S2P File

Use the rfwrite function to write the data to a file.

workingdir = tempname;

mkdir(workingdir);

filename = fullfile(workingdir,'myrlcg.s2p');

if exist(filename,'file')

delete(filename)

end

rfwrite(ckt_sparameters,filename);

Compare Data

Read the data from the file myrlcg.s2p into a new sparameters object and plot input reflection coefficient, S11 on a Smith chart. Visually compare the 'S11 original' and 'S11 from S2P' to confirm that the data matches.

compare_ckt = sparameters(filename);

figure

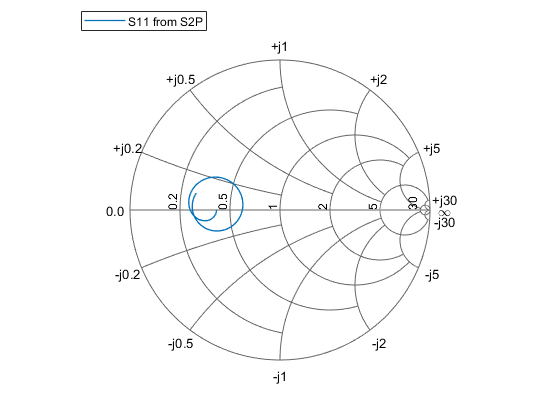

smithplot(compare_ckt,[1,1],'LegendLabels','S11 from S2P')

[1] M. Steer, "Transmission Lines," in Microwave and RF Design: Transmission Lines. vol. 2, 3rd ed. Raleigh, North Carolina, US: North Carolina State University, 2019, ch. 2, sec. 2, pp.58.
