ArcGIS API for JS 3.x测量工具：实现距离与面积测量

阅读数 18

备注：本文的所有的demo都是基于前端react框架编写，为了demo完成性，会尽量完整，其他框架基本页面操作因框架而异，主要关注GIS部分功能即可，esriloader是es6引api包工具，正常用dojo引包即可。

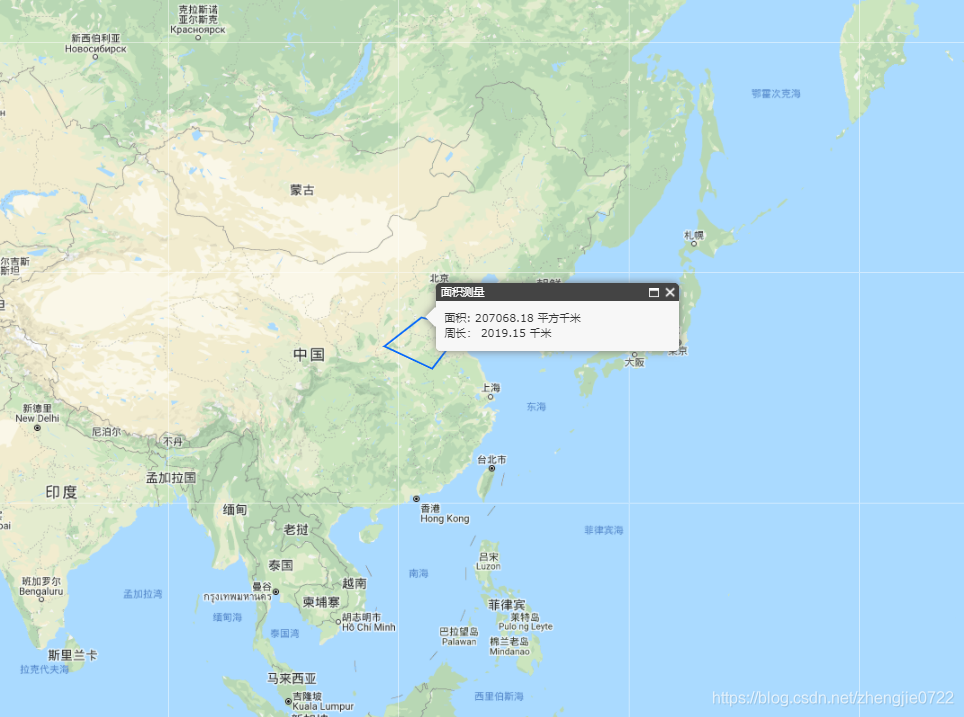

距离测量和面积测量是GIS项目中必不可少的工具，arcgis api 3.x中有对应的接口实现测量的功能。具体的实现方式如下。

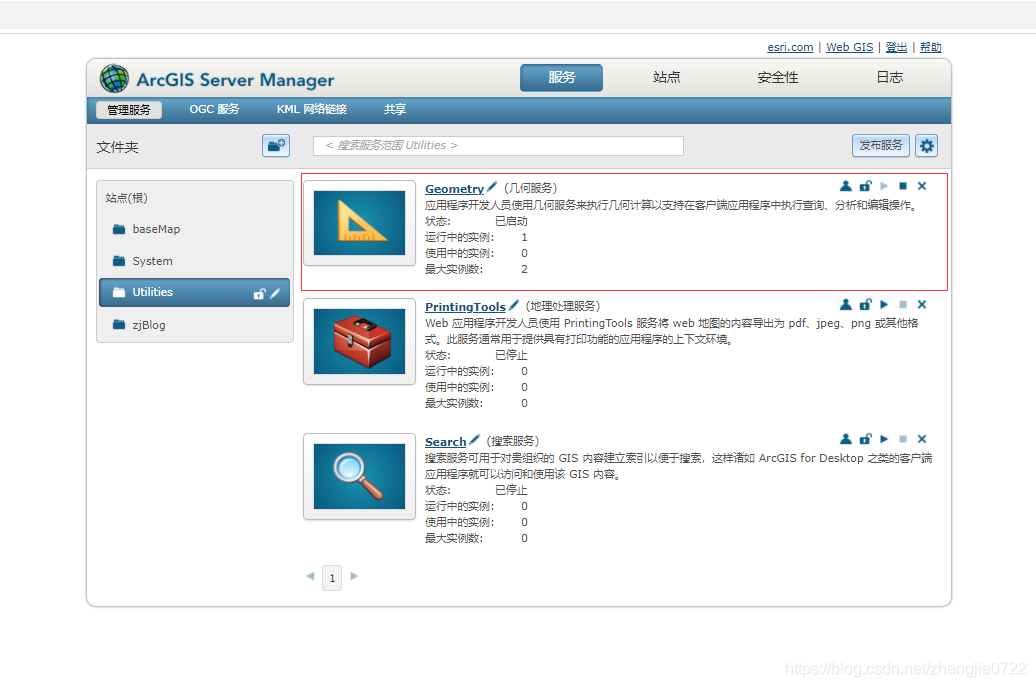

（1） arcgis api 3.x的测量工具是基于 arcgis server 的几何服务(GeometryService)实现的，首先我们得确保服务器安装了arcgis server，并去站点管理页面启动GeometryService服务。

（2）加载底图、加载测量绘制图层、定义弹框

import React, { Component } from 'react'import esriLoader from 'esri-loader'import {  Menu, Dropdown, Icon, Button } from 'antd' export default class InitMap extends Component {  constructor (props) {    super(props)    this.allBaseLayer = [], // 底图数组    this.initCenter = [119, 34] // 初始化中心经纬度    this.initZoom = 4 // 初始化缩放级别  }   state = {    mapView: {} // 地图对象  }   componentDidMount () {    // 初始化地图    this.initMap()  }   /** * 初始化地图 */  initMap = () => {    const mapOption = {      url: 'https://js.arcgis.com/3.33/'    }    esriLoader      .loadModules(        [          'esri/map',          'esri/layers/googleLayer',          'esri/toolbars/draw',          'esri/layers/GraphicsLayer',          'esri/dijit/Popup',          'dojo/dom-construct'        ],        mapOption      )      .then(([ map, googleLayer, Draw, GraphicsLayer, Popup, domConstruct ]) => {        this.popup = new Popup(null, domConstruct.create('div'))        const mapView = new map('mapContent', {          logo: false,          slider: false,          showAttribution: false,          showLabels: true,          zoom: this.initZoom,          center: this.initCenter,          infoWindow: this.popup,          minZoom: 2, // 最小空间等级          maxZoom: 18 // 最大空间等级        })         // 定义图层        const googleDigitalLayer = new googleLayer({          id: 'google_road',          layertype: 'road',          visible: true        })         // 测量绘制图层        this.measureGraphicsLayer = new GraphicsLayer({          id: 'measureGraphicsLayer'        })        // 测量绘制工具        this.messureDraw = new Draw(mapView)        mapView.addLayer(googleDigitalLayer)        mapView.addLayer(this.measureGraphicsLayer)        this.setState({          mapView        })      })  }   render () {    const mapStyle = {      width: '100%',      height: '100%'    }    const { codes, mapView } = this.state    return (      <div className="page-content">        <div id="mapContent" className="map-content" style={mapStyle}></div>>        <Toolbar mapView={mapView} popup={this.popup} messureDraw={this.messureDraw} />      </div>    )  }}

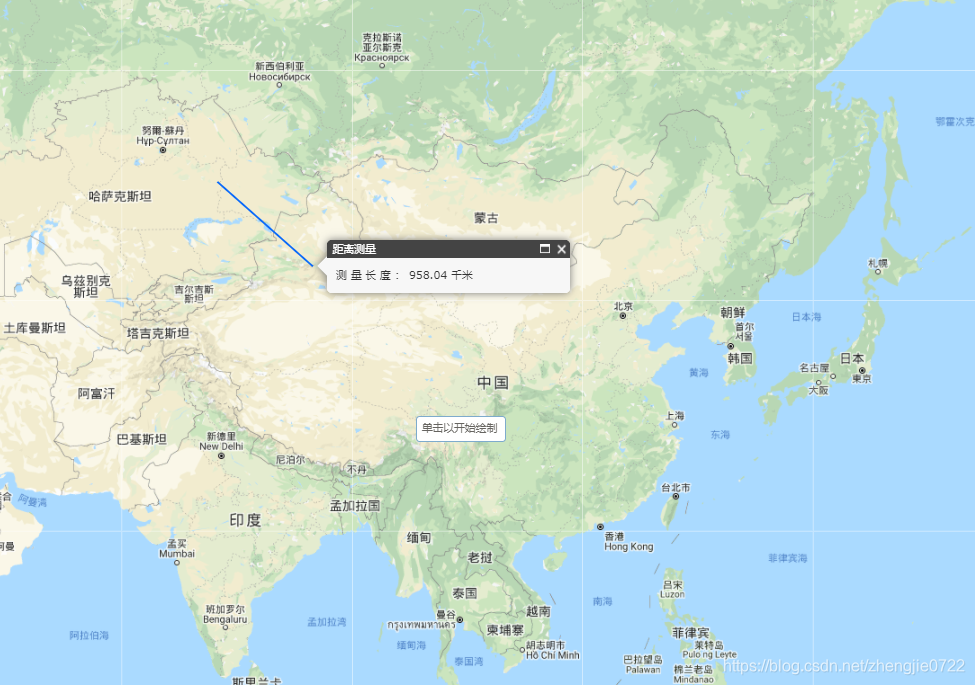

（3）实现测量功能

function Toolbar (props) {  // 底图数组属性  const { mapView, popup, messureDraw } = props  const toolbarStyle = {    position: 'absolute',    right: '1rem',    top: '0.2rem',    zIndex: 999  }  /** * 执行框选 * @param {*} type */  const measureClick = ({ key }) => {    esriLoader      .loadModules([        'esri/toolbars/draw',        'esri/symbols/SimpleLineSymbol',        'esri/graphic',        'esri/tasks/GeometryService',        'esri/tasks/LengthsParameters',        'esri/tasks/AreasAndLengthsParameters',        'esri/SpatialReference',        'esri/geometry/Point',        'esri/Color',        'esri/geometry/webMercatorUtils'      ])      .then(([ Draw, SimpleLineSymbol, Graphic, GeometryService, LengthsParameters, AreasAndLengthsParameters, SpatialReference, Point, Color, WebMercatorUtils ]) => {        // 测量绘制图层        const measureGraphicsLayer = mapView.getLayer('measureGraphicsLayer')        // 清除绘制图层        measureGraphicsLayer.clear()        // 弹框隐藏        popup.hide()        // 判断测量类型        switch (key) {          case 'length':            messureDraw.activate(Draw.POLYLINE)            break          case 'area':            messureDraw.activate(Draw.POLYGON)            break          case 'clear':            messureDraw.deactivate()            break          default:            return        }         let measuregeometry        // 绘制结束事件        messureDraw.on('draw-end', (res) => {          const geometry = res.geometry          mapView.enableMapNavigation()          drawMeatureGraphic(geometry)        })         // 绘制测量的图形        function drawMeatureGraphic (geometry) {          measureGraphicsLayer.clear()          let symbol          switch (geometry.type) {            case 'polyline':              symbol = new SimpleLineSymbol(                SimpleLineSymbol.STYLE_SOLID,                new Color([8, 105, 250]),                2              )              break            case 'polygon':              symbol = new SimpleLineSymbol(                SimpleLineSymbol.STYLE_SOLID,                new Color([8, 105, 250]),                2              )              break            default:              break          }           const graphic = new Graphic(geometry, symbol)          measureGraphicsLayer.add(graphic)          excuteMeasure(geometry)        }         // 执行图形计算        function excuteMeasure (geometry) {          const isMercator = geometry.spatialReference.isWebMercator()          geometry = isMercator ? WebMercatorUtils.webMercatorToGeographic(geometry) : geometry          measuregeometry = geometry          const geometryService = new GeometryService('http://localhost:6080/arcgis/rest/services/Utilities/Geometry/GeometryServer')          if (geometry.type === 'polyline') {            // 距离测量            const lengthParams = new LengthsParameters()            lengthParams.polylines = [geometry]            lengthParams.lengthUnit = GeometryService.UNIT_METER            // lengthParams.geodesic = true;            lengthParams.calculationType = 'preserveShape'            geometryService.lengths(lengthParams)            lengthParams.polylines[0].spatialReference = new SpatialReference(4326)            geometryService.lengths(lengthParams)            geometryService.on('lengths-complete', outputDistance)          } else if (geometry.type === 'polygon') {            // 面积测量            const areasAndLengthParams = new AreasAndLengthsParameters()            areasAndLengthParams.lengthUnit = GeometryService.UNIT_METER            areasAndLengthParams.areaUnit = GeometryService.UNIT_SQUARE_METERS            const outSR = new SpatialReference({ wkid: 4326 })            geometryService.project([geometry], outSR, function (geometry) {              geometryService.simplify(geometry, function (simplifiedGeometries) {                areasAndLengthParams.polygons = simplifiedGeometries                areasAndLengthParams.polygons[0].spatialReference = new SpatialReference(4326)                geometryService.areasAndLengths(areasAndLengthParams)              })            })            geometryService.on('areas-and-lengths-complete', outputAreaAndLength)          }        }         // 距离测量结果        function outputDistance (res) {          if (parseInt(String(res.result.lengths[0])) !== 0) {            let length = Number(res.result.lengths[0])            length = length > 1000 ? (length / 1000).toFixed(2) + ' 千米' : length.toFixed(2) + ' 米'            const curX = measuregeometry.paths[0][measuregeometry.paths[0].length - 1][0]            const curY = measuregeometry.paths[0][measuregeometry.paths[0].length - 1][1]            const curPos = new Point(              curX,              curY,              new SpatialReference({ wkid: 4326 })            )            popup.setTitle('距离测量')            popup.setContent(              ' 测 量 长 度 ： ' + length            )            popup.show(curPos)          }        }         // 面积测量结果        function outputAreaAndLength (res) {          let area = Number(res.result.areas[0])          let length = Number(res.result.lengths[0])          area = area > 1000000 ? (area / 1000000).toFixed(2) + ' 平方千米' : area.toFixed(2) + ' 平方米'          length = length > 1000 ? (length / 1000).toFixed(2) + ' 千米' : length.toFixed(2) + ' 米'          const pointXY = measuregeometry.rings[0][0]          const curPos = new Point(            pointXY[0],            pointXY[1],            new SpatialReference({ wkid: 4326 })          )          popup.setTitle('面积测量')          const content = `面积: ${area}</br> 周长： ${length} `          popup.setContent(content)          popup.show(curPos)        }      })  }  const measure = (    <Menu onClick={measureClick} className="layerClass">      <Menu.Item key="length">测量距离</Menu.Item>      <Menu.Item key="area">测量面积</Menu.Item>      <Menu.Item key="clear">清除</Menu.Item>    </Menu>  )  return (    <div className="toolbar" style={toolbarStyle}>      <Dropdown overlay={measure} trigger={['click']}>        <span>          <Button>测量工具</Button>          <Icon type="down" />        </span>      </Dropdown>    </div>  )}
