CATIA二次开发：查找点与面的代码实现（Label、ListBox、TextBox、右上角关闭失效、VB第一个小程序）

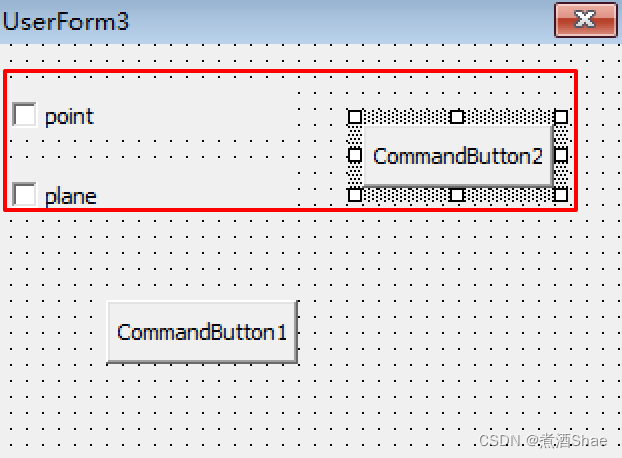

查找点和面

Private Sub CommandButton2_Click()  '查找点和面

Dim productDocument1 As PartDocument '或ProductDocument
Set productDocument1 = CATIA.ActiveDocument

Set selection1 = productDocument1.Selection

If (PointCheck.Value = flase And PlaneCheck.Value = True) Then
selection1.Search "CATPrtSearch.Plane,all"
End If

If (PointCheck.Value = True And PlaneCheck.Value = False) Then
selection1.Search "CATPrtSearch.Point,all"
End If

If (PointCheck.Value = True And PlaneCheck.Value = True) Then
selection1.Search "(CATPrtSearch.Plane+CATPrtSearch.Point),all"
End If

End Sub

代码 添加部件，label

Set Label = UserForm3.Controls.Add("Forms.Label.1")'要用具体的userfom1,2,3这种，不能用userform
Label.Caption = "ffffff"
Label.Left = 0
Label.Font.Size = 20
Label.Top = 7.5
Label.Width = 80
Label.Height = 30
CATIA.Visible = False

listbox用数组添加元素
